    Precision Cutter  PC-200B 2

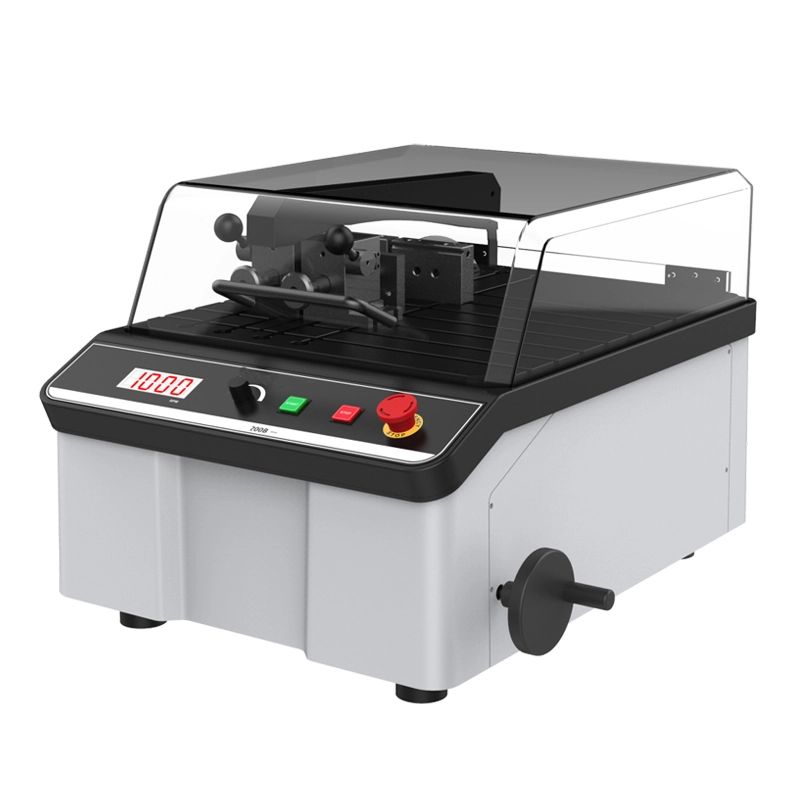

    The PC-200B is a tabletop manual precision sectioning saw. This is a versatile cutting machine designed for sectioning circuit boards and a variety of other sample cutting applications, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc.

    Product Feature


    ◆ Powerful DC motors with high torque

    ◆ Variable speed. Max speed can be customized

    ◆ Blade feed: manual

    ◆ Magnetic safety switch. The blade can stop immediately once the cover is open

    ◆ Hard anodized aluminum table with T-slots. Easy to change the vises

    ◆ Aluminum fast cam locking vises (left and right)

    ◆ Composites support cover by integral molding, anti-rust

    ◆ Transparent top cover, easy to observe samples

    ◆ Built-in wheel cooling



    Specification



    Description

    PC-200B

    Blade Feed

    Manual

    Blade(mm)

    200*12.7*0.8

    Blade speed (rpm)

    500-3000, or   customized

    Table Dimensions (WxD,mm)

    368*424

    DC Motor

    600W

    Power

    110/220V AC,   50-60Hz, 1 Phase

                                                                                             Accessories

    Diamond Blade

    Alumina Blade

    SiC blade

    Fast Cam Locking   Vises

    Vertical Clamping   vise

    X-Feed Fixture

    Cutting Vise in longitude direction for screws, bars, etc

    Cutting Fluid

    ●Standard○Option
