professional ultrasonic portable hardness tester wholesale for rod

Company Advantages
1. Sinowon ultrasonic portable hardness tester is produced in line with high quality requirements. It has passed a range of quality tests, including colorfastness, stability, strength, and aging, and the tests are done to meet physical and chemical properties requirements for furniture. It is well recognized by more than 5000 customers
2. Sinowon Innovation Metrology Manufacture Limited. will establish and improve the process assurance system to provide customers with personalized professional ultrasonic portable hardness tester products and services. A team of experienced talents is gathered to support the product sales
3. This product has a precise dimension. It is processed by the advanced CNC cutting machine which features high precision and accuracy. More than 10,000 pcs have been delivered and installed

1. Brief Introduction

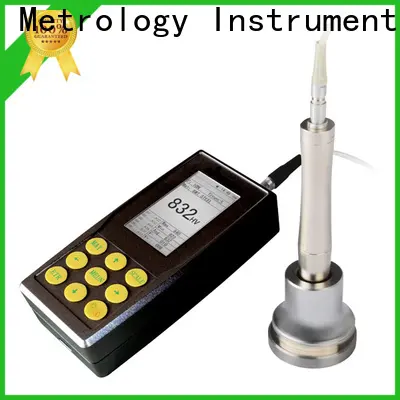

SVR-110 is a special manual portable durometer with manual probe HP-1K by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing at the spot

SVR-110 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.

SVR-110 conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.



2. Product Features:

2.1High Accuracy

HV: ±3% HV，HR:±1.5HR, Conform internal standard ASTM A1038, DIN50159

2.2Microscopic Indentation

The indention size of SVR-110 is same with HV1 of micro hardness testing in one specimen, it is too small to observe by eyes, it is a non-destructive method for the specimen.

2.3Qucik Measurement

In 2 seconds to get hardness value, working efficiency is 60 times higher than normal bench hardness testers.



3. Technical Specification

Product Name	Portable UCI Durometer
Model	SVR-110H
Code#	882-110
Testing force	Manual 10N
Hardness Range	HV 80-1599; HRC 20-70;
Accuracy	±3% HV; HR:±1.5HR
Measuring Scales	HV/HRC
Language	English, Chinese
Data Output	RS232
Data Saving	20-group calibration data, 1000-group measurement data
Working Conditions	Temp: -10℃~50℃; Humidity: 30%~80%
Power Supply	Rechargeable lithium battery，battery 4.2V,4800mAh
Rechargeable Voltage	AC220V/50Hz, 110V/60Hz



4. Standard delivery

Accessories	Code #	Accessories	Code #
SVR-110 Main unit	882-110H	10N manual probe	882-241
Rockwell test block	882-641	Probe cable	882-801
USB Recharger	882-851	USB cable	852-810
Carrying case	882-901	Carrying   case	882-901
Operation   manual	SVR-110H	Warranty   card	SVR-110H
Quality certificate	SVR-110H	Packing list	SVR-110H







Company Features
1. Owing to the remarkable competence in developing and manufacturing portable hardness tester machine , Sinowon Innovation Metrology Manufacture Limited. is recognized as a qualified player in the market.
2. The factory has highly efficient production lines and lasted advanced manufacturing facilities. These ensure that every production steps are well-controlled to guarantee the final product quality.
3. The customer service team at Sinowon Metrology Instrument always listens to customers' needs carefully and objectively. Welcome to visit our factory!
