    Pen-style Leeb Hardness Tester 2

    Introduction

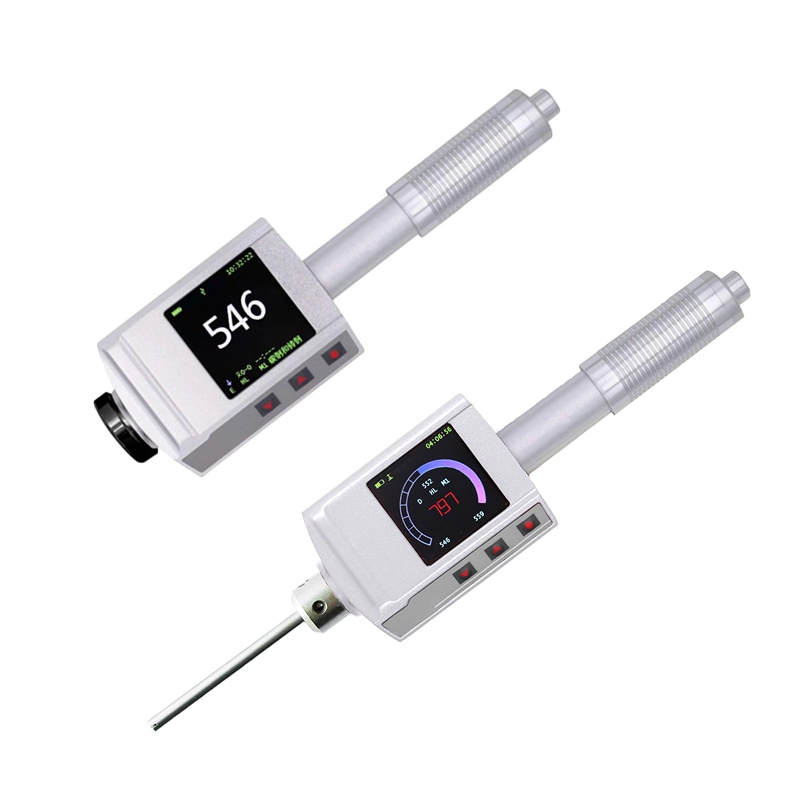

     New Leeb hardness tester MH-500 with durable metal housing , D&DL 2-in-1 probe optional MH-500 is an advanced state-of-the-art palm sized metal hardness tester with many new features.

     It still used our patent dual-coil technology which makes it to have extraordinary accuracy:+/-4HL with high contrast colour TFT display and durable metal housing.

     It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colort for easy visual distinguish.

     It can download measuring data to PC and printout to mecro-printer by USB port and wirelessly with internal wireless module.

     The battery can be charged simply from USB port , also it has a customer re-calibration and statistics function.


    Product Feature


     Integrated design , easy operation

     Durable metal housing

     TFT320*320 colour display

     Wide operation environment : -20ºC-70ºC

     High accuracy:+/-4HL (or 0.5% @HL800)

     Auto compensate error for different impact direction

     Moving bar-graph display

     Two evaluation modes: By limit / Deviation

     Two Calibration modes:Coincident / Independent

     Multi-printing mode

     Four display styles

     Sound reminder

     Up to 10 kinds of menu language

     D & DL two in one probe

     It can connect to computer by USB or Bluetooth

     USB and Bluetooth interface, it can connect micro-printer wirelessly

     3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

     Statistics value can be calculated automatically

     With strength conversion value

     Power on / off automatically or manually

     Packed in rigid carrying case


    Specification


    Product Name

    Pen-Style Leeb Hardness Tester

    Model

    MH-500

    Code#

    852-151

    Accuracy

    ±0.5% @ HL=800 / ±4HL

    Display

    High contrast color TFT 320*320

    Hardness scale

    HL / HRC / HRB / HB / HV / HS / HRA /σb

    Measuring range

    HL100~960 / HRC0.9~79.2 / HRB1.2~140/ HB1~1878/   HV1~1698 / HS0.5~128/ HRA7~88.5 / σb(rm)24~6599N/mm2

    Probe

    D/ D-DL 2-in-1 (internal)

    Materials and curves

    11 common metal materials, 75 curves

    Memory

    30/60 files on request , 100 data for each file ,   can be saved and re-readable

    Statistics function

    Average /Max. /Min. /S.value

    Re-calibration

    Coincident /Independent

    Indicator

    Low battery

    Language

    Chinese,English,Traditional Chinese, Russian, German,French, Italian,   Turkish, Spanish,Korean

    Interface

    USB/Bluetooth to PC for transfering data , wireless printing , USB for   charging

    Power on/off

    Auto/Manual

    Power supply

    3.7V Li-ion rechargeable battery

    Working environment

    -20°c~+70°c

    Dimension (mm)

    148*44*22

    Net weight (g)

    115

    Standards

    Conforming to ASTM A956, DIN 50156, GB/T   17394-1998
