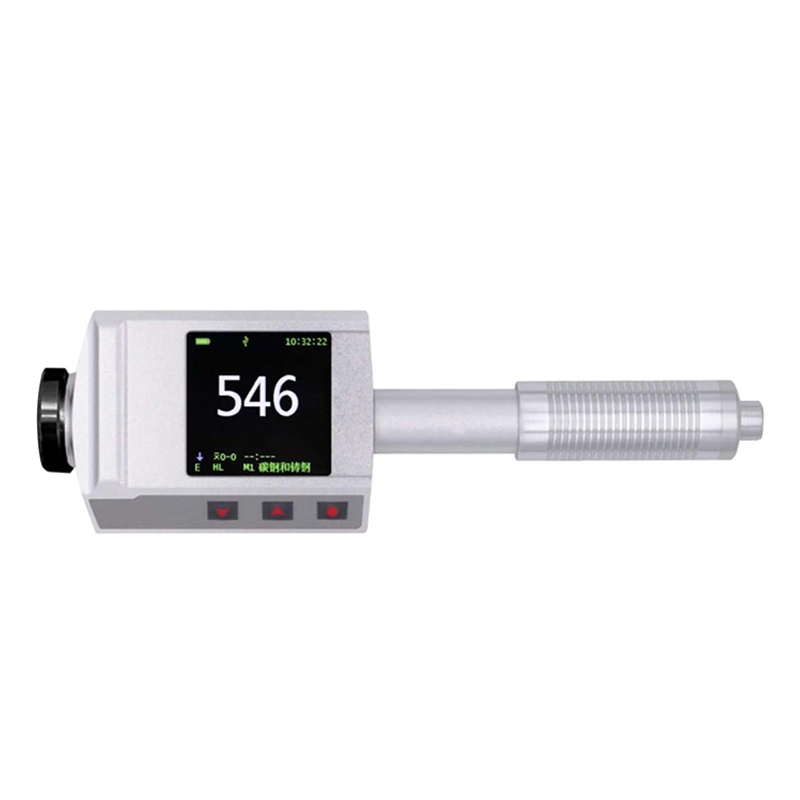

MH-500D Pocket D-Type Leeb Hardness Tester

Model:

MH-500D

Code#:

852-156D

Accuracy:

±0.5% @ HL=800 / ±4HL

Warranty:

15-month

Delivery Time:

15-day

Standard:

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Inquiry

Write a Review

MH-500D Pocket D-Type Leeb Hardness Tester 2

Introduction

◆ New Leeb hardness tester MH-500 with durable metal housing .

◆ It still used our patent dual-coil technology which makes it to have extraordinary accuracy:+/-4HL with high contrast colour TFT display and durable metal housing.

◆ It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colort for easy visual distinguish.

◆ It can download measuring data to PC and printout to mecro-printer by USB port and wirelessly with internal wireless module.

◆ The battery can be charged simply from USB port , also it has a customer re-calibration and statistics function.

Product Feature

◆ Integrated design , easy operation

◆ Durable metal housing

◆ TFT320*320 colour display

◆ Wide operation environment : -20ºC-70ºC

◆ High accuracy:+/-4HL (or 0.5% @HL800)

◆ Auto compensate error for different impact direction

◆ Moving bar-graph display

◆ Two evaluation modes: By limit / Deviation

◆ Two Calibration modes:Coincident / Independent

◆ Multi-printing mode

◆ Four display styles

◆ Sound reminder

◆ Up to 10 kinds of menu language

◆ D probe

◆ It can connect to computer by USB or Bluetooth

◆ USB and Bluetooth interface, it can connect micro-printer wirelessly

◆ 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

◆ Statistics value can be calculated automatically

◆ With strength conversion value

◆ Power on / off automatically or manually

◆ Packed in rigid carrying case

Specification

Product Name	Pocket D-Type Leeb Hardness Tester
Model	MH-500D
Code#	852-156D
Accuracy	±0.5% @ HL=800 / ±4HL
Display	High contrast color TFT 320*320
Hardness scale	HL / HRC / HRB / HB / HV / HS / HRA /σb
Measuring range	HL100~960 / HRC0.9-~79.2 / HRB1.2~140/ HB1~1878/ HV1~1698 / HS0.5~128/ HRA7~88.5 / σb(rm)24~6599N/mm2
Probe	D probe
Materials and curves	11 common metal materials, 75 curves
Memory	30/60 files on request, 100 data for each file, can be saved and re-readable
Statistics function	Average /Max. /Min. /Single Value
Re-calibration	Coincident /Independent
Indicator	Low battery
Language	English, Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish
Interface	USB/Bluetooth to PC for transferring data, wireless printing, USB for charging
Power on/off	Auto/Manual
Power supply	3.7V Li-ion rechargeable battery
Working environment	-20°c~+70°c
Dimension (mm)	1484422
Net weight (g)	115
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
