MH-500G Pocket G-Type Leeb Hardness Tester

Model:

MH-500G

Code#:

852-156G

Accuracy:

±0.3% @ HL=800 / ±4HL

Warranty:

15-month

Delivery Time:

15-day

Standard:

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Certificate:

Inquiry

Write a Review

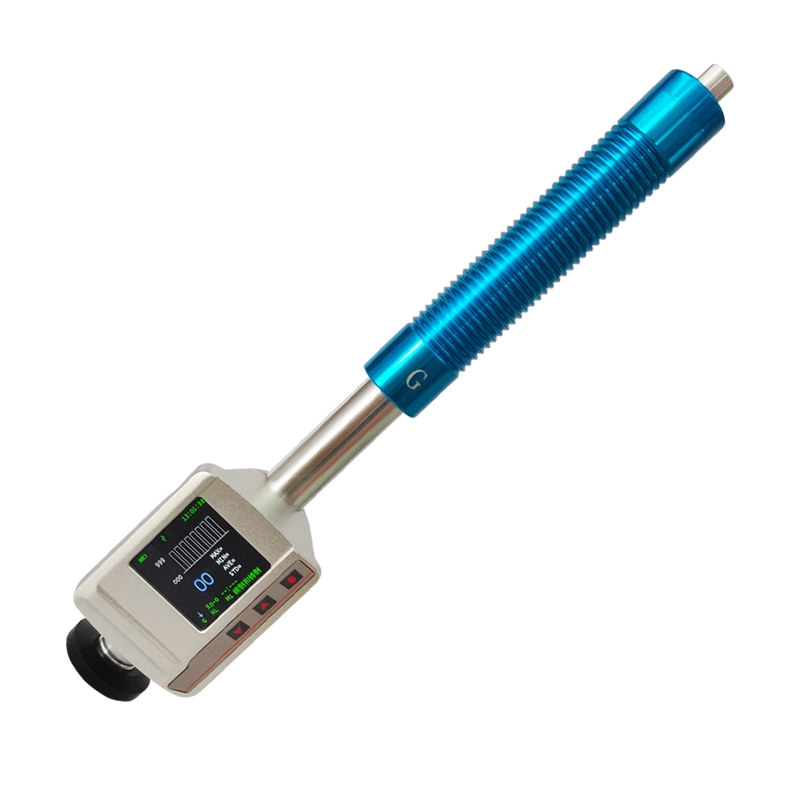

MH-500G Pocket G-Type Leeb Hardness Tester 2

Introduction

MH-500G is an advanced state-of-the-art palm sized metal hardness tester with many new features. It still used our dual-coil technology which makes MH-500G to have extraordinary accuracy: +/-2 HL (or 0.3% @HL800) with high contrast colour TFT display and durable metal housing. Equipped with impact device G. It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colour for easy visual distinguish. MH-500G can download measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module. The battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.

Product Feature

◆ Integrated design , easy operation

◆ Durable metal housing

◆ TFT320X320 colour display

◆ Diamond ball tip

◆ Wide operating environment: -20oC-70oC

◆ High accuracy: +/-4 HL (or 0.3% @HL800)

◆ Auto compensate error for different impact direction

◆ Moving bar-graph display

◆ Two evaluation modes: By Limit / Deviation

◆ Two calibration modes: Coincident / Independent

◆ Multi-printing mode

◆ Four display styles

◆ Sound reminder

◆ Up to 10 kinds of menu language

◆ Date and time function

◆ It can connect to computer by USB or Bluetooth

◆ USB and Bluetooth inter face, it can connect micro-printer wirelessly

◆ 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

◆ Statistics value can be calculated automatically

◆ With strength conversion value

◆ Power on/off automatically or manually

Specification

Product Name	Pocket G-Type Leeb Hardness Tester
Model	MH-500G
Code#	852-156G
Principle	Leeb hardness measurement
Accuracy / Repeatability	±0.3% @ HL=800 / ±4HL
Display	High contrast color TFT 320 x 320
Hardness Scale	HLD/HRC/HRB/HB/HV/HSD/HRA/σb
Measuring Range	HL100~960 / HRC0.6~78 / HRB3~140 / HB24~1140 / HV24~1360 HS3~120 / HRA1~88 /σb (rm)24~3800N/mm²
Probe	G Probe
Memory	30 files, 100 data for each file, can be saved and re-readable
Statistics Function	Average / Max. / Min. / S. value
Re-calibration	Coincident / Independent
Indicator	Low battery
Language	English, Chinese
Interface	USB/Blue tooth to PC for transferring data, wireless printing, USB for charging
Power on/off	Auto / Manual
Power Supply	3.7V Li-ion rechargeable battery
Working Environment	-20~+70°C
Dimension (mm)	253x47x34(mm)
Net weight (g)	275g
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
