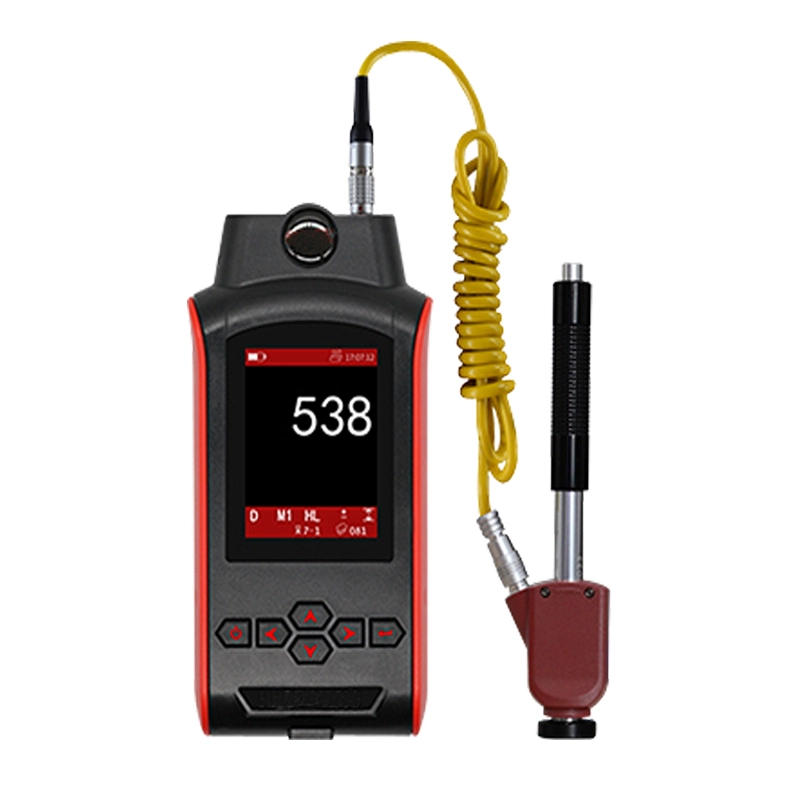

SH-660 Portable Leeb Hardness Tester

Model:

SH-660

Code#:

852-166

Accuracy:

±4HL/HRC0.2 (0.3% @ HL=800)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Certificate:

Inquiry

Write a Review

SH-660 Portable Leeb Hardness Tester 2

Introduction

SH-660 is an innovation of Leeb hardness tester, which based on the new technology - dual-coil sensor inside probe. All probes worked with SH-660 are modularized digital probe, which gives more accurate hardness value. Besides, SH-660 can also work with our wireless probe and new RP reading probe as optional.

Product Feature

◆ Patent dual- coil technology

◆ All probe used with SH-660 are digital type

◆ Cost- effective with reading probe (optional)

◆ High repeatability accuracy: +/-4 HL (or 0.3% @HL800)

◆ High linear accuracy for any angles

◆ TFT color display

◆ Auto compensate error for different impact direction

◆ Powered by AA batter y or USB power supply

◆ The tester can be attrac ted to the work piece with magnetic base (optional)

◆ Statistics value can be calculated automatically

◆ Up to 10 kinds of menu language

◆ Data managing software on PC

◆ Power on/off automatically or manually

Specification

Product Name	Portable Leeb Hardness Tester
Model	SH-660
Code#	852-166
Principle	Leeb hardness measurement
Accuracy / Repeatability	±4HL/HRC0.2 (0.3% @ HL=800)
Display	High contrast color TFT 240 x 320
Hardness scale	HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range	HL170~960/ HRC1.3~74.7/ HRB1.2~139.7/ HB28~1027/ HV45~1221/ HS4.0~112.1/ HRA1.3~88.5/ MPa118~3315N/mm²
Probe	Digital probe D/C/DC/D+15/DL/E Wireless probe D/C/DC/D+15/DL/E (optional), Reading probe D (optional)
Materials and conversion curves	11 common metal materials, 75 curves
Memory	999 data
Interface	USB / Bluetooth (optional)
Statistics function	Average / Max. / Min. / S. value
Re-calibration	Allowed by user
Indicator	Low battery
Language	English, Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish
Power on/off	Auto / Manual
Power supply	AA alkaline battery / USB power supply
Working environment	-20oC~+70oC
Dimension (mm)	145x70x30
Net weight (g)	145g
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Software Introduction
