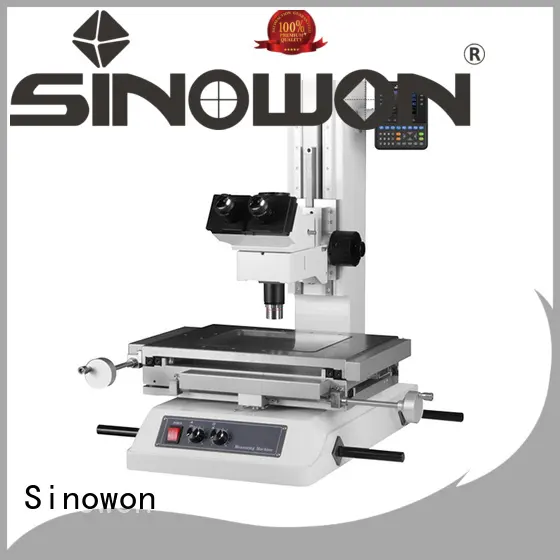

Sinowon approved toolmakers microscope with good price for soft alloys
Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Enterprise Strength
- Sinowon has a complete and mature service team to provide excellent services for customers and seek mutual benefit with them.
Product Comparison
Sinowon has the ability to meet different needs. hardness testing machines is available in multiple types and specifications. The quality is reliable and the price is reasonable.Sinowon's hardness testing machines has been further improved based on advanced technology, as reflected in the following aspects.
1. toolmakers microscope has been developed using tool microscope idea, which has some distinct characters, such as tool maker's microscope .
2. The product is characterized by electromagnetic compatibility. It has passed EMC tests in the aspects of conducted disturbances immunity, power interference, and immunity to induced voltages.
3. The product features easy operation. Its operating parameters can be easily changed to achieve different functions and performance.
4. Sinowon Innovation Metrology Manufacture Limited. spares no effort to pursue better solutions that suit its customers' needs.
Product Feature
◆ Bright field observation, clear and flare less obverse image, wide field of view;
◆ Long working distance objectives, up to optical 1000x magnification;
◆ Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
◆ The quick-release system, which is especially useful in long-stroke measurements;
◆ Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;
◆ Zero-set switches (X- and Y-axis) are also located near the stage feed handles;
Specification
| Microscope Model | STM-2015A | STM-3020A |
| Code # | 532-150 | 532-160 |
| X/Y-axis travel | 200x150mm | 300x200mm |
| Scale Resolution | 0.0005mm | |
| XY Stage Measuring Accuracy at 20ºC. | (2+L/200) μm L: measuring length | |
| Observation Image | Obverse image (Erect Image is available) | |
| Eyepiece Tube | Binocular Eyepiece: WF10/20 | |
| Objective Lens | Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x | |
| Contour Illumination | Adjustable LED | |
| Surface Illumination | Adjustable LED | |
| Z Axis Travel Range | Standard focus travel:150mm, 200mm is optional | |
| Z Axis Focusing | Manual focusing (Coarse/fine) | |
| XY Stage Floating Function | Quick release mechanism | |
| Display Unit Function | Zero setting, Direction switching, Data output via RS-232 | |
| Power Supply | AC220/50HZ; AC110V/60Hz | |
| Optional Accessories | High-Precision Rotary Table RT4(D:165mm), RT5(262mm) | |
| Digital Readout DP300 | ||
| Quickmeasuring Measuring Software QM2.0 | ||
| CCD adapter and CCD camera | ||
Optical Specification:
| Name | Objective | Eyepiece WF10/22 | |||||
| N.A. | W.D.(mm) | f(mm)’ | R(um) | ±▽p(um) | Magnification | Visual Field（mm） | |
| 5x | 0.15 | 11.6 | 40 | 2.1 | 16.3 | 50x | ¢4.4 |
| 10x | 0.3 | 6.3 | 20 | 0.9 | 3.1 | 100x | ¢2.2 |
| 20x | 0.4 | 10.3 | 10 | 0.69 | 1.8 | 200x | ¢1.1 |
| 50x | 0.8 | 2 | 4 | 0.34 | 0.4 | 500x | ¢0.44 |
| 100x | 0.8 | 1.96 | 2 | 0.34 | 0.2 | 100x | ¢0.22 |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is the world's largest producer of toolmakers microscope, with a magnificent tool microscope production.
2. With our excellent technology, Toolmakers Microscope has good quality and superior performance.
3. We keep mission in mind to create better measuring microscope with our professional spirit. Ask! Sinowon Innovation Metrology Manufacture Limited. aims to build a first-class toolmakers microscope company in China. Ask! Sinowon aims to produce the best toolmakers microscope to offer a better user experience. Ask! Thanks to the concept of toolmakers microscope, our products have been exported to different countries. Ask!
