Sinowon automatic Video measurement system design for measuring1

Company Advantages
1. The design of Sinowon vickers microhardness conversion is of professionalism. Its design mainly involves mechanical structure, spindles, and drive system, control and inspection systems, etc.
2. Because Video measurement system is really economical in price, it will have a bright future.
3. The Video measurement system shows great performance in vickers microhardness conversion and vickers hardness indenter .
4. Its features highlight the broad space of its application.
5. The market's forecasts indicate good market prospects for this product.

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Manually reading indentation, then input dialog length to calculate hardness value;

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

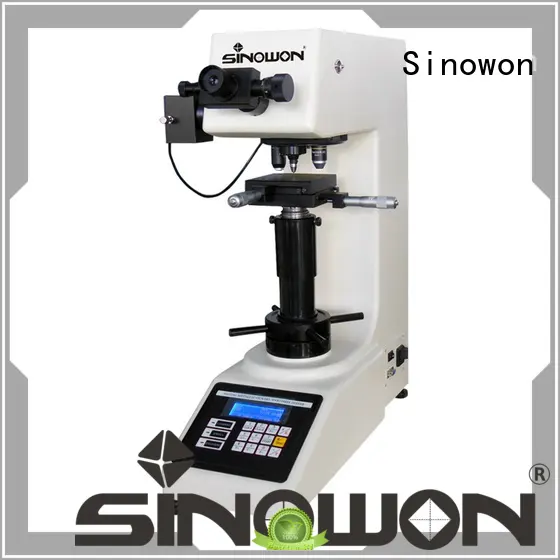

Product Name		Vickers hardness tester
Model		V-5	V-10	V-30	V-50
Code#		821-101	821-111	821-121	821-131
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x mechanical eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Widely recognized as a professional producer of Video measurement system, Sinowon Innovation Metrology Manufacture Limited. is highly reliable.
2. Staff working in Sinowon Innovation Metrology Manufacture Limited. are all well-trained.
3. Sinowon Innovation Metrology Manufacture Limited. adheres to the development concept of respecting life and the trend of development. Call now! The company's stated promise is ' To give the best service, make the best quality products'. We are working on cultivating a professional team of staff who can provide world-class customer service. Call now! We always insist on the responsibility of high quality. Call now!
