Sinowon Automatic vision measuring machine supplier for rod

Company Advantages
1. Sinowon non destructive hardness testing goes through serious testing. All tests are conducted in accordance with current national and international standards, for example, DIN, EN, NEN, NF, BS, RAL-GZ 430, or ANSI/BIFMA.
2. Due to its excellent properties like non destructive hardness testing, Automatic vision measuring machine is applied widely among best portable hardness tester field.
3. With so many advantages, the product is considered to have a wide range of market applications.
4. This product is increasingly used in the market due to its significant economic benefits.

1. Brief Introduction

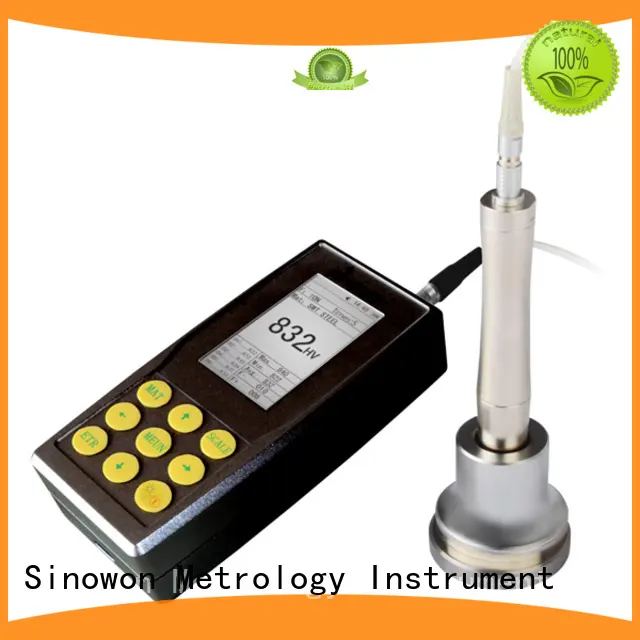

SVR-110 is a special manual portable durometer with manual probe HP-1K by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing at the spot

SVR-110 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.

SVR-110 conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.



2. Product Features:

2.1High Accuracy

HV: ±3% HV，HR:±1.5HR, Conform internal standard ASTM A1038, DIN50159

2.2Microscopic Indentation

The indention size of SVR-110 is same with HV1 of micro hardness testing in one specimen, it is too small to observe by eyes, it is a non-destructive method for the specimen.

2.3Qucik Measurement

In 2 seconds to get hardness value, working efficiency is 60 times higher than normal bench hardness testers.



3. Technical Specification

Product Name	Portable UCI Durometer
Model	SVR-110H
Code#	882-110
Testing force	Manual 10N
Hardness Range	HV 80-1599; HRC 20-70;
Accuracy	±3% HV; HR:±1.5HR
Measuring Scales	HV/HRC
Language	English, Chinese
Data Output	RS232
Data Saving	20-group calibration data, 1000-group measurement data
Working Conditions	Temp: -10℃~50℃; Humidity: 30%~80%
Power Supply	Rechargeable lithium battery，battery 4.2V,4800mAh
Rechargeable Voltage	AC220V/50Hz, 110V/60Hz



4. Standard delivery

Accessories	Code #	Accessories	Code #
SVR-110 Main unit	882-110H	10N manual probe	882-241
Rockwell test block	882-641	Probe cable	882-801
USB Recharger	882-851	USB cable	852-810
Carrying case	882-901	Carrying   case	882-901
Operation   manual	SVR-110H	Warranty   card	SVR-110H
Quality certificate	SVR-110H	Packing list	SVR-110H







Company Features
1. While making great efforts to promote Automatic vision measuring machine production, Sinowon applies advanced technology to make greater contributions to its development.
2. We have a factory featuring a good location, which provides easy access to customers, workers, materials, and so on. This will maximize our business opportunity while minimizing our costs and risks.
3. Our aim is to provide outstanding experiences by creating inspiring products that support the client’s objectives, build brand awareness and enhance market positioning. Contact us! Our business philosophy is to win the market through quality and service. All of our teams are working hard to create value for customers, no matter helping cut production costs or improving product quality. We hope to win their trust by doing these. We always make full preparations for customers. Contact us!
