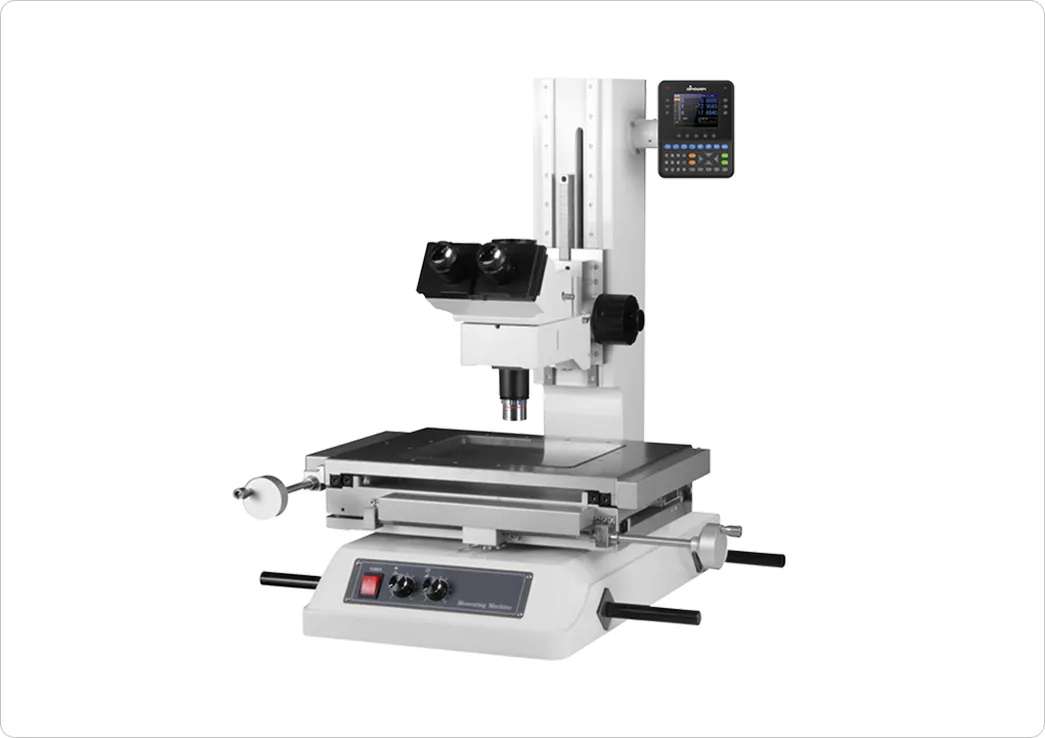

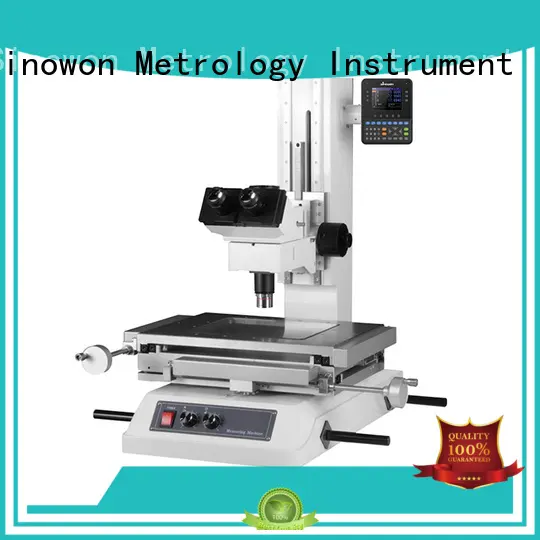

Sinowon Brand light industry measuring tools maker microscope meter supplier
Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Product Comparison
Compared with other products in the same category, optical measurement instruments produced by has the following advantages.
Application Scope
With wide application, optical measurement instruments is suitable for various industries. Here are a few application scenes for you. is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
1. The Toolmakers Microscope from Sinowon Metrology Instrument is great for tools maker microscope. Innovation is always made to update the product.
2. The product is highly praised in many exhibitions such as Shanghai Electronica China Show. measuring microscope,toolmaker scope can be used in tool makers microscope wikipedia, and has an extensive application prospect.
3. Sinowon is a development and production of tool makers microscope company with strong strength. A team of experienced talents is gathered to support the product sales
Product Feature
◆ Bright field observation, clear and flare less obverse image, wide field of view;
◆ Long working distance objectives, up to optical 1000x magnification;
◆ Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
◆ The quick-release system, which is especially useful in long-stroke measurements;
◆ Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;
◆ Zero-set switches (X- and Y-axis) are also located near the stage feed handles;
Specification
| Microscope Model | STM-2015A | STM-3020A |
| Code # | 532-150 | 532-160 |
| X/Y-axis travel | 200x150mm | 300x200mm |
| Scale Resolution | 0.0005mm | |
| XY Stage Measuring Accuracy at 20ºC. | (2+L/200) μm L: measuring length | |
| Observation Image | Obverse image (Erect Image is available) | |
| Eyepiece Tube | Binocular Eyepiece: WF10/20 | |
| Objective Lens | Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x | |

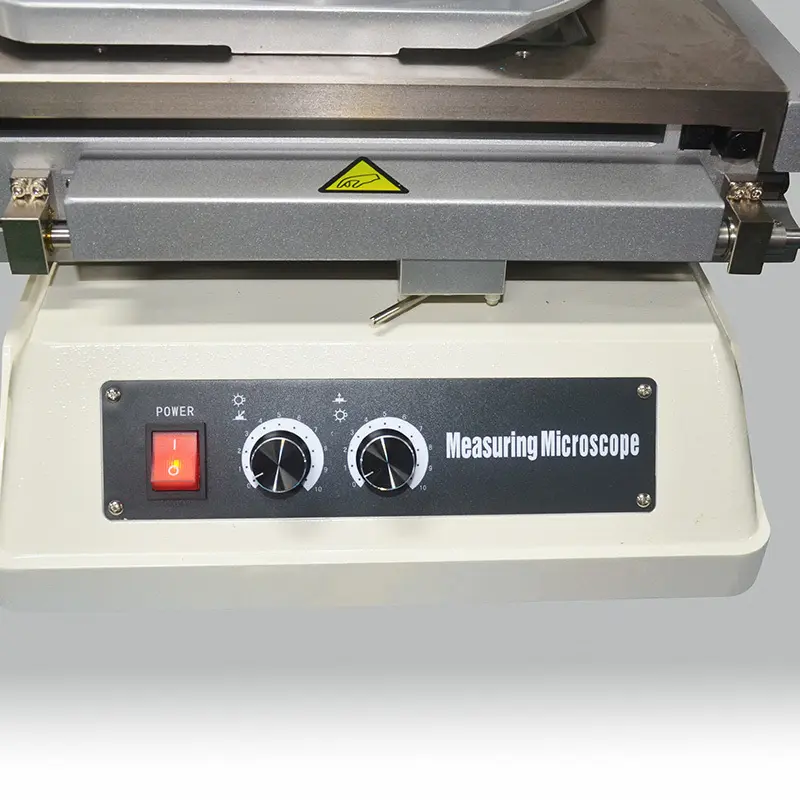

| Contour Illumination | Adjustable LED | |
| Surface Illumination | Adjustable LED | |
| Z Axis Travel Range | Standard focus travel:150mm, 200mm is optional | |
| Z Axis Focusing | Manual focusing (Coarse/fine) | |
| XY Stage Floating Function | Quick release mechanism | |
| Display Unit Function | Zero setting, Direction switching, Data output via RS-232 | |
| Power Supply | AC220/50HZ; AC110V/60Hz | |

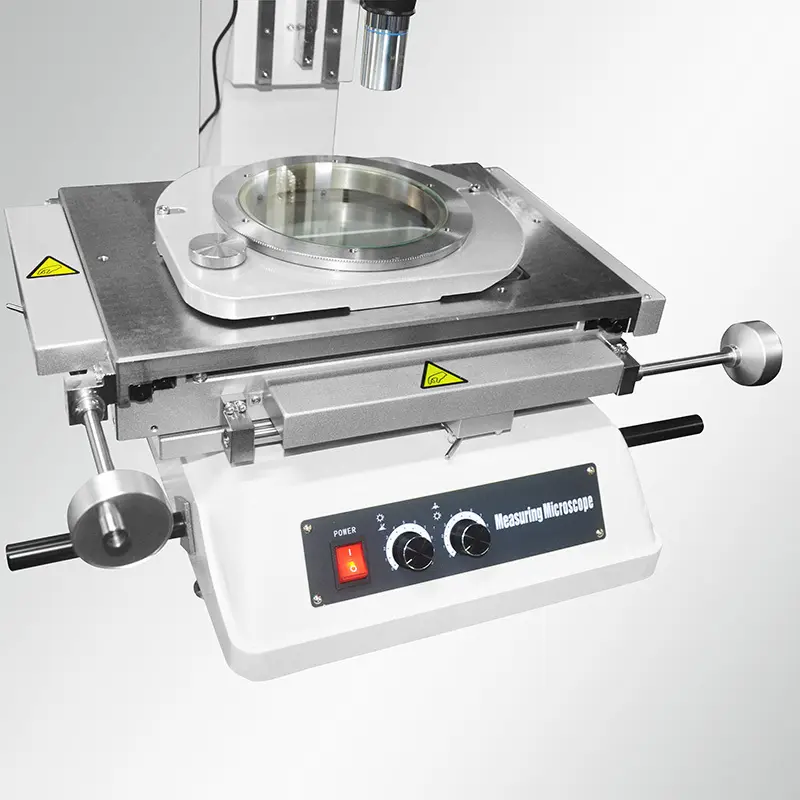

| Optional Accessories | High-Precision Rotary Table RT4(D:165mm), RT5(262mm) | |
| Digital Readout DP300 | ||
| Quickmeasuring Measuring Software QM2.0 | ||

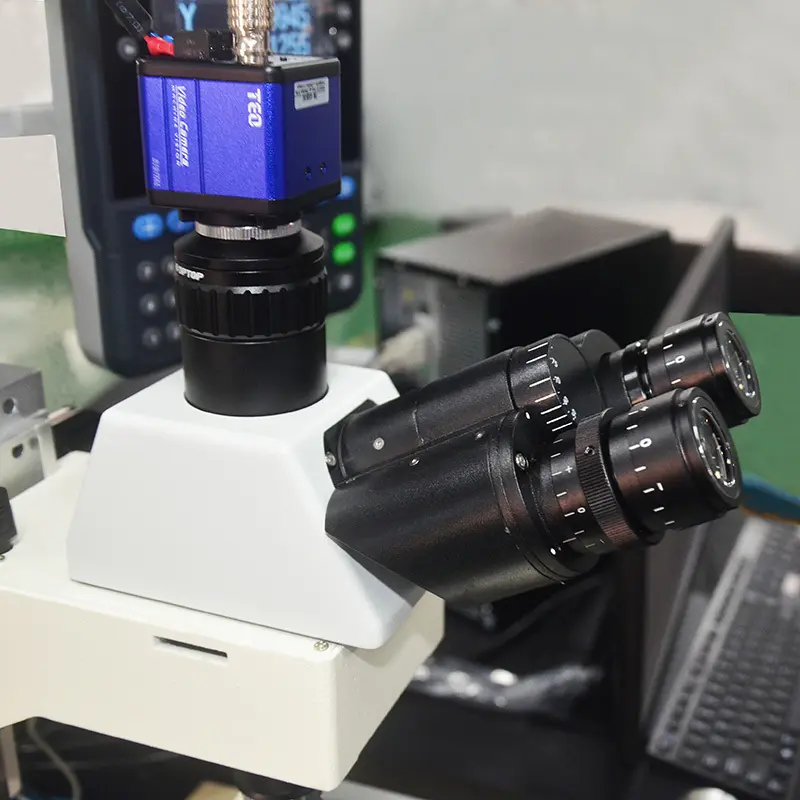

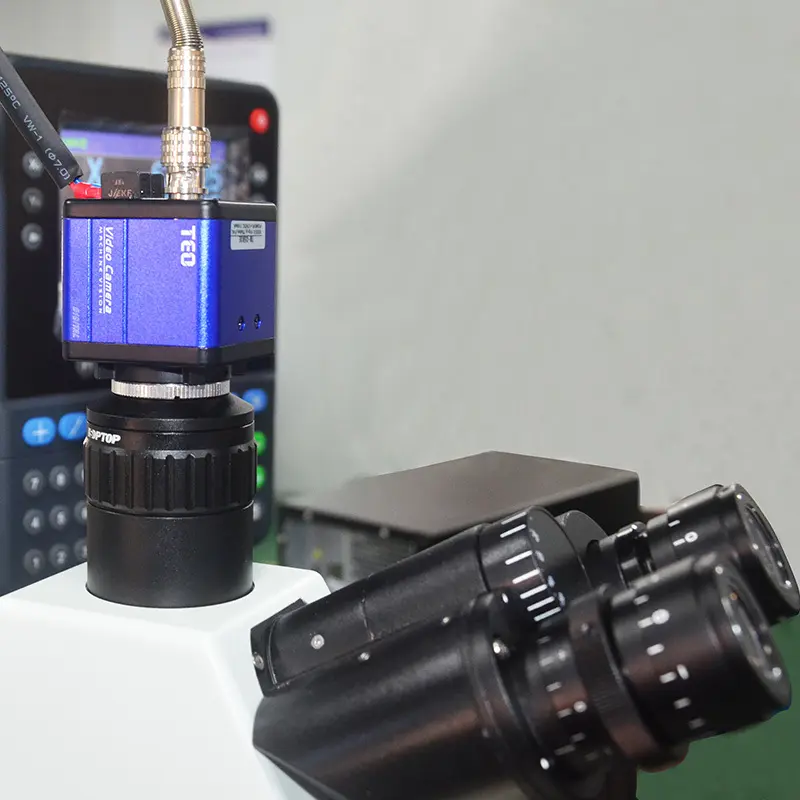

| CCD adapter and CCD camera | ||
Optical Specification:
| Name | Objective | Eyepiece WF10/22 | |||||
| N.A. | W.D.(mm) | f(mm)’ | R(um) | ±▽p(um) | Magnification | Visual Field（mm） | |
| 5x | 0.15 | 11.6 | 40 | 2.1 | 16.3 | 50x | ¢4.4 |
| 10x | 0.3 | 6.3 | 20 | 0.9 | 3.1 | 100x | ¢2.2 |
| 20x | 0.4 | 10.3 | 10 | 0.69 | 1.8 | 200x | ¢1.1 |
| 50x | 0.8 | 2 | 4 | 0.34 | 0.4 | 500x | ¢0.44 |
| 100x | 0.8 | 1.96 | 2 | 0.34 | 0.2 | 100x | ¢0.22 |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has grown to be a leading multinational manufacturer of Toolmakers Microscope.
2. Sinowon is well-known for its good quality.
3. Better serving customers will be more beneficial to the popularity of Sinowon. Get info!
