A professional manufacturer of measuring & testing equipment.

Sinowon brinell hardness from China for soft alloys 1
Sinowon brinell hardness from China for soft alloys 2
Sinowon brinell hardness from China for soft alloys 1
Sinowon brinell hardness from China for soft alloys 2

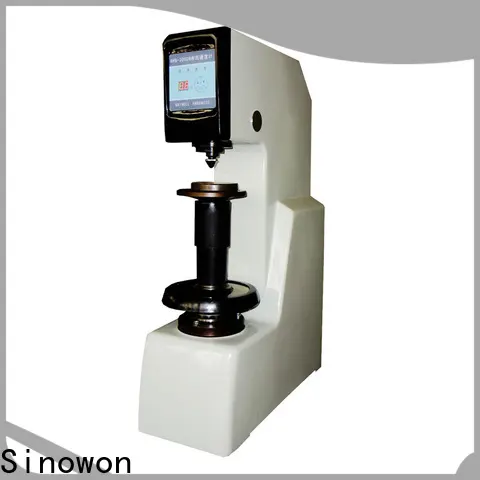

Sinowon brinell hardness from China for soft alloys

Model:
SHB-3000B
Code#:
831-101
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Certificate:
CE
Inquiry
Company Advantages
1. The quality of Sinowon brinell testing machine is ensured through a wide range of testing solutions. These solutions are for performance and durability, as well as, safety certifications, chemical, flammability testing, and sustainability programs. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
2. Identifying the competitive advantage for itself and sustaining it is at the heart of Sinowon Innovation Metrology Manufacture Limited.. It is easy to operate, with fast speed
3. Careful inspection is conducted before the actual outsourcing of the products in the market. It is well recognized by more than 5000 customers
4. The advanced test method is conducted to ensure the quality of this product. The product is excellent in dust prevention
5. The product is quality-assured and holds many international certificates, such as ISO certificate. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology

Sinowon brinell hardness from China for soft alloys 3



Product Feature


 Electronic communication switch.

 Solid construction, good rigidity, precise, reliable, durable, high efficiency.

 High precision reading microscope measurement system.

◆ Widely used in quality control, strong adaptability to working environment.

 In line with GB/T231.2, ISO 6506-2 ,ASTM E10.



Application


Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials. Wide application range, especially used in precision measurement of parallel plane.  What’s more, measurement of curved surface is stable and reliable.



Specification



Name

Brinell Hardness Tester

Model

SHB-3000B

Code#

831-101

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the table of Brinell Hardness scale
Microscope

Analogue 20x Microscope

Vertical Space

230mm

Horizontal Space

120mm

Dimension

700 x268 x842mm

Gross/Net Weight

240Kg/210Kg

Power Supply

AC 220V/110V±5%,50~60 Hz

Conform Standard

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12  JIS Z2243

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%
