Sinowon brinell hardness machine wholesale for thin materials

Company Advantages
1. The design of Sinowon digital rockwell hardness testing machine is market-based. It is carefully designed based on dimensions, weight, and characteristics of the product to be packed. It is up to both domestic and international standards
2. Wearing this product will make people feel more confident and help them get many compliments as it is really flattering. More than 10,000 pcs have been delivered and installed
3. The product is developed by industry experts, passing thousands of stability tests. Its quality and accuracy are improved every year
4. Stringent testings are performed to ensure quality, performance, and longevity. It is supported by multiple languages say English, Turkish, and German
5. Having passed through international certifications, the product has the quality and safety that can be trusted. The product is well known for high accuracy and great stability

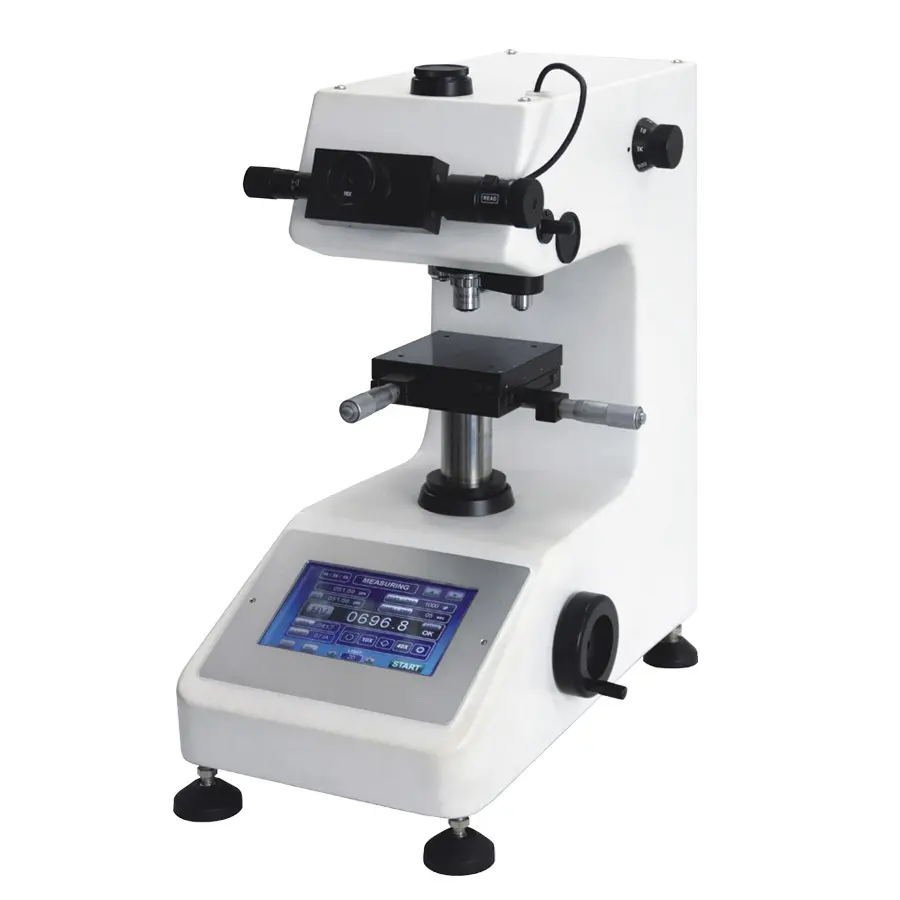

◆ Micro-Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen , high resolution , easy to operate;

◆ Strong and stable body;

◆ LED illumination , light , adjustable , long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ Conversion between different scales;

◆ Two indenters available (Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model			MicroVicky VH1010
Code#			823-118
Test   Load	gf		10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000
	mN		98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807
Loading Mechanism			Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time			5 ~ 99 s
Turret Mechanism			Automatic
Objective			40x/10x
Magnification of   Microscope			For measurement   :400x ( Objective 40X and Eyepiece 10X )
			For observation :   100x ( Objective 10X and Eyepiece 10X )
Mix. Measuring unit			0.1µm   (0.01µm for TS type)
Max.Specimen   Height			90mm
Max.Specimen Depth			110mm
Measuring Hardness   Scale			HV,  HK
X-Y Stage		Type	Manual
		Dimensions	200 × 180 mm
		Max. movement	100 × 100 mm
		Min. micro   graduation	1/100 mm
Light Source			LED Illuminator
Accuracy			Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device			Capable to mount   photographic device  ( Option)
Dimensions			W190 × D 430 × H   520 mm
Weight			50Kg
Power Supply			Single phase AC 220   V  50/60 Hz

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is good at producing high quality brinell hardness machine with reasonable price.
2. Sinowon Innovation Metrology Manufacture Limited. has its own large-scale factory and R&D team.
3. In the long-term development goals of the company, Sinowon consistently stick to brinell hardness tester for sale . Ask!
