Sinowon brinell hardness manufacturer for cast iron
1. Premium raw materials: Sinowon king brinell hardness tester is made of high-quality raw materials that are only selected from qualified and certified suppliers. Meanwhile, the raw materials of this product go through rigorous screening before production. The production is supported by professional engineers
2. This product has helped promote the realization of sustainable value growth for customers. It is up to both domestic and international standards
3. The product has exquisite seamless joints. Its parts are seamed with high precision machines that will not generate ugly splicing trace. It is aimed at more than 60 countries and regions for exports
Product Feature
◆ Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.
◆ Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.
◆ AutoBrin AB-3000Z can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
◆ Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.
◆ Loading control by load cell with accuracy at 0.5‰, microchip can make force compensation automatically lost during loading.
Application
Because of Brinell method apply big loading force and generate big indentation, it is suitable to test hardness of hard alloy, cemented steel, hardened steel, case-hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, soft steel, hardened and tempered steel, annealed steel, ball bearing steels.
Specification

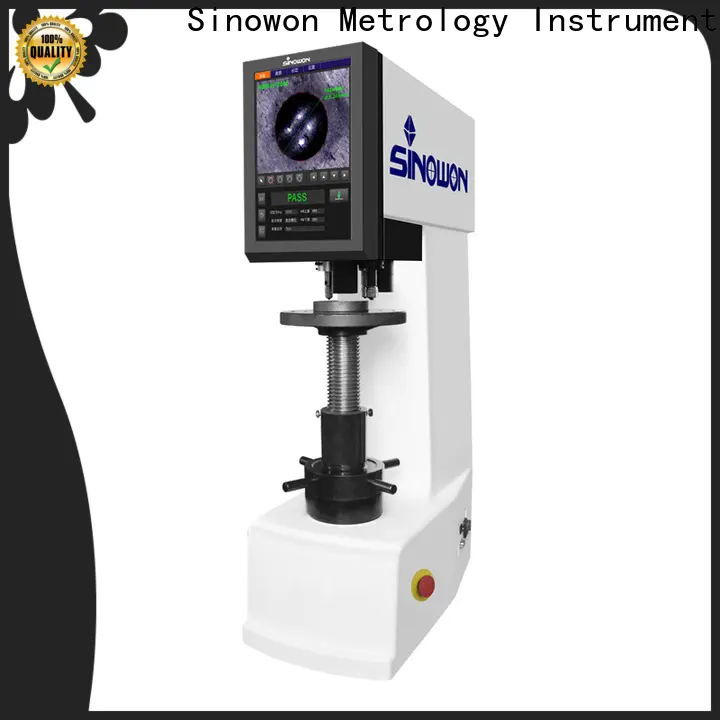

| Name | Auto Digital Touch Vision Brinell Hardness Tester | |
| Model | AutoBrin-3000Z | |
| Code# | 831-170 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Hardness Resolution | 0.1HBW | |
| Brinell Range | (8-650) HBW | |
| Indentation Measurement | Automatically | |
| Objective | 1x And 2x | |
| Software | Win 10 OS, MS Office | |
| Brinell Measurement Software | BrinScan V3.0 | |
| Vertical Space | 250mm | |
| Horizontal Space | 150mm | |
| Dimension | 622x313x992mm | |
| Gross/Net Weight | 200Kg/170Kg | |
| Power Supply | AC 220V/110V±5%，50~60 Hz | |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been a competitive and powerful manufacturer of king brinell hardness tester . We have gained a good reputation in the market.
2. Our factory has the right condition: the openings in the building's ceiling allow light to reach the factory, bringing warmth to the facilities and reducing the electricity consumption of indoor lighting.
3. Sinowon is going to increase its international fluency in brinell hardness market. Ask online!
