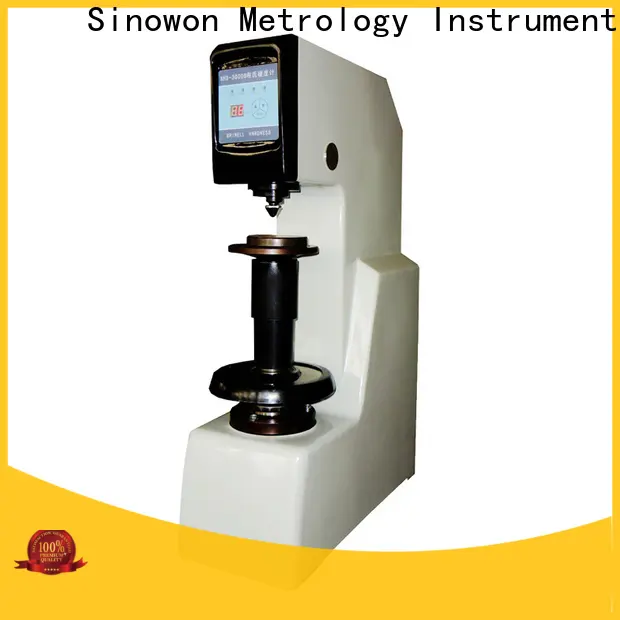

Sinowon brinell hardness supplier for soft alloys
1. Sinowon brinell hardness test equipment is an innovative design product developed by the concerted effort of a strong R&D team and professional design team. It is in response to the requirements of home and abroad customers. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. The product is now widely demanded across various industries, having extensive applications. The production is supported by professional engineers
3. The product is designed to be very durable. It is comprised of basic electrical components that are well encapsulated to withstand any forms of impacts and bumps. More than 10,000 pcs have been delivered and installed
Product Feature
◆ Electronic communication switch.
◆ Solid construction, good rigidity, precise, reliable, durable, high efficiency.
◆ High precision reading microscope measurement system.
◆ Widely used in quality control, strong adaptability to working environment.
◆ In line with GB/T231.2, ISO 6506-2 ，ASTM E10.
Application
Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials. Wide application range, especially used in precision measurement of parallel plane. What’s more, measurement of curved surface is stable and reliable.
Specification
| Name | Brinell Hardness Tester | |
| Model | SHB-3000B | |
| Code# | 831-101 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Brinell Range | (8-450) HBS，(8-650) HBW | |
| Hardness Display | Check the table of Brinell Hardness scale | |
| Microscope | Analogue 20x Microscope | |
| Vertical Space | 230mm | |
| Horizontal Space | 120mm | |
| Dimension | 700 x268 x842mm | |
| Gross/Net Weight | 240Kg/210Kg | |
| Power Supply | AC 220V/110V±5%，50~60 Hz | |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
