A professional manufacturer of measuring & testing equipment.

Sinowon brinell hardness test experiment personalized for nonferrous metals 1
Sinowon brinell hardness test experiment personalized for nonferrous metals 1

Sinowon brinell hardness test experiment personalized for nonferrous metals

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon brinell hardness tester for sale complies with the safety standard. Tests carried out on raw yarn, finished textiles, garments, and accessories ensure the safety of the finished product. Many international famous manufacturers choose this product for its premium quality
2. I start up my small business recently and this product was so easy to navigate. The set up was so easy to follow. - Said one of the business owners. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
3. The product is quality-assured as we always keep 'quality first' firmly in mind. Its packing is made seriously to guarantee the safety during shipment

Sinowon brinell hardness test experiment personalized for nonferrous metals 2



Product Feature

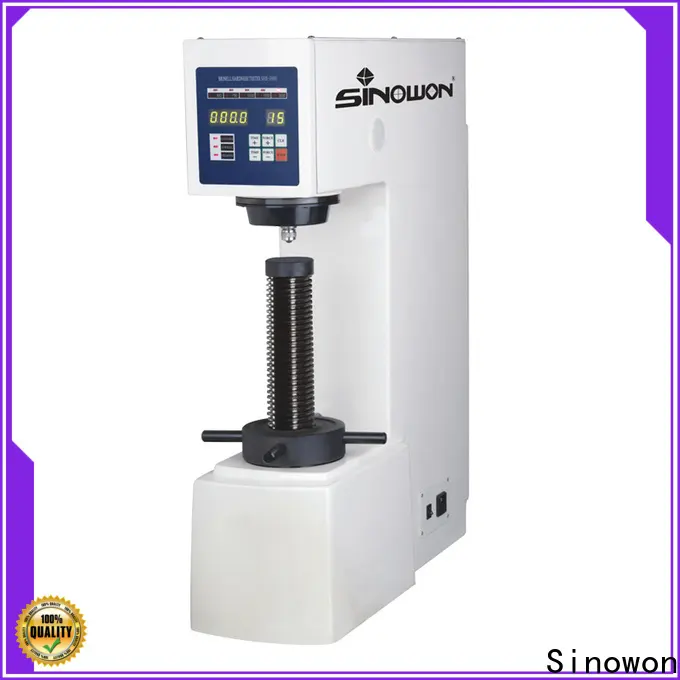

 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

831-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%
