A professional manufacturer of measuring & testing equipment.

Sinowon digital rockwell hardness machine from China for small areas 1
Sinowon digital rockwell hardness machine from China for small areas 2
Sinowon digital rockwell hardness machine from China for small areas 1
Sinowon digital rockwell hardness machine from China for small areas 2

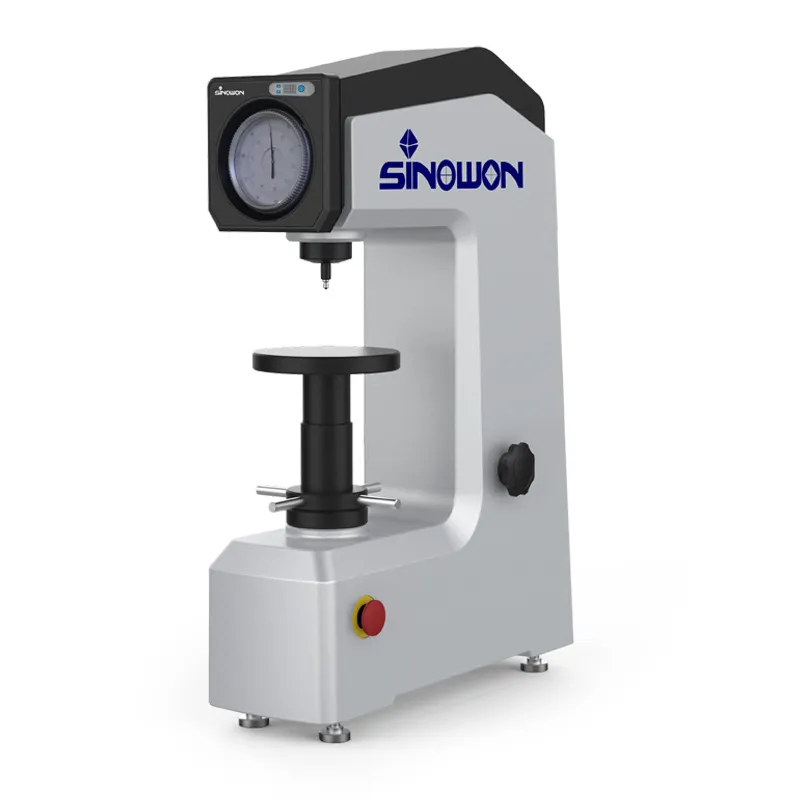

Sinowon digital rockwell hardness machine from China for small areas

Model:
DigiRock MR2
Code#:
811-120
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ISO 6508,ASTM E18, GB/T230
Certificate:
CE
Inquiry
Product Details
Adhering to the concept of 'details and quality make achievement', Sinowon works hard on the following details to make the vision measuring machine more advantageous.Sinowon's vision measuring machine is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.
  • Sinowon digital rockwell hardness machine from China for small areas 3
Product Comparison
Sinowon has the ability to meet different needs. vision measuring machine is available in multiple types and specifications. The quality is reliable and the price is reasonable.vision measuring machine in Sinowon has the following advantages, compared with same kind of products in the market.
  • Sinowon digital rockwell hardness machine from China for small areas 4
    Sinowon digital rockwell hardness machine from China for small areas 5
Company Advantages
1. rockwell hardness testing machine take precedence over other similar products with its rockwell hardness machine materials.
2. Being manufactured based on government and industry safety and quality requirements, the product is 100% qualified.
3. Given its big domestic base and good service, this would make Sinowon Innovation Metrology Manufacture Limited. a strong candidate for a global enterprise.
4. Competent with strong R&D abilities, Sinowon Innovation Metrology Manufacture Limited. will always aspire to launch new competitive rockwell hardness testing machine .

Sinowon digital rockwell hardness machine from China for small areas 6



Product Feature

 DigiRock MR2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;

 DigiRock MR2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;

 DigiRock MR2 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life;

 DigiRock MR2 loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum;

 DigiRock MR2 intenter protector is available to improve the using lifetime of indenter.


Specification



Product NameMotorized Rockwell Hardness Tester
ModelDigiRock MR2
Code#811-120
Rockwell ScalesHRA, HRB, HRC
Preliminary Test Force10Kgf(98.07N)
Addtional Test Fore60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N)
Dwell TimeAdjustable 1-60s
Hardness IndicationAnalogue Display
Resolution0.5HR
Loading ControlMotorized
Max. Height Of Specimen175mm
Instrument Throat165mm
Power supplyAC220V/50Hz;AC110V/60Hz
Dimension(LxWxH)546x182x755mm
Packing Dimension620x460x870mm
Gross/Net Weight120Kg/90Kg
Execution StandardISO 6508,ASTM E18, GB/T230
Application

Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.




Company Features
1. As a rockwell hardness testing machine manufacturer, Sinowon Innovation Metrology Manufacture Limited. is quite professional.
2. Sinowon Innovation Metrology Manufacture Limited.'s teleological achievements are highly recognized by in industry people.
3. The vision of Sinowon is to become a world-famous brand. Check now! Our vision is to develop rockwell hardness machine related technologies and improve its design. Check now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
