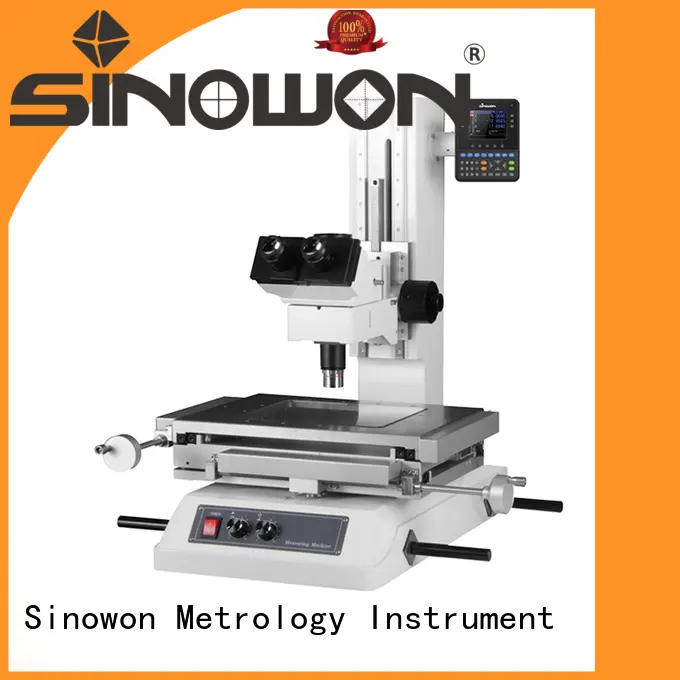

Sinowon digital toolmakers microscope inquire now for soft alloys

Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Comparison
Sinowon carries out strict quality monitoring and cost control on each production link of hardness testing machines, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.Sinowon's hardness testing machines has better performances in the following aspects.
  • Sinowon digital toolmakers microscope inquire now for soft alloys 7
    Sinowon digital toolmakers microscope inquire now for soft alloys 8
Company Advantages
1. The fabric of Sinowon tool makers microscope wikipedia is not treated with formaldehyde resin, which is one of the most toxic chemical fabric finishes and its pattern is not washed away.
2. The product is unmatched in performance, service life and usability.
3. This product is hugely recommended by a large number of customers.


Sinowon digital toolmakers microscope inquire now for soft alloys 9



Product Feature


Bright field observation, clear and flare less obverse image, wide field of view;

Long working distance objectives, up to optical 1000x magnification;

Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;

The quick-release system, which is especially useful in long-stroke measurements;

Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;

Zero-set switches (X- and Y-axis) are also located near the stage feed handles;


Specification



Microscope ModelSTM-2015ASTM-3020A
Code #532-150532-160
X/Y-axis travel200x150mm300x200mm
Scale Resolution0.0005mm
XY Stage Measuring Accuracy at 20ºC.(2+L/200) μm L: measuring length
Observation ImageObverse image (Erect Image is available)
Eyepiece TubeBinocular Eyepiece: WF10/20
Objective LensOnly 5x is standard delivery; Optional: 10X, 20X, 50x 100x
Contour IlluminationAdjustable LED
Surface IlluminationAdjustable LED
Z Axis Travel RangeStandard focus travel:150mm, 200mm is optional
Z Axis FocusingManual focusing (Coarse/fine)
XY Stage Floating FunctionQuick release mechanism
Display Unit FunctionZero setting, Direction switching, Data output via RS-232
Power SupplyAC220/50HZ; AC110V/60Hz
Optional AccessoriesHigh-Precision Rotary Table RT4(D:165mm), RT5(262mm)
Digital Readout DP300
Quickmeasuring Measuring Software QM2.0
CCD adapter and CCD camera


Optical Specification:


NameObjectiveEyepiece WF10/22
N.A.W.D.(mm)f(mm)’R(um)±▽p(um)MagnificationVisual Field(mm)
5x0.1511.6402.116.350x¢4.4
10x0.36.3200.93.1100x¢2.2
20x0.410.3100.691.8200x¢1.1
50x0.8240.340.4500x¢0.44
100x0.81.9620.340.2100x¢0.22
