Sinowon durable brinell machine from China for measuring

Company Advantages
1. Relying on advanced technology, Sinowon brinell machine is finely manufactured according to the lean production method. It is well recognized by more than 5000 customers
2. Available in multitude of ravishing designs & sizes, it is highly utilitarian as well as applicable. It is supported by multiple languages say English, Turkish, and German
3. The product features good filter fineness. The filter elements such as the filter membranes have amazing impurities absorption capacity to enhance the filtering effect. It is aimed at more than 60 countries and regions for exports
4. It is antimicrobial. It contains antimicrobial silver chloride agents which inhibit the growth of bacteria and viruses and greatly reduce allergens. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
5. This product is less likely to get pilling. The singeing treatment has removed and burned off any surface hairs or surface fibers. Its quality and accuracy are improved every year

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, max loading force at 1Kgf(Vicky MHV-1000).

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error. MV series vickers software is recommended, includes USB camera, C-mount adapter and computer.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

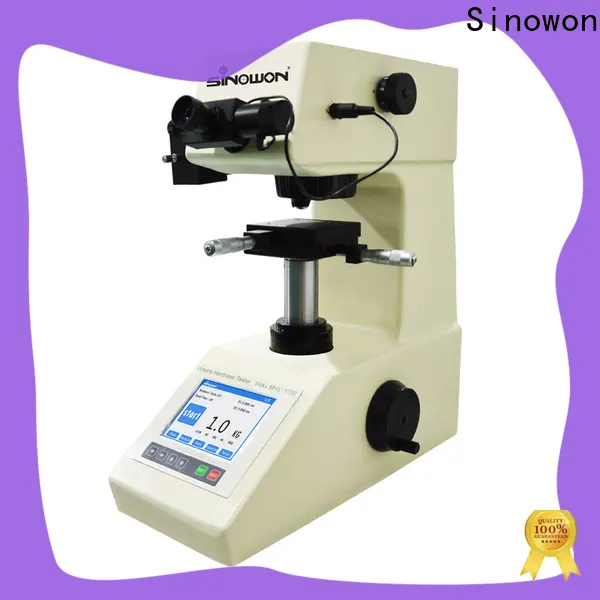

Product Name		Color Touch Screen Digital Micro Vickers Hardness Tester
Model		Vicky MHV-1000
Code#		823-160
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Lens & Indenter Switch		Auto Turret
Data Transfer		Bluetooth；RS232 is optional
Hardness Resolution		1HV
Measuring Range		1HV~2967HV
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Hardness Conversion		HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB
Eyepiece		10x Digital Eyepiece
Dwell Time		Adjustable 5~60s
X-Y Anvil		Size：100*100mm；Travel：25*25：Resolution：2um
Illumination		LED Cold Light（Brightness adjustable）
Display		5.2" Touch Screen, Resolution 640*480
Conversion Standard		ASTM、DIN
Language		Chinese, English, German, Portuguese, Turkish,  Czech, Korean
Max Height of Specimen		70mm
Instrument Throat		95mm
Power Supply		AC220V/50Hz
Dimension/Packing Dimension		478 x 162 x 518mm/500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Conform standards		GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Company Features
1. Sinowon has attracted an increasing number of customers since inception. The solid technology foundation for Sinowon Innovation Metrology Manufacture Limited. further consolidates the quality of brinell machine .
2. Sinowon Innovation Metrology Manufacture Limited. has a wealth of experience and strong technical strength in micro vickers field.
3. Sinowon Innovation Metrology Manufacture Limited. consistently selects the best and most advanced equipment and integrated information systems for its plants. Keeping innovating, improving, and cooperating to win-win is our business philosophy. We are looking forward to more cooperation with overseas customers based on mutual benefits. Contact!
