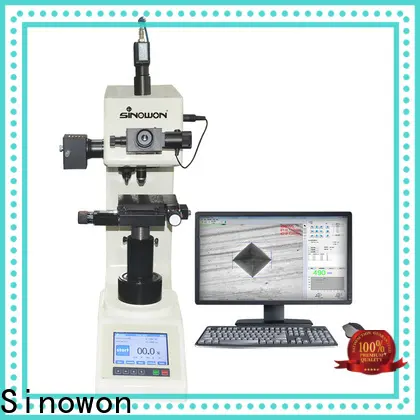

Sinowon efficient vickers hardness test manufacturer for thin materials

Company Advantages
1. Sinowon microhardness test adopts a number of techniques to satisfy production requirements. The product is analyzed and tested cautiously before packing
2. People can be set assured that this product will be not subject to problems like color fading and paint flaking off. The product is designed by professional designers to be user-friendly
3. This product is innocuous. It has passed the materials test that focuses on the safety of ingredients, such as Chlorinated phenols and dimethyl fumarate. The Gost certificate has been obtained for the Russian market
4. The product can withstand high temperature. It will not deform and swell when heated and can keep its original shape. Many international famous manufacturers choose this product for its premium quality

◆ Close-loop control: equips with close-loop loading sensor, ensure loading force more precision, iVicky 6.0 control software realize auto loading, dwell and unloading.

◆ Auto Turret: indenter and objectives controlled by iVicky 6.0 software.

◆ Motorized Platform: precision X-Y movement to realize specific position hardness measurement.

◆ Auto Focus: Apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra≦0.8um.

◆ Auto Measurement Software: iVicky 6.0 can control hardness tester and data communication, includes objectives and indenter switch, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

Product Name		Auto Vickers Hardness Tester
Model		AutoVicky ZHV-5F	AutoVicky ZHV-10F	AutoVicky ZHV-30F	AutoVicky ZHV-50F
Code#		821-220F	821-240F	821-260F	821-280F
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X
Turret		Auto Turret
Loading Control		Auto loading dwell and unloading
Data Transferring		RS232
Camera Adapter		C-mount
Hardness Conversion		HRA, HRB, HRC, HK, HBW, etc.
Display		5.2” Color touch screen, resolution 640*480
Dwell Time		5-60s adjustable
Measuring Range		1HV-2967HV
Resolution		1HV
Vision system		USB high definition USB camera
Motorized XY Platform		Size :100x100mm; Travel :50x50mm; Resolution:1um
Illumination		Adjustable halogen lamp
Vertical Space		≤ 170mm
Horizontal space		≤ 130mm
Voltage		AC220/50Hz
Dimension/ Packing Dimension		535x190x585/610x450x770mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO 6507, ASTM E92, JISZ2244, GB/T4340
Software		iVicky 6.0 Auto Vickers Measurement Software
Computer		Dell, OS Win7, office2010

Company Features
1. Our professional equipment allows us to fabricate such microhardness test .
2. We have implemented a wide range of initiatives to realize sustainable development. For example, we fulfill our social responsibility through reduce CO2 emission.
