Sinowon efficient Video measurement system factory for thin materials

Company Advantages
1. Sinowon Video measurement system is distinguished from its competitors for being made of the highest quality materials. The Gost certificate has been obtained for the Russian market
2. This product is user-friendly. It is of high quality and will not produce electromagnetic radiation which is harmful to the human body. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. Video measurement system is widely accepted by customers for its good properties of vickers hardness testing machine . It is aimed at more than 60 countries and regions for exports
4. No complaint about the production quality and performance has been received. A team of experienced talents is gathered to support the product sales

◆ Close-loop control: equips with close-loop loading sensor, ensure loading force more precision, iVicky 6.0 control software realize auto loading, dwell and unloading.

◆ Auto Turret: indenter and objectives controlled by iVicky 6.0 software.

◆ Motorized Platform: precision X-Y movement to realize specific position hardness measurement.

◆ Auto Focus: Apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra≦0.8um.

◆ Auto Measurement Software: iVicky 6.0 can control hardness tester and data communication, includes objectives and indenter switch, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

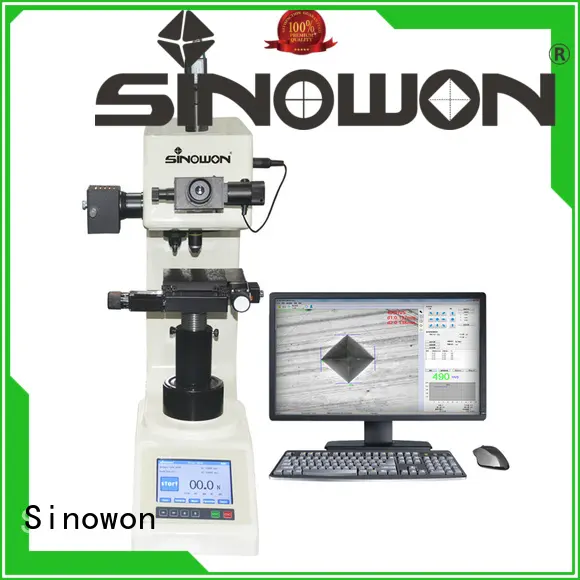

Product Name		Auto Vickers Hardness Tester
Model		AutoVicky ZHV-5F	AutoVicky ZHV-10F	AutoVicky ZHV-30F	AutoVicky ZHV-50F
Code#		821-220F	821-240F	821-260F	821-280F
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X
Turret		Auto Turret
Loading Control		Auto loading dwell and unloading
Data Transferring		RS232
Camera Adapter		C-mount
Hardness Conversion		HRA, HRB, HRC, HK, HBW, etc.
Display		5.2” Color touch screen, resolution 640*480
Dwell Time		5-60s adjustable
Measuring Range		1HV-2967HV
Resolution		1HV
Vision system		USB high definition USB camera
Motorized XY Platform		Size :100x100mm; Travel :50x50mm; Resolution:1um
Illumination		Adjustable halogen lamp
Vertical Space		≤ 170mm
Horizontal space		≤ 130mm
Voltage		AC220/50Hz
Dimension/ Packing Dimension		535x190x585/610x450x770mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO 6507, ASTM E92, JISZ2244, GB/T4340
Software		iVicky 6.0 Auto Vickers Measurement Software
Computer		Dell, OS Win7, office2010

Company Features
1. As an experienced manufacturer in China, Sinowon Innovation Metrology Manufacture Limited. develops and manufactures vickers hardness testing machine with economic and ecological benefits. Sinowon Innovation Metrology Manufacture Limited. has ISO9001:2000 quality system certification, with strict and perfect quality assurance system.
2. To be a better forward Video measurement system supplier, Sinowon applies the most modern and advanced technology and machines.
3. Our QC team has made great contributions to the improving quality of Vision Measuring Machine . In our corporate culture, we believe everyone is an innovator. We value every creative idea and strive to create various platforms and tools for employees to develop and learn. We believe this will ultimately bring practical benefits to clients.
