Sinowon excellent durometer with good price for small parts

Company Advantages
1. Sinowon microdur hardness tester is strictly inspected. It is carried out by our QC team who checks its biocompatibility, sanitation, wear resistance, and chemical resistance. The production is supported by professional engineers
2. Our highly qualified team of professionals works in close-coordination with the customers to provide a world class range of durometer . The product is verified by ISO9001:2015 to be quality ensured
3. The product is user-friendly. According to the principle of ergonomics, it is designed to fit the characteristics of the human body or actual use. The product is designed by professional designers to be user-friendly
4. The product is built to last. It has passed the fatigue test and crocking test which provide insight into its durability. Innovation is always made to update the product
5. This product has weather resistance. Its materials are less likely to crack, split, warp or become brittle when exposed to extreme temperatures or drastic fluctuations. Its quality and accuracy are improved every year

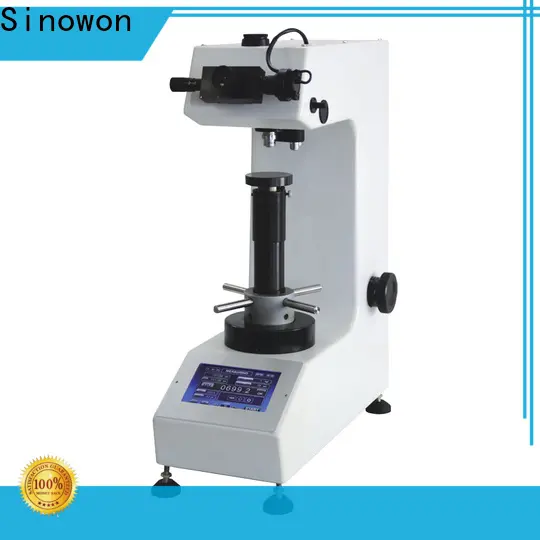

◆ Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen, high resolution, easy to operate;

◆ Strong and stable body;

◆ LED illumination, light, adjustable, long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ Conversion between different scales;

◆ Can be developed to semi-automatically system.

Model		Vicky TV-10Plus	Vicky TV-30Plus	Vicky TV-50Plus
Code#		821-240Plus	821-260Plus	821-280Plus
Test   Load	Kgf	0.2 / 0.3 / 0.5 / 1   / 2 / 3 / 5 / 10	0.3 / 0.5 / 1 / 3 /   5 / 10 / 20 / 30	1 / 2 / 3 / 5 / 10   / 20 / 30 / 50
	Nf	1.961 / 2.942 /   4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07	9.807 / 19.614 /   29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35	9.807 / 19.614 /   29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35
Loading Mechanism		Automatic loading   and releasing method 50~100 µm/s
Dwell Time		5 ~ 99 s
Turret Mechanism		Automatic
Diamond Indenter		VICKERS INDENTER   (FOR HV)
Objective	Normal	10X , 40X	10 X , 20X	10X
	Option	40x, 20x, 5X
Measuring   Microscope Eyepiece		Electronic Type 10X
Max. Measuring   length		900 µm  ( In case of 100x )    230 µm    ( In case of 400x )
Mix. Measuring unit		0.1µm (0.01µm for   CTS type)
Max.   Specimen Height		200mm
Max. Specimen Depth		160mm
Measuring Hardness   Scale		HV, HK
LCD-Touch Operation   Panel		Load start / set up   zero / dwell time / light adjustment / transformation scale turret location /   data processing ( browse / delete / print )System settings( test conditions /   language/Communications/factorysettings )
Numerical Display		D1 value / D2 value   / HV-HK Instructions / hardness value /conversion value / load value / dwell   time / test times / turret location
Print Output		Measured data and   statistic data ( Max. Value / Min. value / Mean value / Range / Standard   deviation )
Light Source		LED Illuminator
Accuracy		Conform to : JIS B   -7735, ASTM E-384 and ISO 6507-2
Photographic Device		Capable to mount   photographic device ( Option)
Dimensions		W 226 × D 560 × H   660 mm
Weight		72KG
Power Supply		Single phase AC 220   V 50/60 Hz

Company Features
1. As a hi-tech enterprise integrating R&D, production, and domestic and overseas marketing of microdur hardness tester , Sinowon Innovation Metrology Manufacture Limited. is one of the most professional manufacturers in China. We have experienced design professionals. Their expertise lies in concept visualization, product drawings, function analysis, and more. Their involvement in all aspects of product development has enabled the company to exceed every customer's expectations for product performance.
2. Our quality check team is crucial to our company. They utilize their years of QC experience to ensure the highest standards of product quality and safety.
3. Our biggest asset is very capable people, many of whom are recognized and accepted as leading experts in their respective fields. They combine decades of knowledge and expertise into our production. Sinowon Innovation Metrology Manufacture Limited. concentrates on supplying five-star customer support for clients. Contact us!
