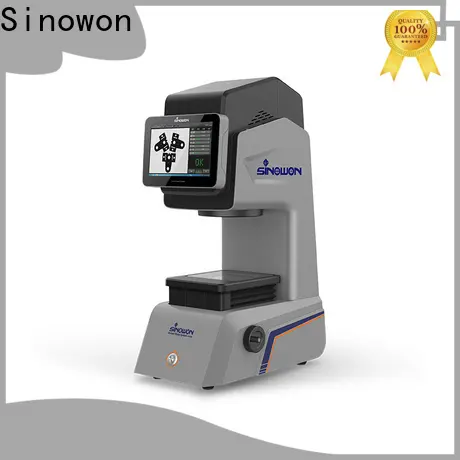

Sinowon instant video measuring system series for cell phone case
1. Sinowon manual vision measuring machine owns a relatively advanced technical level in the industry. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
2. This product is beneficial and extremely helpful in promoting brand awareness. It's not only cheaper than the TV channel advertisement, but it can also keep the brand visible and known for a longer period of time. It is well recognized by more than 5000 customers
3. When the night sweats steal on, it not only absorbs moisture, but also causes annoying temperatures to change from too hot to too cold. The production is supported by professional engineers
Product Feature
High accuracy and excellent repeatability
◆ High depth of field, low distortion double telecentric lens, no need to repeat focus.
◆ Software processes the image by the way of Sub-pixel edge detection and automatic removal of burrs and outliers and the least-square method to ensure accuracy.
Friendly operation
◆ Automatic location and orientation correction, automatically detect and measure based on the recorded shape of the sample, measure with a click of button.
Efficient batch measurement
◆ Automatically identify multiple parts, test elements, then conduct automatic measurement, satisfied with batch measurement requirements.
◆ Entire image, no need to move the working stage, both high efficiency and high accuracy.
◆ Improve efficiency, save labor cost, eliminate operator error.
Quality Control and Statistical Process Control (SPC)
◆ Automatic memory and output measuring values, and make test data simple applied.
Technical Specification
| Model | iVS-30 | iVS-60 | iVS-80 | iVS-160 |
| Code# | 500-030 | 500-060 | 500-080 | 500-160 |
| Lens | 0.3X Double Telecentric Lens | 0.17X Double Telecentric Lens | 0.088X Double Telecentric Lens | 0.088X Double Telecentric Lens |
| Working Distance | 110 mm | 110 mm | 120 mm | 390mm |
| Wide Field | Ø 30mm(28x24) | Ø 60mm(56x50) | Ø116mm(94x76) | Ø229.6mm(146.7x110) |
| Measurement Accuracy | ±2um | ±3um | ±4um | ±7um |
| Repeatability Accuracy | ±1um | ±2um | ±2um | ±5um |
| Camera | 2/3’’ 5 million pixel B/W camera (Ethernet) | |||
| Illumination | Digital controls, automatic memory | |||
| Telecentric Green LED Contour illumination | ||||
| Ring White LED illumination | ||||
| PC System | DELL (I5 Intel processors) | |||
| Monitors | Built-in 10.4 inch LCD Monitor(1920*1080) | |||
| External 21.5 inch LCD Monitor(1920*1080) | ||||
| Measuring Software | iMeasuring 2.0 | |||
| Measuring Amount | Max.99 | |||
| Test Time | <5S (Less than 100 tests) | |||
| Output data | Test data, reports, determine the results (OK, NG, WAIT), etc | |||
| Function | 2D measurements: points, lines, circles, arcs, angles, distance, oval, O-rings, Groove, rectangle, parallelism | |||
| Auxiliary Function | Intersection, parallel, perpendicular, tangent, bisection. | |||
| Geometric Tolerances | Dimension tolerances and position tolerances, tolerances of form and position (Point position concentricity, straightness, parallelism, roundness, straightness, profile, etc) | |||
| Measurement Mode | Manual / Automation | |||
| SPC Data Management and Control | √ | |||
| CAD Data Input / Output | √ | |||
| Power Supply | AC100~240V，50~60Hz | |||
Application
It is widely used in quick batch measurement of precision screws, precision springs, gears, cell phone case, cell phone glass, precision metal parts and other parts in small size.
