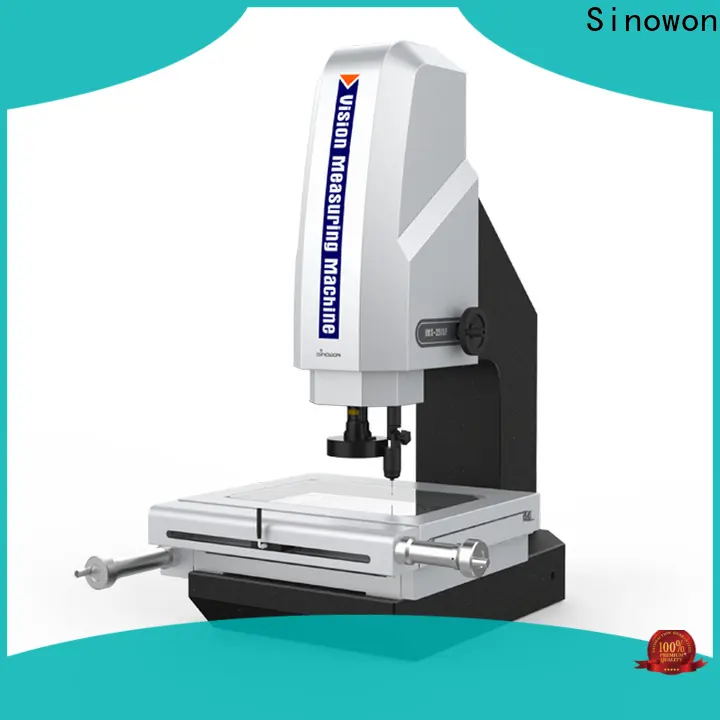

Sinowon movable Manual Vision Measuring Machine with good price for automobile parts
1. The quality control of Sinowon Manual Vision Measuring Machine is conducted at the preliminary production stages to guarantee that it meets inspection percentage of the feedstock in the textile industry. The product is verified by ISO9001:2015 to be quality ensured
2. This properly fitting product can help align people's feet, ankles, knees, hips and back to correct their gait and improve posture. The product is well used in many large engineering projects
3. The product is internationally recognized for its excellent performance and long service life. It can be customized according to customers' needs
4. This product is very famous for its high quality and reliable performance. It is supported by multiple languages say English, Turkish, and German
5. With the innovative and creative functions, this product shows the charm of art. Imported materials and accessories are used in product manufacturing
Brief Induction:
iTouch is the high accuracy geometric vision measuring machines that integrate the optical detent zoom lens and 3D touch trigger probe system, it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, aviation and aerospace, etc.
Product Characteristic:
l High precision marble base and pillar ensures the high stability of vision measuring system;
l High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;
l High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;
l High definitive detent zoom lens and high resolution digital camera ensures clear image without distortion;
l With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
l Britain touch trigger probe and powerful function iMeasuring3.1 3D Measuring Software, highly enhance the quality control.
Technical Specification：
Mode | iMS-2010P | iMS-2515P | iMS-3020P | iMS-4030P | iMS-5040P |
Code# | 521-140P | 521-150P | 521-160P | 521-170P | 521-180P |
Working Table | 270x350mm | 408x308mm | 458x358mm | 608x470mm | 650x580mm |
Material | Marble Table | Metal Table | Metal Table | Metal Table | Marble Table |
Glass Table | 142x242mm | 306x198mm | 356x248mm | 456x348mm | 541x441mm |
X/Y-axis Travel | 200x100mm | 250x150mm | 300x200mm | 400x300mm | 500x400mm |
Z-axis Travel | High-precision linear guide , working travel 200mm | ||||
X/Y/Z-axis Travel | 0.0005mm | ||||
X/Y-axis Accuracy | ≤2.5+L/200(um) | ||||
Hysterisis Error | 2um | ||||
Base and Pillar | High Accuracy Jinan Qing Marble | ||||
Illumination System(Software Adjustment) | Surface: Adjustable 0~255 grade 4-ring 8-division LED Cold Illumination, every division can be adjust independently | ||||
Contour: LED Parallel Illumination | |||||
LED Laser Navigation Lights | |||||
CCD Camera | High Resolution Digital Camera | ||||
Zoom lens | 6.5X High Resolution Detented Zoom Lens | ||||
Magnification：0.7X~4.5X；Video Magnification：26X~172X | |||||
Working Environment | Temperature：20℃±2℃, change range < 2℃/hr | ||||
Humidity：30% ~80%RH | |||||
Vibration<0.002g，<15Hz | |||||
Measuring Software | IMeasuring3.1 | ||||
Operation System | Support XP，WIN7，WIN8.1，WIN 10,32/64 operating system | ||||
Language | English, Simplified Chinese, Traditional Chinese, other language versions can be added | ||||
Dimension(W*D*H) | 677x552x998mm | 790x617x1000mm | 838x667x1000mm | 1002x817x1043mm | 1104x852x1085mm |
Net Weight | 150Kg | 175Kg | 185Kg | 350Kg | 380Kg |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has complete products category and strong technical force.
2. We adopt technologies and practices which reduce negative impacts on the environment, ensuring a commitment to environmental protection during all stages of project development.
