Sinowon portable hardness tester machine supplier for precision industry
1. Sinowon portable hardness testing equipment has been analyzed by the third-party organization. It has passed through the water analysis, deposit analysis, microbiological analysis, and scale and corrosion analysis. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
2. People can be assured that it can offer them effective power solution with its safe and reliable electricity performance with large capacity. Its packing is made seriously to guarantee the safety during shipment
3. The product works stably under the reversible circuits. Its forward and reverse contactors are equipped with electric interlocks and mechanical interlocks to ensure smooth operation. It is supported by multiple languages say English, Turkish, and German
Product Feature
◆ Metal shell, nice appearance design.
◆ Available to save 2000 groups test results.
◆ Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.
◆ 4” LCD to display hardness result, conversion results, Max, Min,Mean value;
◆ Support blue tooth printer, with RS232 to connect computer for software running;
◆ Can test all kinds of metal which more than 5kg;
◆ Indicating error ±5HLD, conform standard ASTM A956;
◆ Support 7 types of impact devices.
Application
◆ Die cavity of molds;
◆ Bearings and other parts;
◆ Failure analysis of pressure vessel, steam generator and other equipment;
◆ Heavy work piece;
◆ The installed machinery and permanently assembled parts;
◆ Testing surface of a small hollow space;
◆ Material identification in the warehouse of metallic materials;
◆ Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specification

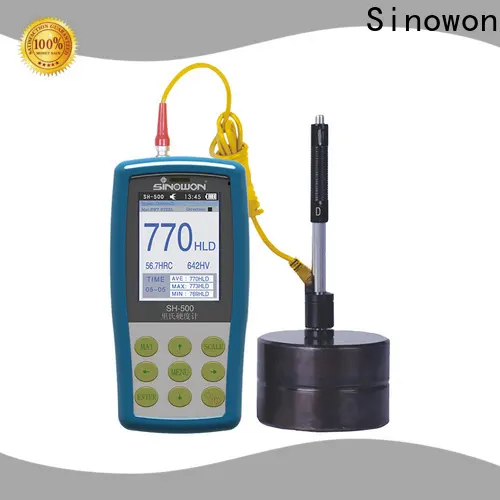

| Product Name | Portable Leeb Hardness Tester |
| Model | SH-500 |
| Code# | 852-150 |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Data Storage | maximum 2000 Groups test Results |
| Data-Output | RS232/Printer |
| Hardness Indication | 240x160 graphic dot color LCD display |
| Hardness Scale | HL、HBW、HRB、HRC、HRA、HV、HS |
| Shell Material | Metal |
| Indicating Error | HLD：±6 HRC：±1 HB：±4 |
| Language Option | Chinese, English, German, Portuguese, Turkish |
| Statistics | Average value, min-max ,upper-lower limits |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius(convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm, G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm C: 0.2mm G:1.2mm |
| Power Supply | 4.2V |
| Operating Temperature | 0 ℃-40 ℃ |
| Dimension | 160x 80 x 31mm |
| Weight | 500g(Excluding impact device and printer) |
Standard Delivery:
| Standard Delivery | Code# |
| Instrument Main Body | 852-150 |
| Impact device type D | 852-410 |
| Hardness Block(750-830)HLD | 852-630 |
| Cleaning brush | 852-860 |
| SINOWON certificate | SH-500 |
| Recharger | 852-850 |
| Accessories Box | 852-900 |
| Instrument Manual | SH-500 |
Measuring Range / Materials:
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper | 200-690 | — | — | 45-315 | — | — |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. centers on the development and production of portable hardness testing equipment in the meantime we offer a wide range of other product portfolios.
2. Our group of talents understands the fundamentals of shape, form, and function; their creativity and technical ability enable customers to gain unique insights into the industry.
3. Implementing the tenet of portable hardness tester machine with our heart and soul, we sincerely serve the enterprise. Ask online!
