Sinowon professional portable hardness tester machine personalized for industry

Company Advantages
1. The manufacturing processes of Sinowon portable hardness testing equipment are completely conducted. They include sourcing fabrics, pattern designing & making, sampling, review of samples, mass production, and quality control. A team of experienced talents is gathered to support the product sales
2. Sinowon Innovation Metrology Manufacture Limited.'s global stocking warehouses and distribution networks help insure your product is available when you need it most. The production is supported by professional engineers
3. The product has good gas permeability and water permeability. The surface is treated with a coating film that changes the product's hygroscopicity. Many international famous manufacturers choose this product for its premium quality

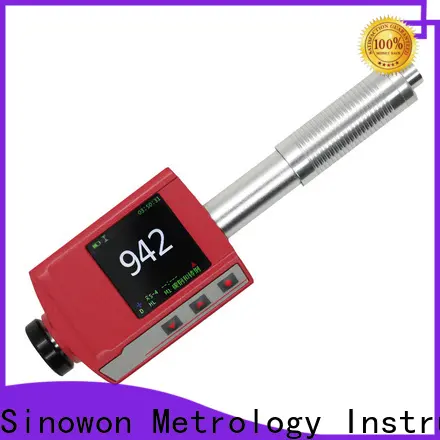

◆ New Leeb hardness tester MH-500 with durable metal housing .

◆ It still used our patent dual-coil technology which makes it to have extraordinary accuracy:+/-4HL with high contrast colour TFT display and durable metal housing.

◆ It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colort for easy visual distinguish.

◆ It can download measuring data to PC and printout to mecro-printer by USB port and wirelessly with internal wireless module.

◆ The battery can be charged simply from USB port , also it has a customer re-calibration and statistics function.

◆ Integrated design , easy operation

◆ Durable metal housing

◆ TFT320*320 colour display

◆ Wide operation environment : -20ºC-70ºC

◆ High accuracy:+/-4HL (or 0.5% @HL800)

◆ Auto compensate error for different impact direction

◆ Moving bar-graph display

◆ Two evaluation modes: By limit / Deviation

◆ Two Calibration modes:Coincident / Independent

◆ Multi-printing mode

◆ Four display styles

◆ Sound reminder

◆ Up to 10 kinds of menu language

◆ D probe

◆ It can connect to computer by USB or Bluetooth

◆ USB and Bluetooth interface, it can connect micro-printer wirelessly

◆ 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

◆ Statistics value can be calculated automatically

◆ With strength conversion value

◆ Power on / off automatically or manually

◆ Packed in rigid carrying case

Product Name	Pocket D-Type Leeb Hardness Tester
Model	MH-500D
Code#	852-156D
Accuracy	±0.5% @ HL=800 / ±4HL
Display	High contrast color TFT 320*320
Hardness scale	HL / HRC / HRB / HB / HV / HS / HRA /σb
Measuring range	HL100~960 / HRC0.9-~79.2 / HRB1.2~140/ HB1~1878/   HV1~1698 / HS0.5~128/ HRA7~88.5 / σb(rm)24~6599N/mm2
Probe	D probe
Materials and curves	11 common metal materials, 75 curves
Memory	30/60 files on request, 100 data for each file,   can be saved and re-readable
Statistics function	Average /Max. /Min. /Single Value
Re-calibration	Coincident /Independent
Indicator	Low battery
Language	English, Chinese, Russian, Korean, French, Italian, German, Turkish,   Spanish
Interface	USB/Bluetooth to PC for transferring data, wireless printing, USB for   charging
Power on/off	Auto/Manual
Power supply	3.7V Li-ion rechargeable battery
Working environment	-20°c~+70°c
Dimension (mm)	148*44*22
Net weight (g)	115
Standards	Conforming to ASTM A956, DIN 50156, GB/T   17394-1998

Company Features
1. In the meantime training its own developing power, Sinowon Innovation Metrology Manufacture Limited. also researches and develops high quality portable hardness tester machine together with many of scientific research institutions.
2. portable hardness testing equipment is the solid responsibility of Sinowon Innovation Metrology Manufacture Limited. for the public. Get an offer!
