Sinowon quality brinell hardness manufacturer for cast iron
Model:
QB-500
Code#:
838-390
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340, ISO6506/6507，ASTM E10-12/E92 JIS Z2243
Certificate:
CE
Company Advantages
1. brinell hardness bears the signature of exquisite craftsmanship. Its packing is made seriously to guarantee the safety during shipment
2. Having set foot in brinell hardness industry, Sinowon began to focus on the service provided and quality of products. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. This product is monitored constantly by our own quality team. The product is analyzed and tested cautiously before packing
4. The value of Sinowon's product are shown with strong reliability and excellent practicality. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Company Features
1. We have employed professional technicians and engineers who can produce the best brinell hardness .
2. We assume social responsibility in our daily operations. We are constantly reviewing our manufacturing methods in the light of changing prospects for sustainable development. Please contact.
1. brinell hardness bears the signature of exquisite craftsmanship. Its packing is made seriously to guarantee the safety during shipment
2. Having set foot in brinell hardness industry, Sinowon began to focus on the service provided and quality of products. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. This product is monitored constantly by our own quality team. The product is analyzed and tested cautiously before packing
4. The value of Sinowon's product are shown with strong reliability and excellent practicality. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Introduction

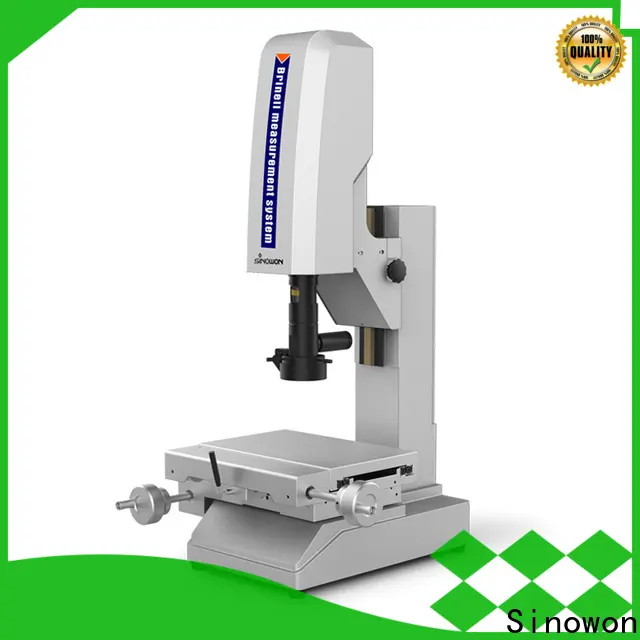

QB-500 high accuracy Brinell optic measurement system mainly used to test accuracy of hardness block for manufacturer and verification lab, also available for specimens Brinell indentation measurement.
Features
◆ Apply telecentric zoom lens, can measurement Brinell indentation accurately on mirror surface and rough surface.
◆ High accuracy microscope stage with travel 100 x 50mm, supportt specimen weight at max 15Kg.
◆ Non-touch optical measurement, with laser navigation, easily to find indentation.
◆ By BrinScan V2.0 software, realize auto measurement.
Specification
| Name | High accuracy Brinell optic measurement system | |
| Model | QB-500 | |
| Code# | 838-390 | |
| Hardness Resolution | 0.01HB | |
| Repeatability | ±1HB | |
| Specimen Weight | 15Kg | |
| Stage Travel | 100X50mm | |
| Z Axis Travel | 50mm | |
| Z Axis Guiding | Dovetail groove and manual driven | |
| Illumination | Adjustable LED cold light source, coaxial light source | |
| Software | Brinscan V2.0 | |
| Operation OS | Win8、Win10，32/64bit；Office | |
| Working Environment | Temperature 20℃±1℃， Humidity 30~80% | |
| Voltage | 220V/50HZ | |
| Weight | 20Kg | |
| Dimension | 440x410x700mm | |
Company Features
1. We have employed professional technicians and engineers who can produce the best brinell hardness .
2. We assume social responsibility in our daily operations. We are constantly reviewing our manufacturing methods in the light of changing prospects for sustainable development. Please contact.
