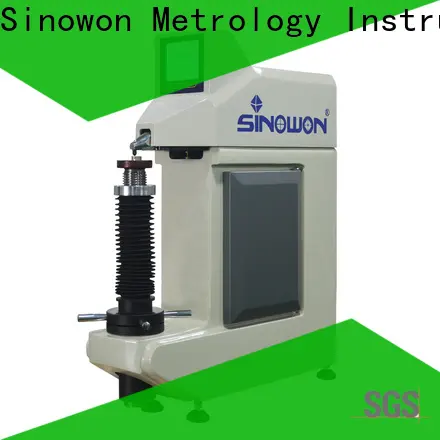

Sinowon quality rockwell hardness series for thin materials

Company Advantages
1. Sinowon Innovation Metrology Manufacture Limited. puts a high value on material of rockwell hardness , which wins customers' trust. A quality control system is implemented for the product
2. Pressures to reduce costs and maximize profits have encouraged many manufacturers to choose this product. It is really effective in improving productivity. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
3. It is developed with the best functionality and quality. It is aimed at more than 60 countries and regions for exports
4. Before delivering, we closely inspect the quality of the product. Its quality and accuracy are improved every year
5. It is believed to provide unmatched performance. It is well recognized by more than 5000 customers

◆ Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material;

◆ Horizontal Convex noise design,  which is suitable for internal and external testing;.

◆ Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm;

◆ Testing force is set automatically according to testing scale;

◆ Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales;

◆ Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;

◆ Test value can be transformed to the value of HB, HV, HK and σb value;

◆ The tester meeting all the following standard such as ISO 6508, ASTM E18.

Commodity	Digtial Rockwell Hardness Tester	Digital Superficial Rockwell  Hardness Tester	Digital Twin Rockwell  Hardness Tester
Model	SHR-150N	SHR-45N	SHR-145N
Code #	811-308	811-318	811-328
Total test force	60Kgf(588.4N) 100Kgf(980.7N) 150Kgf(1471N)	15Kgf(147.1N) 30Kgf(294.3N) 45Kgf(441.3N)	15Kgf(147.1N),   30Kgf(294.3N), 45Kgf(441.3N);   60Kgf(588.4N), 100Kgf(980.7N),150Kgf(1471N)
Rockwell Scale	SHR-150N: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	SHR-45N: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Twin Rockwell Scales	SHR-145N:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15Y,30Y,45Y; 15N,30N,45N
Dwell Time	2-60s adjustable
Hardness Indication	High definition backlight LCD
Resolution	0.1HR
Data-Output	RS-232
Conversion Scale	HV、HBS、HBW、HK
Loading Control	Auto Loading/Dwell/Unloading
Max. Height of Specimen	260mm
Throat	150mm
Power Supply	AC 220V/50Hz;AC110V/60Hz
Dimension	710 x210 x830mm
Packing Dimension	820x520x1000mm
Net Weight /Gross	125Kg/95Kg
Execution standard	GB/T230.2, EN-ISO 6508 , ASTM E-18

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a very good factory which produce high quality with nice design rockwell hardness . Covering a large scale, the factory owns 50% of highly automatic production lines. With space combining with technologies, we can flexibly arrange the production lines to coordinate the production demands.
2. The factory owns a series of production facilities, quality testing equipment, and assembly lines. Based on these perfect equipment and facilities, we are now able to quickly turn designs into existing products within a short time.
3. Our company consists of a highly trained customer services team. They are driven to achieve results that enable our customers to attain new levels of excellence and gain a competitive advantage. Sinowon Innovation Metrology Manufacture Limited. is committed to technological innovation, ensure the quality of our products. Inquiry!
