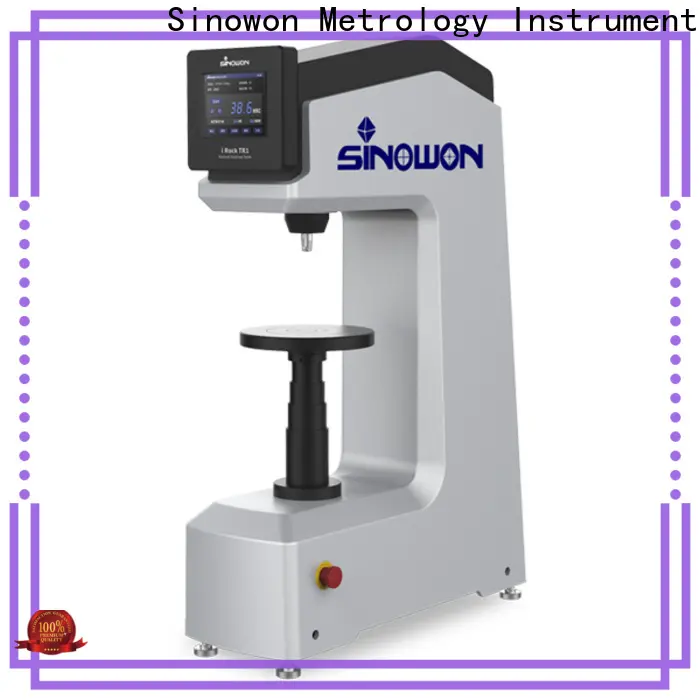

Sinowon rockwell hardness tester supplier for small parts
Product Feature
◆ A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.
◆One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.
◆ Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.
◆ Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.
◆ Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.
◆ With software compensation function, available to compensate ±3HR, need not mechanical adjustment.
◆ With function of auto conversion according to ASTM E140, without checking hardness contrast table.
◆ Available to switch languages.: Chinese、English、German、Portuguese、Turkish、Czech、Korean.
◆ Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis
◆ With optional wireless Bluetooth printer, there is no need to record results and report by hand.
◆ With optional data analysis software and Bluetooth receiver to input and analyze data.
◆ Support FexQMS data analysis and control software, improve integral control and decrease material consumption.
Specification
| Product Name | Automatic Rockwell Hardness Tester | Automatic Superficial Rockwell Hardness Tester | Automatic Twin Rockwell Hardness Tester |
| Model | iRock-DR1 | iRock-SR1 | iRock-TR1 |
| Code # | 811-330 | 811-340 | 811-350 |
| Preliminary Test Force | 10Kgf(98.1N) | 3Kgf(29.4N) | 3Kgf(29.4N);10Kgf(98.1N) |
| Total Test Force | 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N) | 15Kgf(147.1N), 30Kgf (294.3N), 45Kgf(441.3N) | 15Kgf(147.1N) 30Kgf(294.3N), 45Kgf(441.3N); 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N) |
| Rockwell Scale | DR1: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV | ||
| Superficial Rockwell Scale | DS1: HR15N,HR30N,HR45N; HR15T,HR30T,HR45T; HR15X,HR30X,HR45X;HR15Y,HR30Y,HR45Y | ||
| Full Rockwell Scale | TR1: HRA, HRB, HRC, HRD, HRE, HRF, ;15T,30T,45T;15T,30T,45T; 15N,30N,45N, etc | ||
| Dwell Time | 1-60s adjustable | ||
| Display Screen | 5.2 ”Color touch screen; Resolution：640*480 | ||
| Resolution | 0.1HR | ||
| Loading Mode | Auto loading/dwell/unloading | ||
| Conversion Scale | HV、HBS、HBW、HK | ||
| Conversion Standard | ASTM,DIN | ||
| Language | Chinese、English、German、Portuguese、Turkish、Czech、Korean | ||
| Software Correction | -3.0HR ~ +3.0HR, step value 0.1HR | ||
| Data Processing | 2000 group single dat, line chart of group data function; respectively provide single data viewing and group data viewing | ||
| Optional Bluetooth Printer | |||
| Max. Height of Specimen | 240mm | ||
| Throat | 170mm | ||
| Power Supply | AC 220V/50Hz; AC110V/60Hz | ||
| Dimension | 615 x 225x 885mm | ||
| Packing Dimension | 670×440×1000mm | ||
| Net Weight /Gross | 125Kg/140Kg | ||
| Execution standard | GB/T230.2, EN-ISO 6508, ASTM E-18 | ||
