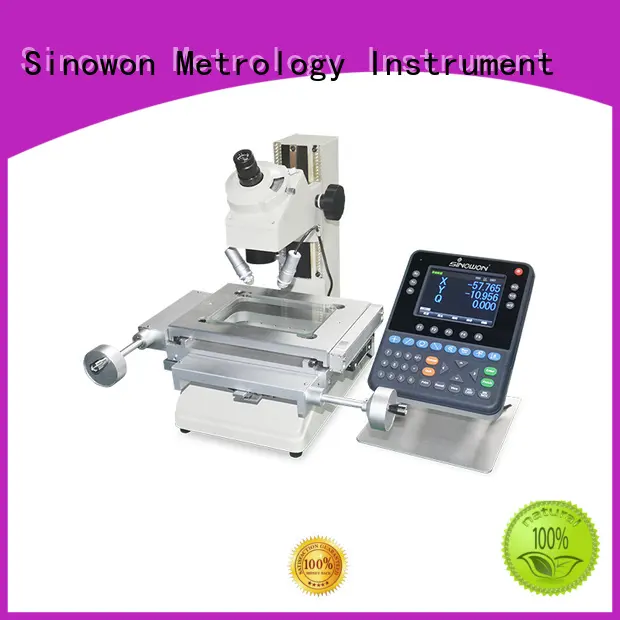

Sinowon Toolmakers Microscope inquire now for steel products
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Enterprise Strength
- Sinowon has a dedicated customer service team to provide efficient after-sales service.
1. The design of Sinowon tool makers microscope wikipedia involves 3D imaging, which refers to both the tools and the process for the collection of 3D digital data from physical objects.
2. This product features high efficiency. It is able to bring out the desired outcomes in the fastest manner without any errors.
3. This product has antifungal properties. By adding an inorganic antibacterial agent, the fabric has antibacterial and bactericidal properties.
4. With the expanding of sales work, Sinowon has been more attaching more importance to the quality assurance of Toolmakers Microscope .
5. Sinowon Innovation Metrology Manufacture Limited. is famous for its top quality of Toolmakers Microscope and professional after-sales services.
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |
| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |
| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |
| Surface Illumination | Ring LED illumination brightness adjustable |
| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has received many compliments for its high quality tool makers microscope wikipedia . Since our inception, we fully devote to improving our quality so as to win more overseas markets.
2. We put great emphasis on technology of Toolmakers Microscope .
3. We aim to maximize the overall company value through management robustness, better transparency and improved management speed and efficiency. With the spirit of "innovation and progress", we will keep moving forward steadily. We will focus on market trends and buyers tendency, so as to come up with creative product designs. The purpose of our company is to achieve green and sustainable production. We will encourage fewer resources consumption, less pollution, and waste during our production. We stick to the highest standard of behavior and ethics - we treat our customers and suppliers with fairness, honesty, and respect.
