A professional manufacturer of measuring & testing equipment.

Sinowon ultrasonic digital portable hardness tester supplier for rod 1
Sinowon ultrasonic digital portable hardness tester supplier for rod 2
Sinowon ultrasonic digital portable hardness tester supplier for rod 3
Sinowon ultrasonic digital portable hardness tester supplier for rod 1
Sinowon ultrasonic digital portable hardness tester supplier for rod 2
Sinowon ultrasonic digital portable hardness tester supplier for rod 3

Sinowon ultrasonic digital portable hardness tester supplier for rod

Model:
MP-200/300/500/800/1000
Code#:
882-241
Accuracy:
±3% HV, ±1.5HR, ±3%HB
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
Certificate:
ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
Inquiry
Company Advantages
1. The design of Automatic vision measuring machine is concise but beautiful. It can be customized according to customers' needs
2. Sinowon Innovation Metrology Manufacture Limited. has established several highly specialized industrial market divisions dedicated to target markets. The product is verified by ISO9001:2015 to be quality ensured
3. This product is free of any toxic element or substance. Any harmful materials will be excluded out and it is professionally handled to eliminate these toxic elements. Its packing is made seriously to guarantee the safety during shipment
4. The product has a fine melting point. It is an optimized refractory material which can prevent it have a reaction with the molten materials. Many international famous manufacturers choose this product for its premium quality
5. This product comes with moisture and mold resistance, making it ideal for these high humidity areas by reducing the effect of water on the surfaces. It is aimed at more than 60 countries and regions for exports

Sinowon ultrasonic digital portable hardness tester supplier for rod 4


PRODUCT Feature


 Introduced latest ultrasonic sensor technology

 Obtain accurate hardness value without auxiliary devices

 Excellent human engineering design easy to hold

◆ Quick and accurate measuring for edge and fixed position of specimen

 Micro indentation, no destructive for specimen

 Motorized control, one key fast measuring

 Eliminate hand shake error by manual probe, higher accuracy and repeatability

 More suitable for thin pieces, coating layer hardness


Specification

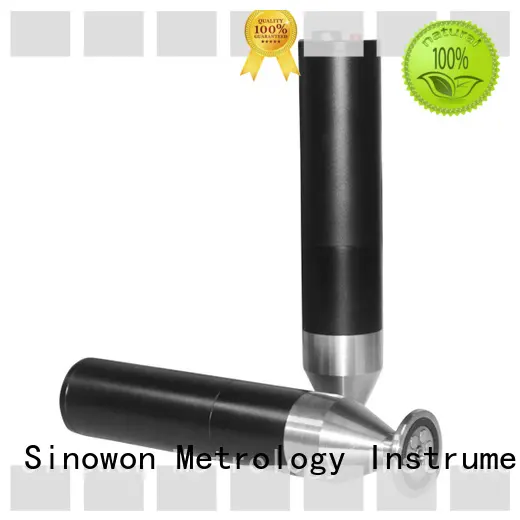

Commodity Motorized Ultrasonic Testing Probe of Ultrasonic Hardness Tester
Probe TypeMP-300MP-500MP-800MP-1000
Code#882-221882-231882-241882-251
Remark OptionalOptionalOptionalOptionalOptional
Loading Force3N5N8N10N
Diameter46mm46mm46mm46mm
Length200mm200mm200mm200mm
Oscillating Rod Diameter3.7mm3.7mm3.7mm3.7mm
Min weight of test material0.3kg0.3kg0.3kg0.3kg

Min thickness of

test material

2mm2mm2mm2mm


Application


Sinowon ultrasonic digital portable hardness tester supplier for rod 5



Company Features
1. Automatic vision measuring machine is produced by skilled and experienced workers.
2. Our great wish is to be a pioneer in Automatic vision measuring machine industry. Inquire online!
