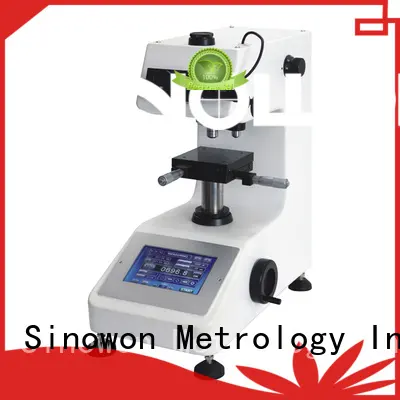

Sinowon vicker hardness tester directly sale for small areas
1. Sinowon digital vickers hardness tester is produced adopting advanced RF welding technique which is perfectly suitable for the fabrication of leak-proof, airtight inflatable products. It is up to both domestic and international standards
2. This product is proven to improve production efficiency and reduce the production cost, which will be a worthy investment for business owners. It is aimed at more than 60 countries and regions for exports
3. The outstanding features of the product are the top quality and long service life. The production is supported by professional engineers
4. The product has withstood the strict quality and performance testings. The product is verified by ISO9001:2015 to be quality ensured
Characteristics
◆ Micro-Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen , high resolution , easy to operate;
◆ Strong and stable body;
◆ LED illumination , light , adjustable , long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ D1 and D2 exchange automatically (Vicky MHV-2000Plus);
◆ Conversion between different scales;
◆ Two indenters available (Vickers and Knoop);
◆ Can be developed to semi-automatically or full-automatically system.
Application Range
◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;
◆ Measuring hardness of the surface of a part, small parts or small areas;
◆ Measuring individual micro-structures;
◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.
Specification
Model | Vicky MHV-1000 Plus | Vicky MHV-2000 Plus | |
Code# | 823-160Plus | 823-260Plus | |
Test Load | gf | 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000 / 2000 (option) | |
mN | 98.07/ 245.2/ 490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option) | ||
Loading Mechanism | Automatic loading and releasing method 50 ~100 µm/s | ||
Dwell Time | 5 ~ 99 s | ||
Turret Mechanism | Automatic | ||
Objective | 40x/10x ( Option:20x,80x ) | ||
Magnification of Microscope | For measurement :400x ( Objective 40X and Eyepiece 10X ) | ||
For observation : 100x ( Objective 10X and Eyepiece 10X ) | |||
Measuring Microscope | Electronic ( Auto D1/D2 ) | ||
Max. Measuring length | 230 µm ( In case of 400x ) | ||
Mix. Measuring unit | 0.1µm (0.01µm for TS type) | ||
Max.Specimen Height | 90mm | ||
Max.Specimen Depth | 110mm | ||
Measuring Hardness Scale | HV, HK | ||
X-Y Stage | Manual type | ||
Dimensions | 110 × 110 mm | ||
Max. movement | 25 × 25 mm | ||
Min. micro graduation | 1/100 mm | ||
Light Source | LED Illuminator | ||
Print Output | Measured data and statistic data :( Max. Value / Min. value / Mean value / Range / Standard deviation ) | ||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 146 | ||
Photographic Device | Capable to mount photographic device ( Option) | ||
Dimensions | W 240 × D 470 × H 520 mm | ||
Weight | 48Kg | ||
Power Supply | Single phase AC 220 V 50/60 Hz | ||
