A professional manufacturer of measuring & testing equipment.

Sinowon vickers hardness test with good price for small areas 1
Sinowon vickers hardness test with good price for small areas 2
Sinowon vickers hardness test with good price for small areas 1
Sinowon vickers hardness test with good price for small areas 2

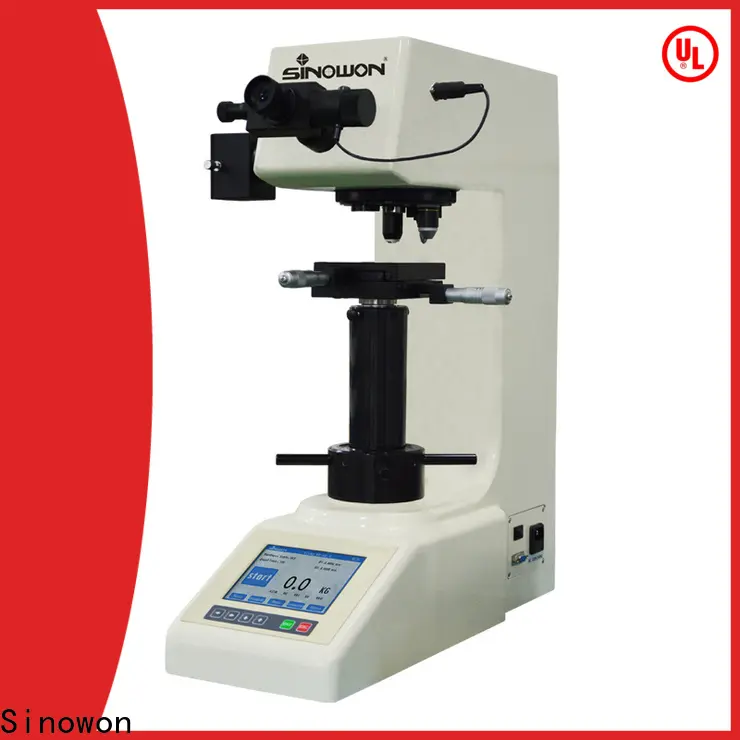

Sinowon vickers hardness test with good price for small areas

Model:
Vicky TV-10A
Code#:
821-240
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO6507,ASTM E92,JIS Z2244,GB/T4340
Certificate:
CE
Inquiry
Company Advantages
1. There are different kinds of style of vickers hardness test , such as microhardness test . The product is well known for high accuracy and great stability
2. Sinowon Innovation Metrology Manufacture Limited. has rich experience in manufacturing high quality vickers hardness test . Imported materials and accessories are used in product manufacturing
3. One of the core benefit offered by this product is its good durability and lifespan. The density and layer thickness of this product make it have better compression ratings over life. It can be customized according to customers' needs

Sinowon vickers hardness test with good price for small areas 3


Application


◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.



Characteristics


◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.


Specification



Product NameTouch Screen Digital Vickers Hardness Tester
ModelVicky TV-5AVicky TV-10AVicky TV-30AVicky TV-50A
Code#821-220821-240821-260821-280
Loading ForceN2.94、4.9、9.8、19.6、24.5、29.4、49.02.94、4.9、9.8、19.6、24.5、29.4、49.0、98.04.9、9.8、19.6、24.5、29.4、49.0、98.0、196、2949.8、19.6、24.5、29.4、49.0、98.0、196、294、490
Kgf0.3、0.5、1、2、2.5、3、50.3、0.5、1、2、2.5、3、5、100.5、1、2、2.5、3、5、10、20、301、2、2.5、3、5、10、20、30、50
Optic SystemObserve and Measure Objectives:10X/20XObserve and Measure Objectives:10X/40XObserve and Measure Objectives:10X/20XObserve and Measure Objectives:10X/20X
Hardness Range1HV-2967HV
TurretManual Turret(Optional Motorized Turret)
Loading ControlAuto loading dwell and unloading
Eyepiece10x digital Eyepiece
Dwell Time5-60s adjustable
IlluminationLED / halogen
Vertical Space170mm
Horizontal Space130m
Power SupplyAC220V/50Hz; AC110V/60Hz
Tester Dimension530x225x630mm
Packing Dimension630x460x710mm
Gross / Net Weight75Kg/55Kg
Conform StandardsISO6507,ASTM E92,JIS Z2244,GB/T4340






Company Features
1. With extensive experience and expertise, Sinowon Innovation Metrology Manufacture Limited. provides the manufacturing power needed to create the world's best microhardness test .
2. It turns out that putting vickers hardness test in the first place takes effect for the improve of the company.
3. Sinowon Innovation Metrology Manufacture Limited. will persistently strive to achieve excellence in our works. Check now!
