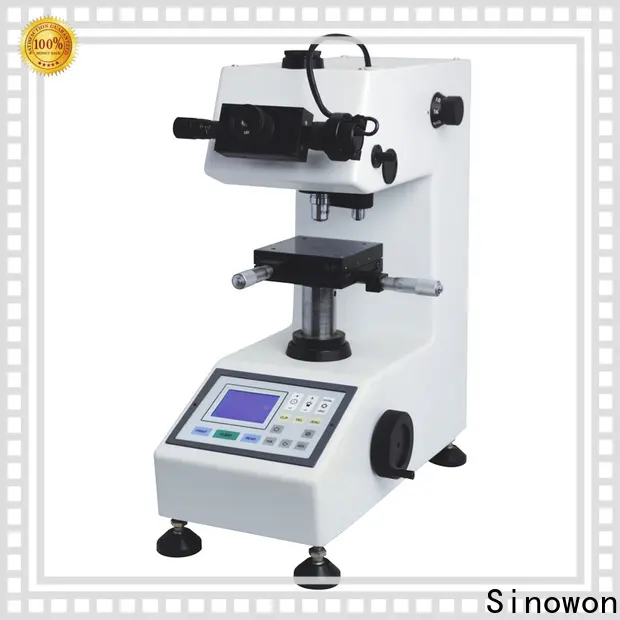

Sinowon vickers hardness testing machine series for thin materials

Company Advantages
1. The whole production of Sinowon vickers hardness testing machine is strictly supervised by professionals who have extensive experience in the industry. The product is analyzed and tested cautiously before packing
2. vickers hardness testing machine can help both make money and increase brand reputation. Many international famous manufacturers choose this product for its premium quality
3. Every aspect of the product is strictly tested to meet international quality standards. It is aimed at more than 60 countries and regions for exports
4. The product has obtained numerous certifications from international standards testing. It is tested to be of high performance and can be used for a long time. The Gost certificate has been obtained for the Russian market

◆ Micro-Vickers hardness tester with button control panel;

◆ Strong and stable body;

◆ LED illumination, light, adjustable, long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 200 lines encode with precise measurement;

◆ D1 and D2 exchange automatically(Vexus MHV-2000);

◆ Two indenters available(Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model		Vexus MHV-1000Plus	Vexus MHV-2000Plus
Code#		823-113Plus	823-213Plus
Test   Load	gf	10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000 / 2000 (option)
	mN	98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option)
Loading Mechanism		Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time		5 ~ 99 s
Turret Mechanism		Automatic
Objective		40x/10x    ( Option:20x,80x )
Magnification of   Microscope		For measurement   :400x ( Objective 40X and Eyepiece 10X )
		For observation :   100x ( Objective 10X and Eyepiece 10X )
Measuring   Microscope		Electronic
Max. Measuring   length		230 µm  ( In case of 400x )
Mix. Measuring unit		0.1µm   (0.01µm for TS type)
Max.Specimen   Height		90mm
Max.Specimen Depth		110mm
Measuring Hardness   Scale		HV,  HK
X-Y Stage		Manual  type
Dimensions		110 × 110 mm
Max. movement		25 × 25 mm
Min. micro   graduation		1/100 mm
Light Source		LED Illuminator
Print Output		Measured data and   statistic data  :( Max. Value / Min.   value / Mean value / Range / Standard deviation )
Accuracy		Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device		Capable to mount   photographic device  ( Option)
Dimensions		W 190 × D 430 × H   520 mm
Weight		40Kg
Power Supply		Single phase AC 220   V  50/60 Hz

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is the industry leader in the design, manufacture, marketing and support of advanced solutions for vickers hardness testing machine and related technologies. We have years of expertise in marketing and sales, which allows us to distribute our products around the world and helps us establish a solid customer base.
2. Our factory is placed in a satisfactory location. It is easily accessible to the airports and ports within an hour. This helps us minimize production and distribution costs for our company.
3. The factory has completed high-quality production facilities and testing machines. The strong manufacturing capabilities and high self-producing rates mainly due to these highly efficient and precise machineries. With the wish of micro vickers hardness testing machine and the guiding principle of micro vickers hardness tester mitutoyo price , Sinowon will definitely achieve the success. Inquiry!
