Sinowon Vision Measuring Machine factory for thin materials

Company Advantages
1. Sinowon vickers hardness tester manual is manufactured with the support of the latest tools and equipment.
2. Superior performance and long service life make the products competitive.
3. The product quality completely conforms to the industry standard.
4. Quality guarantee system has been improved in Sinowon Innovation Metrology Manufacture Limited. over the years.
5. It has good economic value and broad market acceptance.

◆ VicVision main apply in testing hardness of metal material and scientific research.

◆ VicVision Hardness range from soft materials to very hard materials.

◆ Except very thin and coated layers, can test almost the metals.

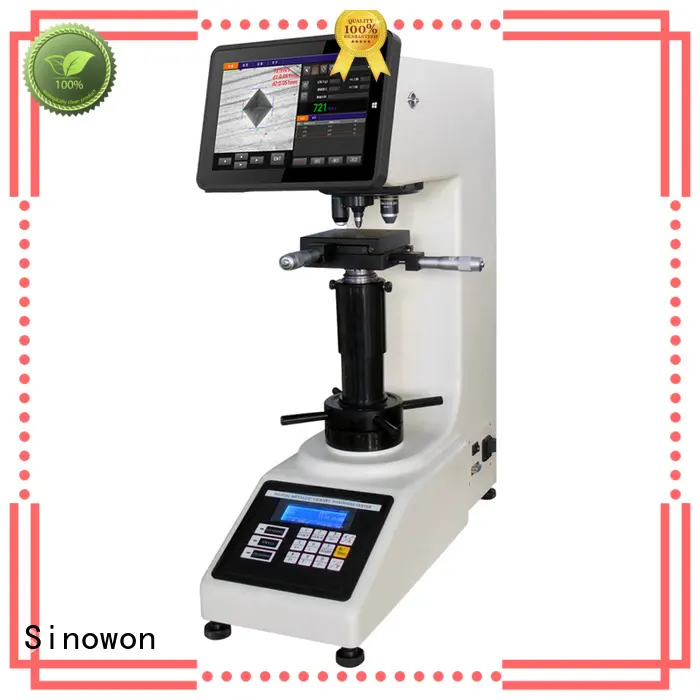

VicVision is intelligentized Vickers system, adopted vision measuring technical and auto measuring indenter system, and auto output reports. There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.

Product Name		Vision Vicker Hardness Tester
Model		VH-5	VH-10	VH -30	VH-50
Code#		821-201V	821-210V	821-220V	821-230V
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Auto Rotating Turret
Loading Control		Auto loading dwell and unloading
Illumination		LED / Halogen adjustable
Dwell Time		5-60s adjustable
Measuring System		iVicky 3.0 Auto Measuring Vickers System
PC System	Operation System	Win10
	Screen size	10.6”
	CPU	Intel I3
	USB	Double USB (could insert USB and soft dog)
	RAM	2GB
	Hard Disc	32GB
	Camera	1.3MP Pixel, 1/2”CMOS Color Camera
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is well-known in the domestic Vision Measuring Machine products market.
2. The research and development of each Video measurement system is based on the strict quality policy.
3. We operate within one clear mission: to bring the most valuable products to our customers. We are convinced that our manufacturing expertise and know-how are key ingredients in our continuing success. We’re working hard to embed sustainability across the business. We focus on reducing our negative impacts on the environment whilst maximizing economic and social value. Efficiency and waste reduction are the focus jobs towards sustainable development. We will adopt new technology to improve all aspects of production to reduce energy consumption while maintaining high efficiency. We strive for results orientation. We consistently deliver required business results, meet deadlines and comply with quality, productivity and performance standards.
