A professional manufacturer of measuring & testing equipment.

stable portable hardness testing equipment supplier for industry Sinowon 1
stable portable hardness testing equipment supplier for industry Sinowon 2
stable portable hardness testing equipment supplier for industry Sinowon 1
stable portable hardness testing equipment supplier for industry Sinowon 2

stable portable hardness testing equipment supplier for industry Sinowon

Model:
SH-500
Code#:
852-150
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
DIN 50156,ISO 18625,ASTM A956 , GB/T17394
Certificate:
CE
Inquiry
Product Comparison
optical measurement instruments, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.optical measurement instruments has the following differentiated advantages compared with other products in the same category.
  • stable portable hardness testing equipment supplier for industry Sinowon 3
    v s
    stable portable hardness testing equipment supplier for industry Sinowon 4
Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of vision measuring machine in the following section for your reference.vision measuring machine, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.
  • stable portable hardness testing equipment supplier for industry Sinowon 5
Company Advantages
1. For safe transportation of portable hardness tester machine, we use air bubble inside, standard export carton outside, and wooden package.
2. The product is quality-assured as our production team is highly qualified and has rich production experience.
3. Sinowon has always persisted in pursuing service and quality.
4. Sinowon Innovation Metrology Manufacture Limited. will timely plan our production schedule for confirmed order and arrange delivery once production is finished.


stable portable hardness testing equipment supplier for industry Sinowon 6



Product Feature


Metal shell, nice appearance design.

Available to save 2000 groups test results.

Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.

4” LCD to display hardness result, conversion results, Max, Min,Mean value;

Support blue tooth printer, with RS232 to connect computer for software running;

Can test all kinds of metal which more than 5kg;

Indicating error ±5HLD, conform standard ASTM A956;

Support 7 types of impact devices.


Application


Die cavity of molds;

Bearings and other parts;

Failure analysis of pressure vessel, steam generator and other equipment;

Heavy work piece;

The installed machinery and permanently assembled parts;

Testing surface of a small hollow space;

Material identification in the warehouse of metallic materials;

Rapid testing in large range and multi-measuring areas for large-scale work piece.


Specification

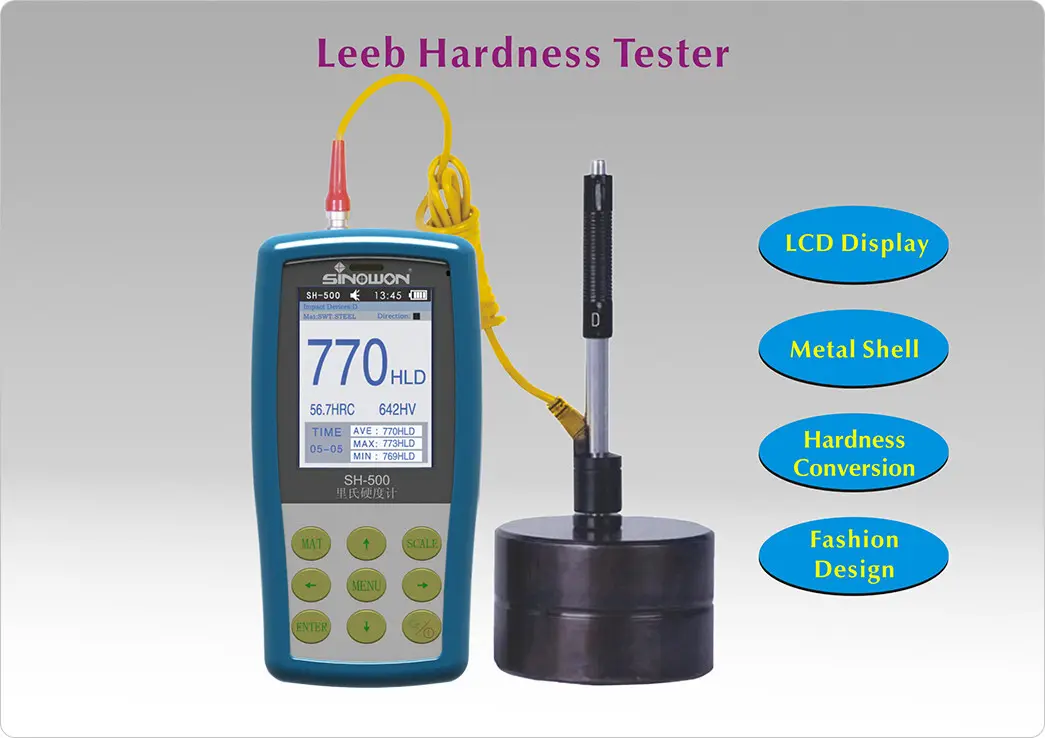

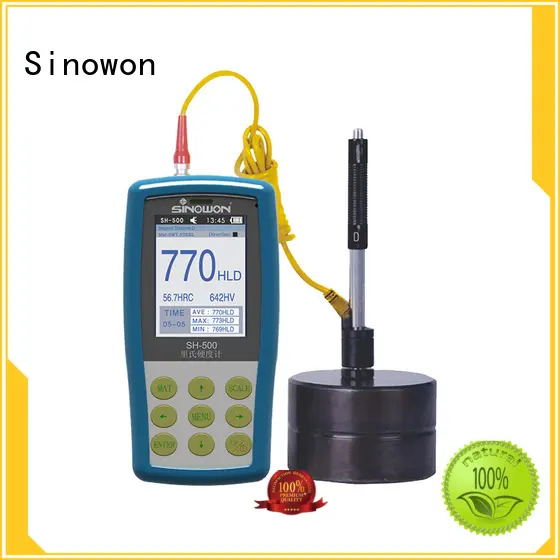

Product NamePortable Leeb Hardness Tester
ModelSH-500
Code#852-150
Measuring Range(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB
Measuring Direction0~360°
Data Storagemaximum 2000 Groups test Results
Data-OutputRS232/Printer
Hardness Indication240x160 graphic dot color LCD display
Hardness ScaleHL、HBW、HRB、HRC、HRA、HV、HS
Shell MaterialMetal
Indicating ErrorHLD:±6  HRC:±1   HB:±4
Language OptionChinese, English, German, Portuguese, Turkish
StatisticsAverage value, min-max ,upper-lower limits
Impact DeviceD (standard)
Optional impact DevicesDC/D+15/DL/G/C/E
Work piece radius(convex/concave)Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple5mm, G:10mm,C:1mm
Workpiece min. case hardened depth0.08mm C: 0.2mm G:1.2mm
Power Supply4.2V
Operating Temperature0 ℃-40 ℃
Dimension160x 80 x 31mm
Weight500g(Excluding impact device and printer)


Standard Delivery:


Standard DeliveryCode#
Instrument Main Body852-150
Impact device type D852-410
Hardness Block(750-830)HLD852-630
Cleaning brush852-860
SINOWON  certificateSH-500
Recharger852-850
Accessories Box852-900
Instrument ManualSH-500


Measuring Range / Materials:


MaterialHLDHRBHRCHBHVHSD
Steel and cast steel300-90038-10020-6881-65481-95532-100
Cold work tool steel300-84020-6780-898
Stainless steel300-80046-10185-65585-802
Grey cast iron360-65093-334
Nodular cast iron400-660131-387
Cast aluminum alloys170-57023-8419-164
Brass200-55013-9540-173
Bronze300-70060-29
Copper200-69045-315
