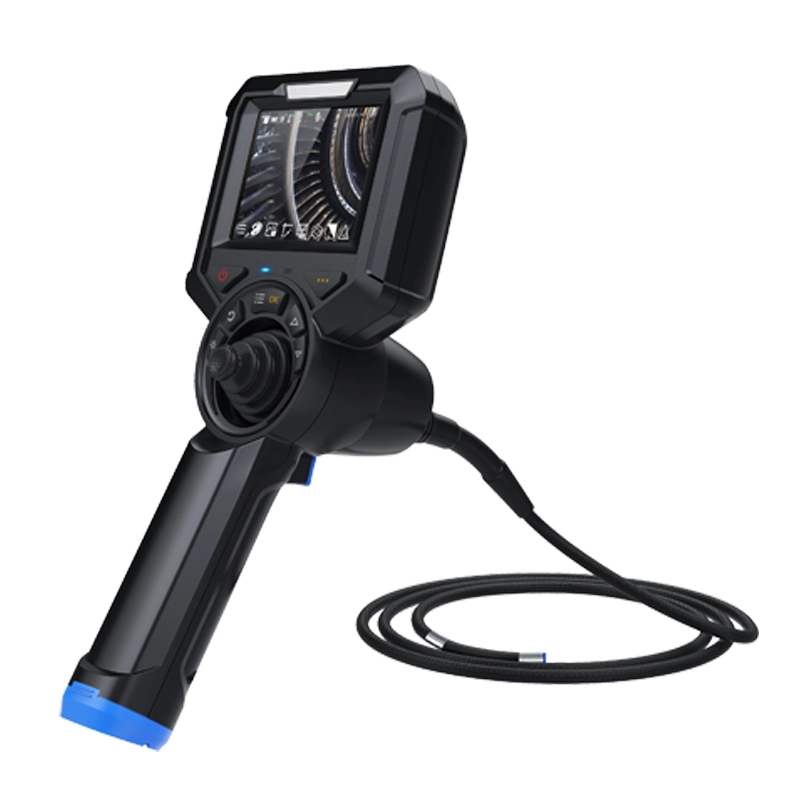

Tool Videoscope VT350 Series 1
Tool Videoscope VT350 Series 1

Tool Videoscope VT350 Series

    oops...!

    no product data.

    Go to homepage

    Tool Videoscope VT350 Series 2


    Tool Videoscope VT350 Series 3

    Tool Videoscope VT350 Series 4

    Tool Videoscope VT350 Series 5

    Tool Videoscope VT350 Series 6

    Tool Videoscope VT350 Series 7



    Specification


    Tool Videoscope

    Model

    VT350-60-100

    VT350-60-150

    Code#

    350-60-100T

    350-60-150T



    Probe

    System

    Tube Length

    1m

    1.5m

    Probe Diameter(mm)

    Φ6.0

    Tube Material

    tungsten alloy

    Camera Pixels

    1 mega pixel

    Image Resolution

    1280*720

    DOF

    7~110mm/20-150mm

    FOV

    120°

    Light Source Material

    Ceramic LED light

    Illumination Level

    6-Class: 0~5

    Illuminance

    25000Lx



    Protecting Device of Durability

    80mm buffer protection device on the connection between   tube and handle

    Articulation

    360° joystick-control articulation

    Bending Angle

    Maximum: 220°

    Display

    Monitor

    System

    Structure

    Hand-held integrated design

    Display

    3.5 inches IPS full-view display

    Zoom In/Out

    5X

    Image Effect

    Image freezing, cold/warm color

    Image Adjustment

    Image sharpness/ contrast/gamma value

    Image/Video Format

    JPEG/MP4

    File Storage

    Standard TF card: 16G, Maximum: 64G

    Data Port

    HDMI video output, Micro USB port

    Wireless Image Transmission

    WIFIoptional

    Battery

    Detachable & rechargeable lithium battery

    Battery Capacity

    3.7V3200mAh

    Battery Working Time

    ≥3H

    Battery Charge

    DC 5V/1A

    Outer Case Material

    Anti-fall engineering alloy material

    Water/Dust Proof

    Probe/tube: IP67; monitor: IP65

    Weight

    ≈0.5KG

    Accessories

    Standard Configuration

    Instrument case/ videoscope/ battery card reader/ TF   card/charger/ USB cable/ manual

    Optional

    Extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod
