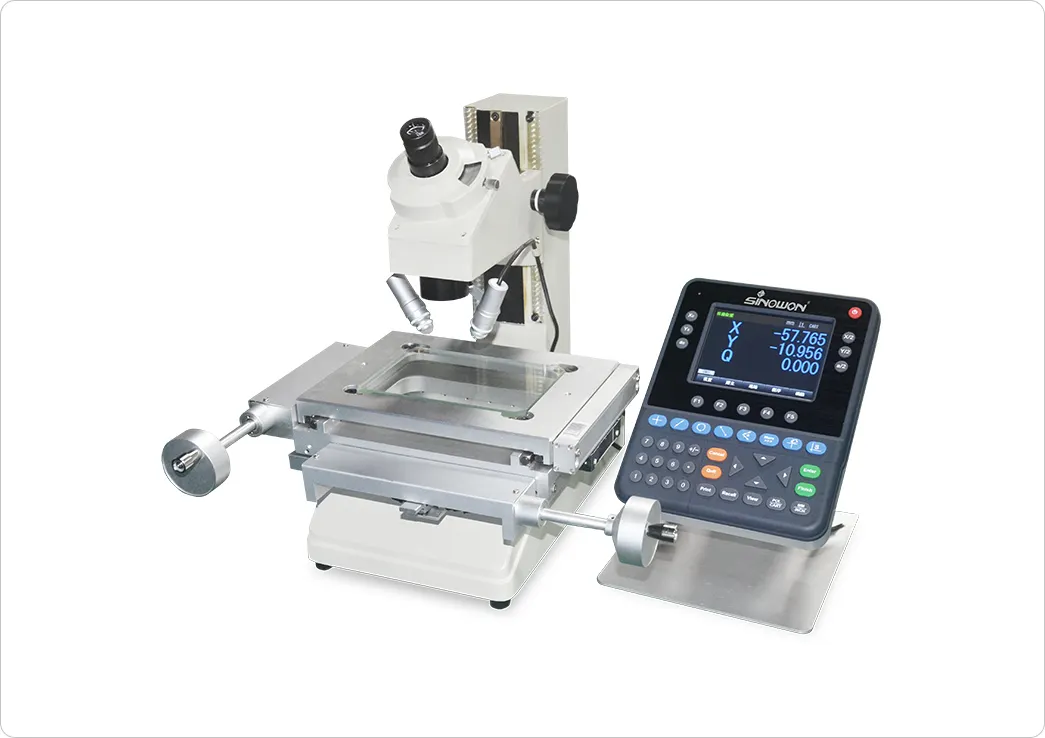

tools maker microscope institute light industry Toolmakers Microscope manufacture
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. A quality control system is implemented for the product. Thanks to the unique design of tools maker microscope, we are proud to present Sinowon products to customers all over the world. A quality control system is implemented for the product
2. Many international famous manufacturers choose this product for its premium quality. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. Its packing is made seriously to guarantee the safety during shipment. Toolmakers Microscope,toolmaker scope created by [公司名称 has the characteristics of tool makers microscope wikipedia.
4. All measuring microscope products are manufactured under controlled conditions in a standardized plant. The production is supported by professional engineers.
5. During the course of production, Sinowon consistently develop and improve tool makers microscope. The product is well known for high accuracy and great stability
![tools maker microscope institute light industry Toolmakers Microscope manufacture 8]()
![tools maker microscope institute light industry Toolmakers Microscope manufacture 9]()
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a front-runner status when speaking of Toolmakers Microscope.
2. Let Sinowon Metrology Instrument build and manage a team of professionals for your business.
3. The Core Values of Sinowon Innovation Metrology Manufacture Limited. is creating value for customers. Please contact us!
1. A quality control system is implemented for the product. Thanks to the unique design of tools maker microscope, we are proud to present Sinowon products to customers all over the world. A quality control system is implemented for the product
2. Many international famous manufacturers choose this product for its premium quality. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. Its packing is made seriously to guarantee the safety during shipment. Toolmakers Microscope,toolmaker scope created by [公司名称 has the characteristics of tool makers microscope wikipedia.
4. All measuring microscope products are manufactured under controlled conditions in a standardized plant. The production is supported by professional engineers.
5. During the course of production, Sinowon consistently develop and improve tool makers microscope. The product is well known for high accuracy and great stability
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |

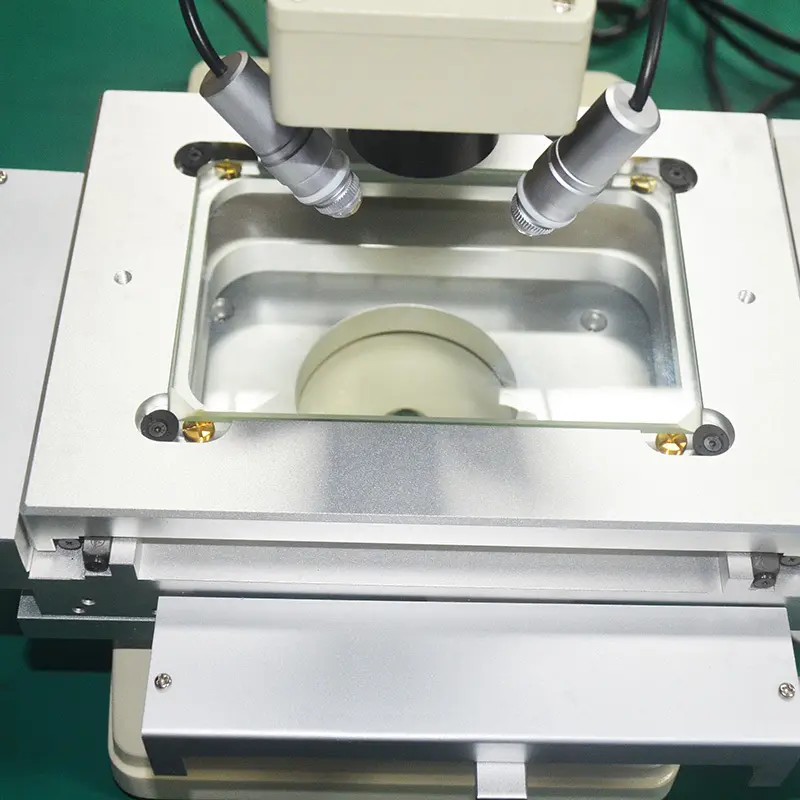

| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |

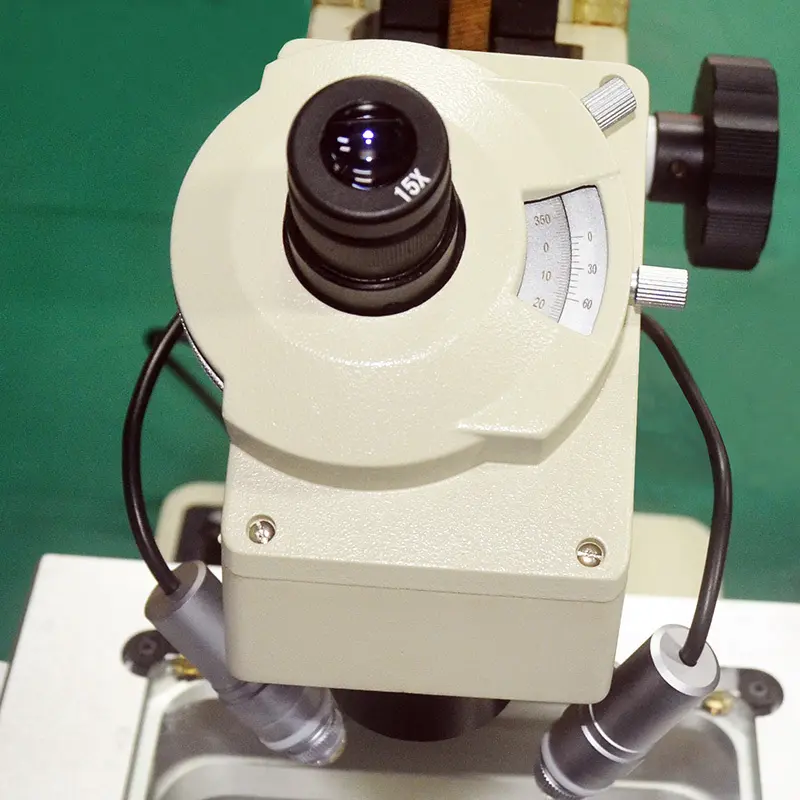

| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |

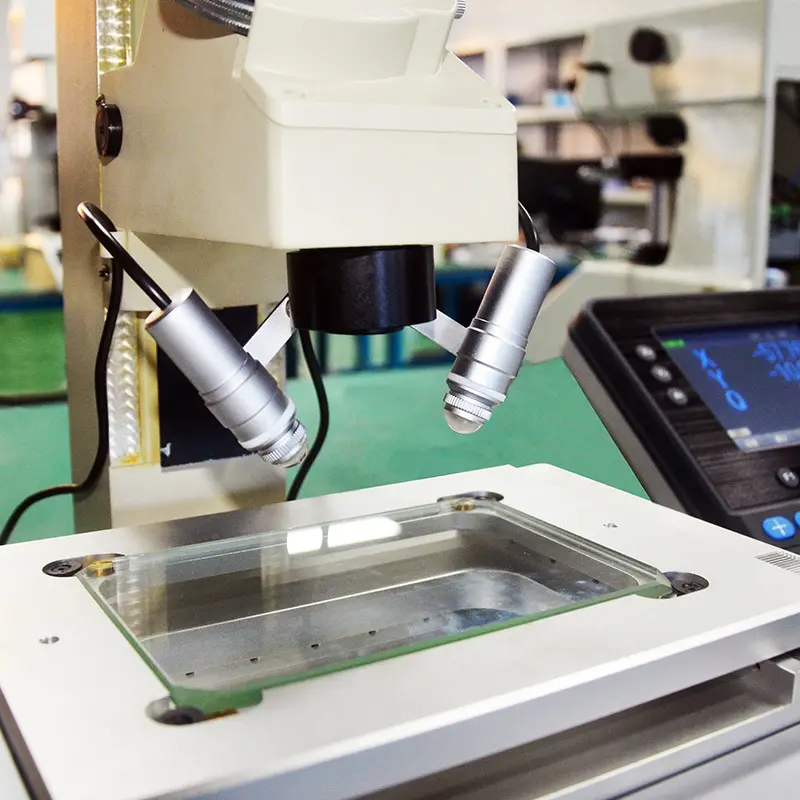

| Surface Illumination | Ring LED illumination brightness adjustable |
| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
