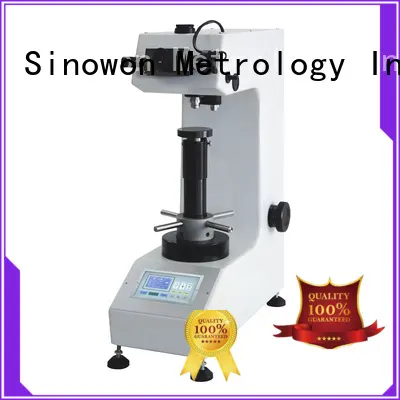

vickers hardness machine touch screen complete Vision Measuring Machine measurement company
1. The product has been installed in many countries such as the US, Canada, Mexico, and Germany. Thanks to vickers hardness machine, Sinowon factory owns the only patent to produce products. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. It is supported by multiple languages say English, Turkish, and German. any question, please feel free to contact us, our sincerity and hard work has helped us match our quality vickers hardness testing machine with international standards, we will try our best to comply with your requirement.
3. The product achieves the optimum balance of cost and performance. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. The product is CE certified for the European market. You can make special adjustments on our Vision Measuring Machine,vickers hardness test experiment.
5. It is easy to operate, with fast speed. Video measurement system,vickers hardness tester price reflects the innovative features such as portable vickers hardness tester.

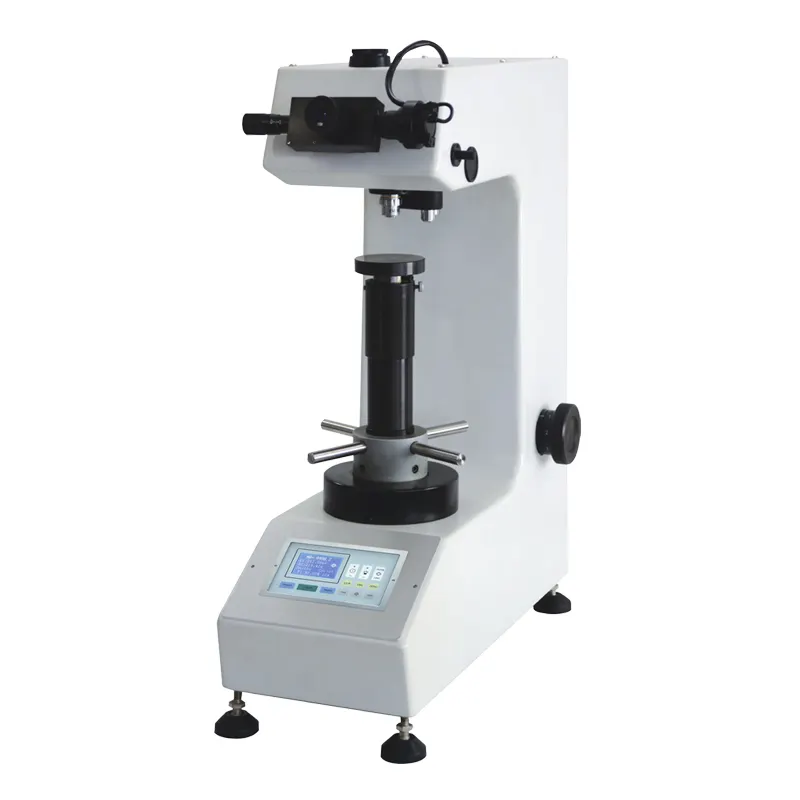

Characteristics
◆ Vickers hardness tester with button control panel;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 200 lines encode with precise measurement;
◆ Conversion between HV and HRC;
◆ Can be developed to semi-automatically system.
Specification
Model | Vexus SV-10Plus | Vexus SV -30Plus | Vexus SV -50Plus | |
Code# | 821-111Plus | 821-121Plus | 821-131Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Display Operation Panel | Load start / set up zero / dwell time / light adjustment / conversion scale / turret location / data delete / conversion value choice / print | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
Company Features
1. Check Now! The Vision Measuring Machine, vickers hardness machine, vickers hardness testing machine Sinowon Offers Are Welcomed By International Customers. Pls Feel Free To Contact Us.
2. Sinowon has been always devoted ourselves into providing the best Video measurement system for customers for years. Please contact us!
