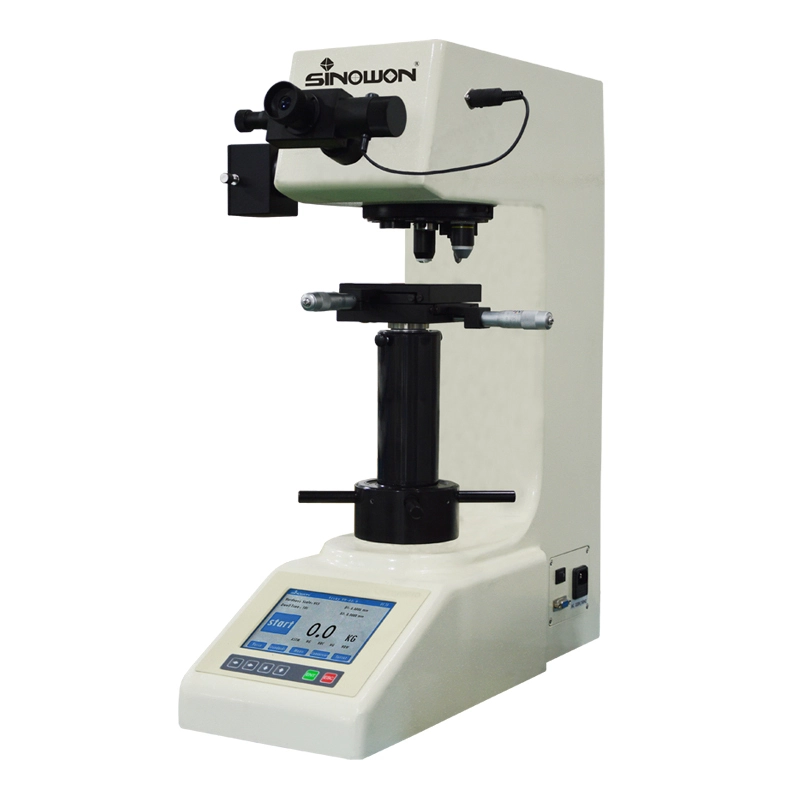

Vicky VB-62.5 Digital Twin Vickers/Brinell Hardness Tester 1
Vicky VB-62.5 Digital Twin Vickers/Brinell Hardness Tester 1

Vicky VB-62.5 Digital Twin Vickers/Brinell Hardness Tester

    oops...!

    no product data.

    Go to homepage

    Vicky VB-62.5 Digital Twin Vickers/Brinell Hardness Tester 2



    Product Feature


    ◆ Vicky VB-62.5 equips with Brinell and Vickers test methods, just replace indenter to do specific testing.

    ◆ Standard delivery comes with 5x and 10x objectives, all of them can do measurement, indenter and objective switches motorized.

    ◆ Available to preset dwell time, illumination brightness.

    ◆ Motorized turret, close loop loading system and touch screen/control panel input.

    ◆ Innovative design of color touch screen, shows force selection, dwell time, hardness conversion, etc.

    ◆ Hardness result can be converted to HK, HBW, HRA, HRC, HV and superficial rockwell scales.

    ◆ Equips with blue tooth module, realize the wireless data transfer to computer and mini printer.

    ◆ In order to avoid operation error, optional measurement software MV-200S and MB is a good choice.



    Application


    ◆ Mainly used to Test very thin materials like foils, thin pieces,coatings layers,etc;

    ◆ Measuring hardness of the surface of a part,small parts or small areas;

    ◆ Measuring individual micro-structures;

    ◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification



    Name

    Digital Twin Vickers/Brinell Hardness Tester

    Model

    Vicky VB-62.5

    Code#

    821-300

    Brinell ForceKgf

    5、6.25、10、15.625、30、31.25、62.5

    N

    49.0、61.3、98.0、153.2、294.2、306.5、612.9

    Brinell Scales HBW5/62.5、HBW2.5/62.5、HBW2.5/31.25、HBW2.5/15.625、HBW2.5/6.25、HBW1/30、HBW1/10、HBW1/5
    Vickers ForceKgf1、2、2.5、3、5、10、20、30、50
    N9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
    Brinell Hardness Range(8-450) HBS,(8-650) HBW
    Vickers Hardness Range8HV-2967HV
    Loading ControlAutomatic (Loading/Dwell/Unloading)
    Turret ControlMotorized Switch
    MagnificationObservation:5x/10x; Measurement:5x/10x
    EyepieceDigital Eyepiece 10x
    Dwell TimeAdjustable 1-60s
    Hardness Conversion Scales

    HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB

    Conversion StandardASTM、DIN
    Operation LanguageChinese, Language, German, Turkish, Korean, etc.
    LCD Screen5.2" Color touch screen,Resolution:640*480
    Max Height of Specimen

    170mm

    Instrument Throat

    130mm

    Instrument Dimension

    535 x190 x585mm

    Packing dimension610 x450 x770mm
    Gross/Net Weight

    47Kg/43Kg

    Power Supply

    AC220V/50HZ;110V/60Hz

    Conform Standard

    GB/T4340, ISO6506/6507,ASTM E10-12/E92   JIS Z2243
