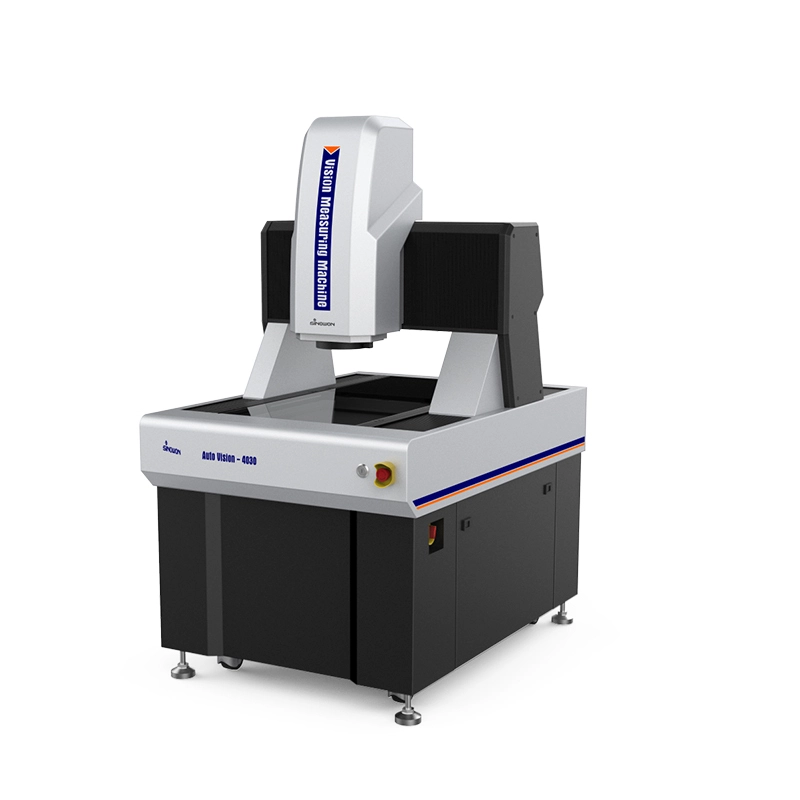

2.5D AutoVision Automatic Video Measuring System A7-AutoVision Series
A7-AutoVision is a high precision moving bridge automatic image measuring instrument designed for high precision and large scale measurements. Using mobile bridge structure, measuring the workpiece stationary, guarantee measure precision and stability, is suitable for the electronics industry, medical apparatus and instruments, measurement of LCD and aerospace and other industries.
Product Characteristics
- Moving bridge type structure, measuring workpiece is fixed;l
- Four-axis CNC fully auto close loop control, auto measurement;l
- Indian Marble base and pillar, good stability;l
- Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;
- Imported HD color camera to meet the needs of clear observation and accurate measurement;
- 8.3x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed;
- With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;
- Powerful function and easy operation iMeasuring Software to enhance quality control;l
- Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’requirements.
Technical Specification
|
Commodity |
High Precision Moving Bridge Automatic Vision Measuring Machine A7-AutoVision Series |
||||
|
Model |
A7-AutoVision-432 |
A7-AutoVision-542 |
A7-AutoVision-652 |
A7-AutoVision-862 |
|
|
X/Y Axis Travel |
(300*400)mm |
(400*500)mm |
(500*600)mm |
(600*800)mm |
|
|
Z Axis Travel |
200mm |
||||
|
X/Y/Z Axis Linear Scale |
European Linear Scale Resolution: 0.1um |
||||
|
Guidance Mode |
P-Class Precision linear guide, double-track double slider guide |
||||
|
Operation Mode |
Joystick controller, Mouse operation, automatic detection program |
||||
|
Accuracy* |
E1x,y |
1.8+L/200(um) |
|||
|
E1xy |
3.0+L/200(um) |
||||
|
E1z |
3.0+L/200(um) |
||||
|
Repeatability |
2um |
||||
|
Illumination System |
Contour |
LED parallel contour illumination |
|||
|
Surface |
0~255 Stepless adjustable 5-ring 8-division LED surface illumination |
||||
|
Video System** |
1/1.8" High-Definition Digital Color Camera |
||||
|
8.3X Motorized Zoom Lens Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21” monitor) |
|||||
|
Measuring Software |
iMeasuring |
||||
|
Operating System |
Support WIN10/11-32/64 bit operating system |
||||
|
Language |
English, Simplified Chinese, traditional Chinese, other languages can be added |
||||
|
Working Environment |
Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz |
||||
|
Power Supply |
AC220V/50Hz; 110V/60Hz |
||||
|
Dimension(WxDxH) |
(1195*832*1579)mm |
(1463*940*1591)mm |
(1568*1040*1591)mm |
(1818*1157*1590)mm |
|
|
Packing Size(WxDxH) |
(1380*1170*1910)mm |
(1690*1300*2000)mm |
(1800*1400*2000)mm |
(2300*1700*2000)mm |
|
|
Net Weight |
650Kg |
780Kg |
1380Kg |
2000Kg |
|
Note：
L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
Product Configuration Model Description（Example with A7-AutoVision-542）：
|
Product Category |
2.5D |
3D |
2.5D |
3D |
|
Commodity |
2.5D Automatic Vision Measuring Machine |
3D Automatic Contact & Vision Measuring Machine |
2.5D Automatic Laser-Scan & Vision Measuring Machine |
3D Automatic Multisensory Measuring Machine |
|
Model |
A7-AutoVision-542A |
A7-AutoVision-542B |
A7-AutoVision-542C |
A7-AutoVision-542D |
|
Type |
A |
B |
C |
D |
|
Significance |
Optical Zoom-lens Sensor |
Zoom-lens Sensor and Contact Probe Sensor |
Zoom-lens Sensor and Lazer Sensor |
Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor |
|
Contact Probe |
Without |
MCP-Kit1 |
Without |
MCP-Kit1 |
|
Lazer Module |
Without |
Without |
Omron Lazer |
Omron Lazer |
|
Software Version |
iMeasuring4.1 |
iMeasuring4.2 |
iMeasuring5.0 |
iMeasuring5.1 |
Moving Bridge Automatic Vision Measuring Machine Models and Specifications：
|
Model |
Code# |
Model |
Code# |
Model |
Code# |
|
A7-AutoVision-432A |
523-180H |
A7-AutoVision-542A |
523-180J |
A7-AutoVision-652A |
523-180K |
|
A7-AutoVision-432B |
523-280H |
A7-AutoVision-542B |
523-280J |
A7-AutoVision-652B |
523-280K |
|
A7-AutoVision-432C |
523-380H |
A7-AutoVision-542C |
523-380J |
A7-AutoVision-652C |
523-380K |
|
A7-AutoVision-432D |
523-480H |
A7-AutoVision-542D |
523-480J |
A7-AutoVision-652D |
523-480K |
|
Model |
Code# |
Model |
Code# |
Model |
Code# |
|
A7-AutoVision-862A |
523-180L |
A7-AutoVision-1082A |
523-180M |
A7-AutoVision-12102A |
523-180N |
|
A7-AutoVision-862B |
523-280L |
A7-AutoVision-1082B |
523-280M |
A7-AutoVision-12102B |
523-280N |
|
A7-AutoVision-862C |
523-380L |
A7-AutoVision-1082C |
523-380M |
A7-AutoVision-12102C |
523-380N |
|
A7-AutoVision-862D |
523-480L |
A7-AutoVision-1082D |
523-480M |
A7-AutoVision-12102D |
523-480N |
|
Model |
Code# |
Model |
Code# |
Model |
Code# |
|
A7-AutoVision-15122A |
523-180P |
A7-AutoVision-18122A |
523-180Q |
A7-AutoVision-26162A |
523-180R |
|
A7-AutoVision-15122B |
523-280P |
A7-AutoVision-18122B |
523-280Q |
A7-AutoVision-26162B |
523-280R |
|
A7-AutoVision-15122C |
523-380P |
A7-AutoVision-18122C |
523-380Q |
A7-AutoVision-26162C |
523-380R |
|
A7-AutoVision-15122D |
523-480P |
A7-AutoVision-18122D |
523-480Q |
A7-AutoVision-26162D |
523-480R |
Moving Bridge Automatic Vision Measuring Machine Measurement Space Guide Table：
|
Travel |
Model |
Accuracy |
X Axis Travel mm |
Y Axis Travelmm |
Z Axis Standard Travel mm |
Z Axis Maximum Custom Travel mm |
|
|
E1x,y |
E1z |
||||||
|
300X400X200 |
A7-AutoVision-432 |
1.8+L/200 |
3.0+L/200 |
300 |
400 |
200 |
400 |
|
400X500X200 |
A7-AutoVision-542 |
400 |
500 |
200 |
400 |
||
|
500X600X200 |
A7-AutoVision-652 |
500 |
600 |
200 |
400 |
||
|
600X800X200 |
A7-AutoVision-862 |
600 |
800 |
200 |
400 |
||
|
800X1000X200 |
A7-AutoVision-1082 |
2.0+L/200 |
4.0+L/200 |
800 |
1000 |
200 |
400 |
|
1000X1200X200 |
A7-AutoVision-12102 |
2.5+L/200 |
4.0+L/200 |
1000 |
1200 |
200 |
400 |
|
1200X1500X200 |
A7-AutoVision-15122 |
3.0+L/200 |
5.0+L/200 |
1200 |
1500 |
200 |
400 |
|
1200X1800X200 |
A7-AutoVision-18122 |
3.5+L/200 |
5.0+L/200 |
1200 |
1800 |
200 |
400 |
|
1500X2000X200 |
A7-AutoVision-20152 |
4.0+L/200 |
5.0+L/200 |
1500 |
2000 |
200 |
400 |
|
1600X2600X200 |
A7-AutoVision-26162 |
1600 |
2600 |
200 |
400 |
||
