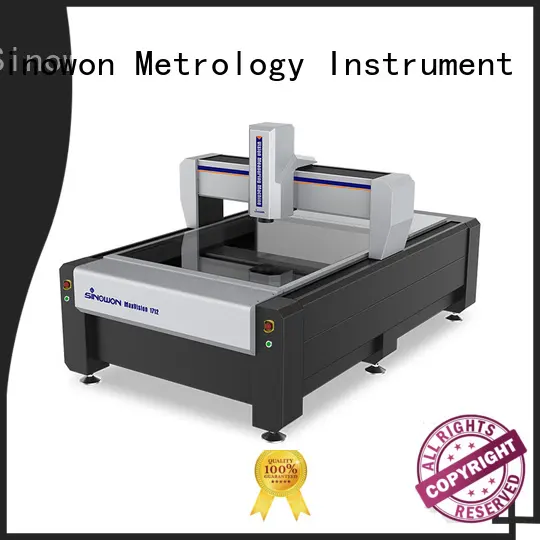

2.5D MaxVision Automatic Video Measuring System
1. metrology equipment from Sinowon Innovation Metrology Manufacture Limited. is safe and harmless.
2. Our technical professionals are well aware of the quality standards set by the industry and test the products in a vigilant manner.
3. With advanced introduced production equipment for metrology equipment , our production comes out of high efficiency.
4. Our professional and friendly customer service team is able to solve questions about metrology equipment .
Product Feature
◆ Moving bridge structure, measurement workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ “00” grade “JINANQING”marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.001mm, high accuracy, great stability;
◆ Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
◆ Optional laser probe, it can also be customized according to customer request;
◆ Optional 3D Touch probe is available
.
Specification
| Commodity | 2.5D Super-travel-size Automatic Vision Measuring Machine | |||||||||
| Model | MaxVision 1008 | MaxVision 1210 | MaxVision 1512 | MaxVision 1712 | ||||||
| Code# | 526-210 | 526-220 | 526-230 | 526-240 | ||||||
| X-Y axis Travel(mm) | 1000x800mm | 1200x1000mm | 1500x1200mm | 1700x1200mm | ||||||
| Z axis Travel(mm) | 200mm | |||||||||
| X/Y/Z 3-axis Linear Scale | Imported Open Linear Scale, resolution：1mm | |||||||||
| Guidance Method | Imported P grade linear guide，double-track double slider guide | |||||||||
| Operation Method | Joystick controller, Mouse operation, automatic detection program | |||||||||
| Accuracy* | XY Axis：≤4+L/200(um) | |||||||||
| Z Axis：≤5+L/200 (um) | ||||||||||
| Repeatability | 5um | |||||||||
| Video System** | High definition 1/2" Color CCD Camera, Image navigation system | |||||||||
| 6.5X Automatic Zoom Lens; | ||||||||||
| Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | ||||||||||
| Field of View mm *** | Lens | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | |||
| 1/2"CCD | 11.43x9.14x6.86 | 8.0x6.4x4.8 | 4.0x3.2x2.4 | 2.67x2.13x1.6 | 2.00x1.6x1.2 | 1.78x1.42x1.07 | ||||
| Illumination | 5-ring 8-division 0~255 grade continue adjustable | |||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | |||||||||
| Load Capacity | 50Kg | |||||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | |||||||||
Standard Delivery:
| No | Product Name | No | Product Name |
| 1 | Automatic measuring software | 8 | 6.5X Automatic Zoom Lens |
| 2 | Optical calibration plate | 9 | 5-ring 8-division LED illumination |
| 3 | Motion controller | 10 | Imported 1/2“ colorful industry camera |
| 4 | Imported Lineal scale 0.001mm | 11 | Video Capture card |
| 5 | Operating handle | 12 | PC and monitor |
| 6 | Certification of qulity | 13 | Manual opeartion |
Optional Delivery:
| No | Product Name | No | Product Name |
| 1 | Import MCP probe | 4 | Coaxial zoom lens |
| 2 | Imported Laser sensor | 5 | 2X objective lens |
| 3 | 3D measuring software | 6 | 0.5X objective lens |
