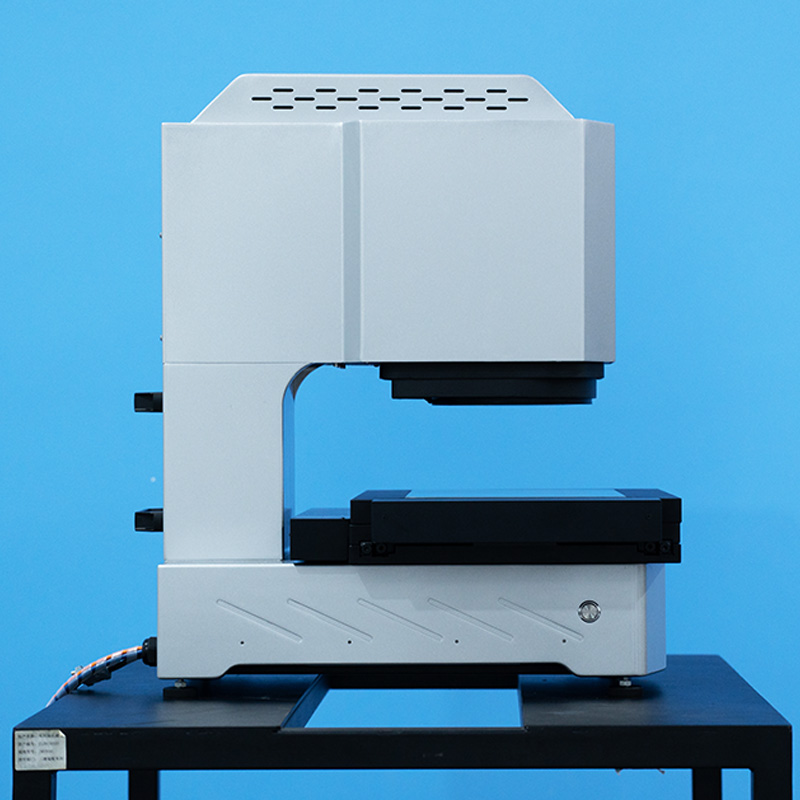

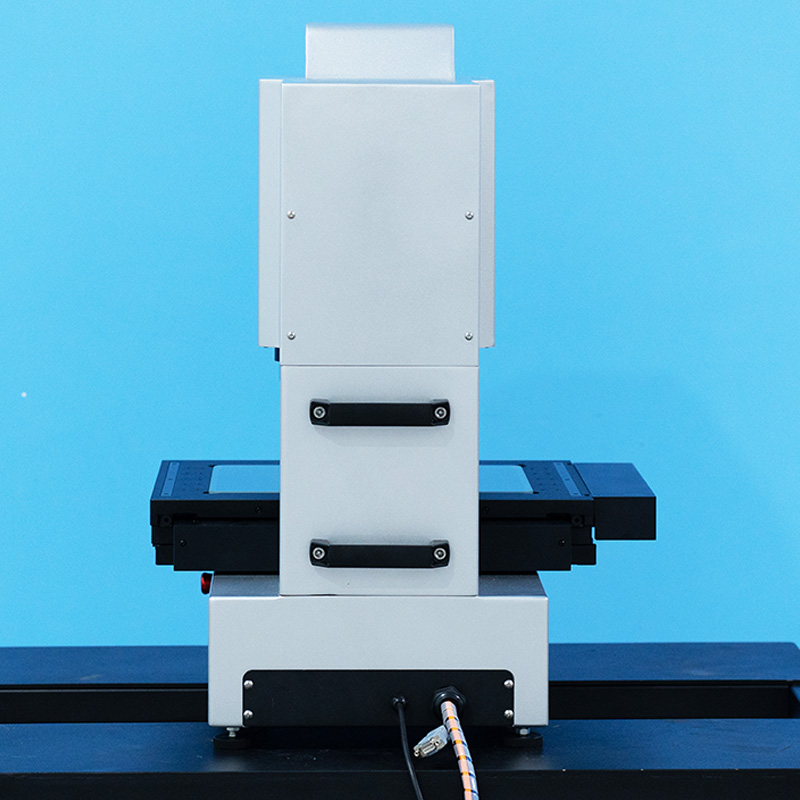

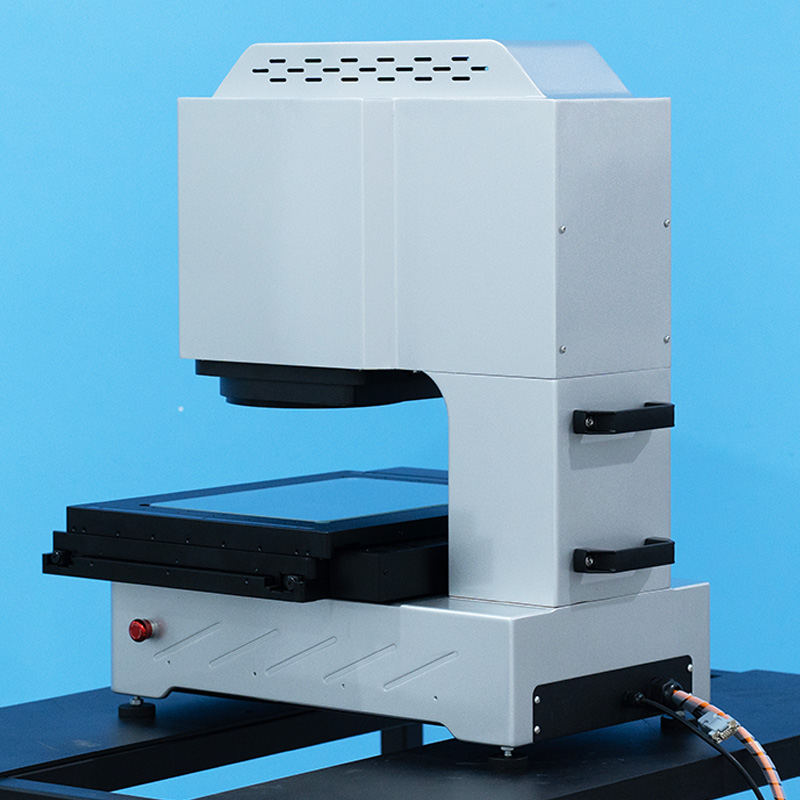

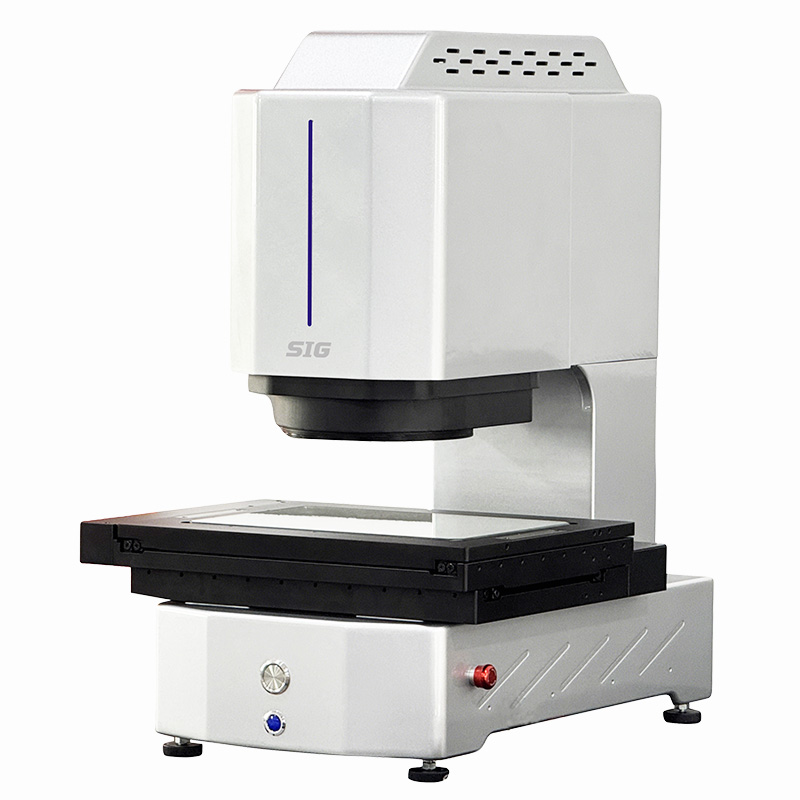

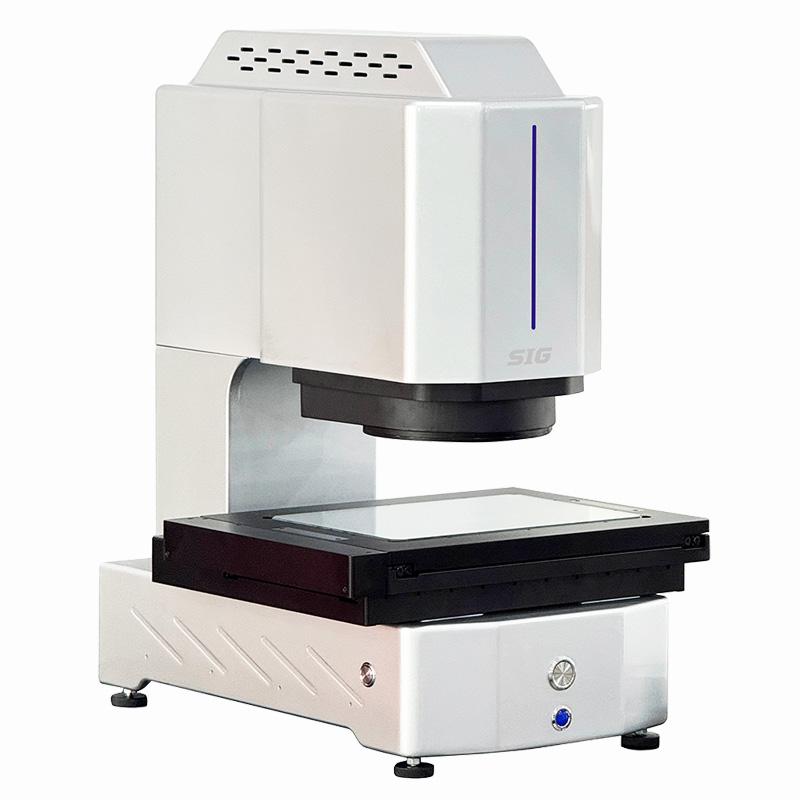

Instant Vision Measuring System QVS series
The measuring sample does not need to be positioned, the sample can be placed at will, the measuring part can be automatically identified, and the measuring efficiency is high, and stable results can be easily obtained with one key. Widely used in 3C, IT, photovoltaics, new energy batteries, medical care, automobiles, semiconductors, PCB, precision machining, molds, die cutting, stamping, rubber and plastics, etc., it provides comprehensive dimensional measurement and quality control solutions for various enterprises and institutions.
Product Characteristics
- Brand-new streamlined design, neat, intuitive and generous appearance;
- Intelligent light source control, software automatically fills light to ensure the consistency of light source;
- Touch the induction switch to start the measurement to prevent finger pain caused by pressing the mechanical button for a long time;
- Using 2000W ultra-high definition black-and-white digital CCD imaging effect is very good, the frame rate is fast and there is no smear;
- Bilateral telecentric lens, large field of view, small distortion, no perspective error, can be measured without focusing, and dual-field telecentric lens can be selected;
- Measurement software: The powerful one-button rapid measurement software is adopted to measure accurately and quickly, providing users with a perfect measurement solution.
Product Features
- Automatic measurement: For workpieces that need repeated measurement, the automatic repeated measurement mode can be used. When cooperating with the mechanical arm, the automatic measurement beat can be set;
- Simple calibration: only one function calibration key is needed, and multi-angle, multi-directional and full-field calibration can ensure the measurement accuracy;
- Easy to use: humanized and intelligent software design, simple, easy to learn, easy to use and easy to use without too much operation by users.
- Measurement function: two-dimensional dimension measurement such as point, line, circle, arc, angle, point-line distance, line-line distance and circle distance;
- Automatic saving: the measured data results are automatically saved to the computer, including the measurement date, product batch number and other information;
- Profile scanning: scan the profile quickly and export DXF file.
Technical Specification
|
Commodity |
Instant Vision Measuring System QVS Series |
||||
|
Model |
QVS-120B |
QVS-202 |
QVS-302 |
QVS-403 |
|
|
Code# |
500-210 |
500-220 |
500-230 |
500-240 |
|
|
Measuring Range XYZ(mm) |
X (mm) |
80 |
200 |
300 |
four hundred |
|
Y (mm) |
60 |
200 |
200 |
300 |
|
|
Z (mm) |
75 |
75 |
75 |
75 |
|
|
FOV (mm) |
High precision measurement mode |
20.5*13.5 |
140*160 |
240*160 |
340*260 |
|
Wide FOV measurement mode |
80*60 |
200*200 |
300*200 |
400*300 |
|
|
Focusing Method |
Auto-focusing |
||||
|
Lens depth of field |
8mm |
||||
|
Instrument Bearing |
0~5Kg |
||||
|
Measurement Accuracy (um) |
High Precision |
±(2.5+L/200) |
|||
|
Wide FOV |
±(4.0+L/200) |
||||
|
Repetition Accuracy (um) |
Stage Not Moved |
±2.0 |
|||
|
Platform Movement |
±4.0 |
||||
|
Video System |
1" 20MP CCD |
||||
|
Bilateral telecentric lens, optional double-field telecentric lens. |
|||||
|
Optical magnification: 0.16X/0.64X |
|||||
|
Light source |
Contour Light |
LED parallel bottom light |
|||
|
Surface Light |
Ring light source |
||||
|
Coaxial Light |
Optional coaxial light |
||||
|
Software System |
Measurement software of full-automatic scintillation counter |
||||
|
Working Environment |
The temperature is 20℃ 2℃, and the temperature change is less than 1℃/hr; Humidity 30% ~ 80% RH; Vibration < 0.02g's, ≤15Hz. |
||||
|
Power Supply |
220V/50Hz； 110V/60Hz |
||||
