    Cantilever Instant Vision Measuring System IVS Series 7

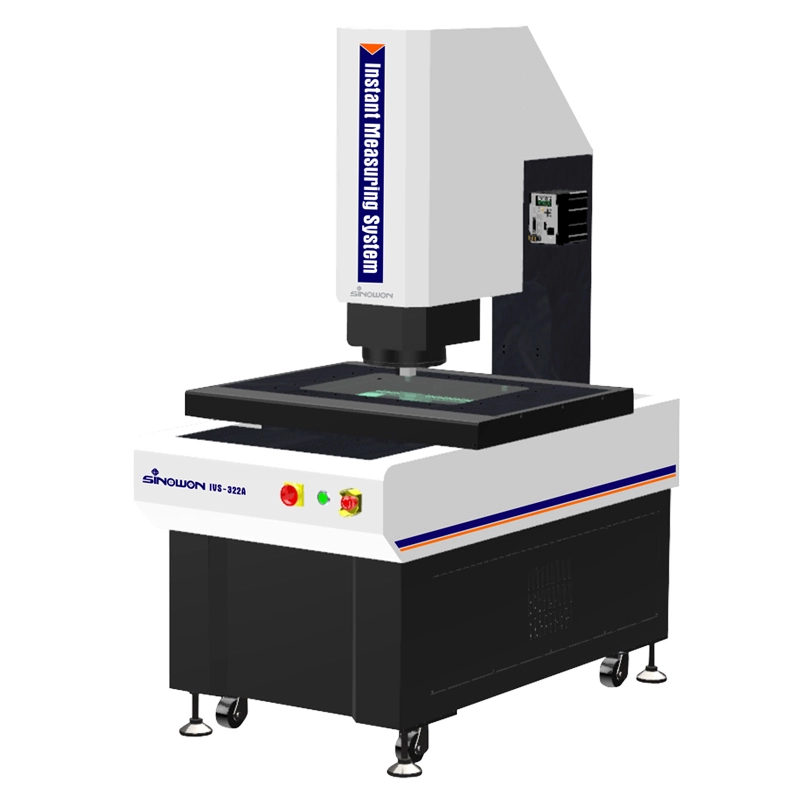

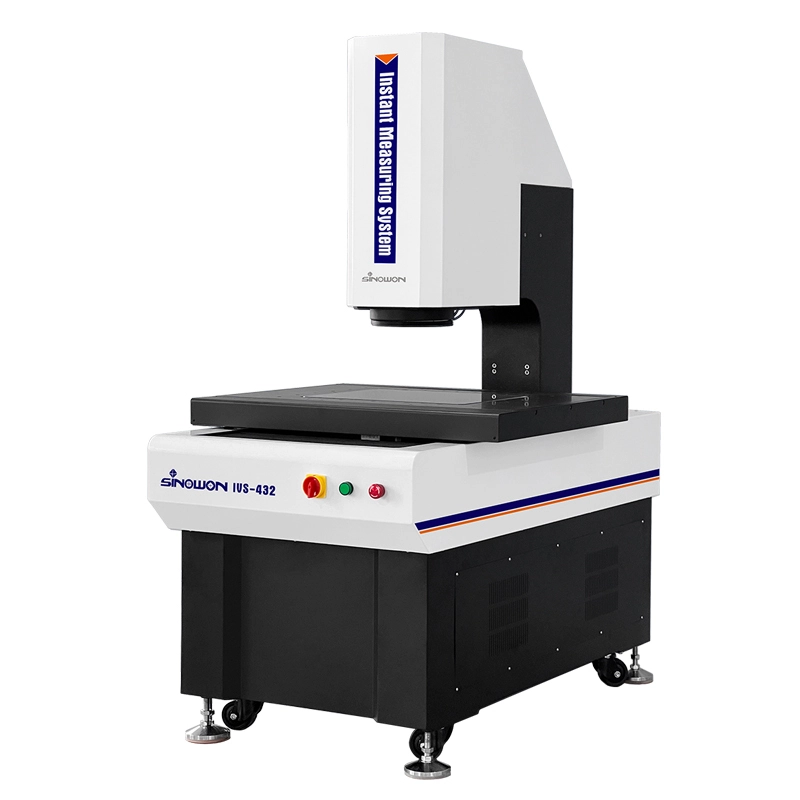

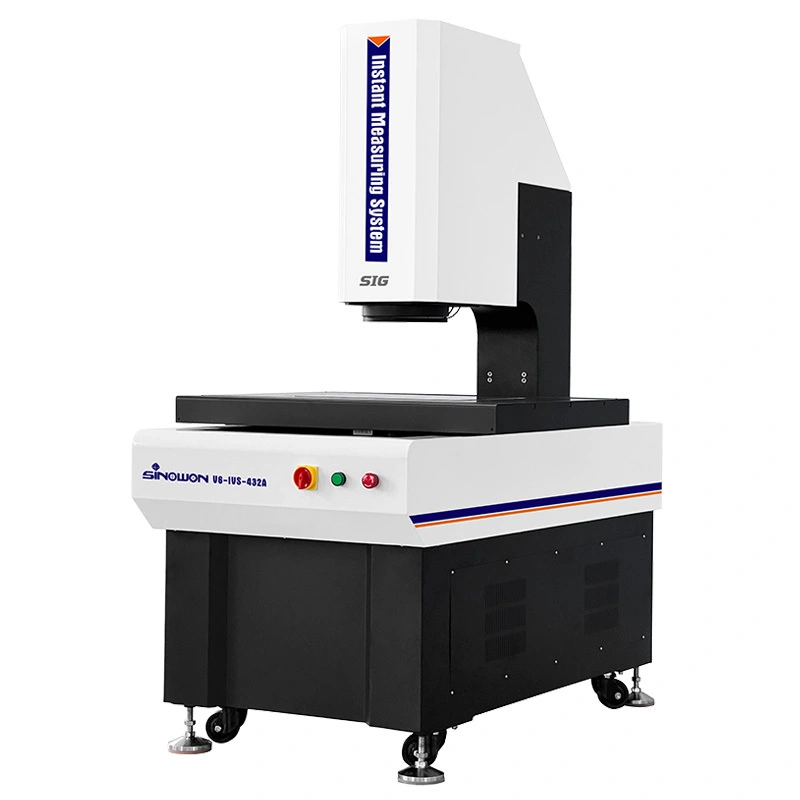

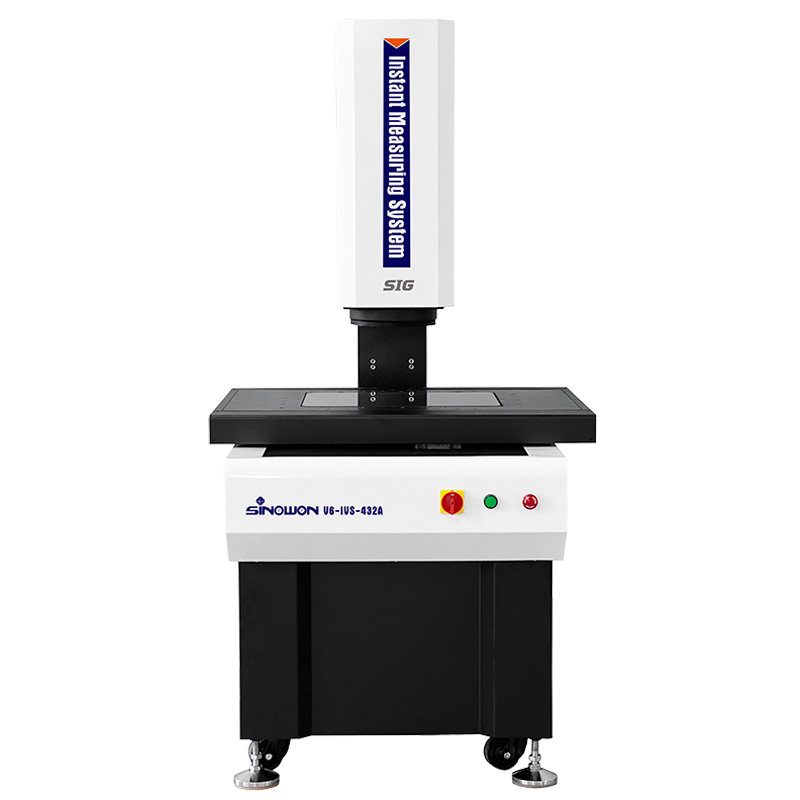

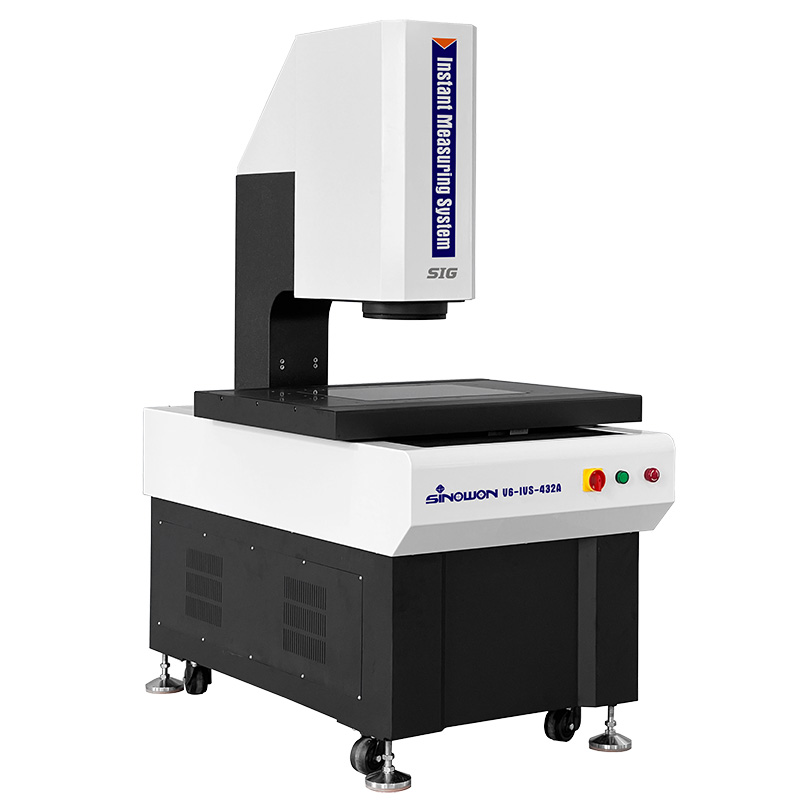

    IVS series is cantilever fully automatic instant vision measuring machine with double-magnification lens system developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.



    Product Characteristics

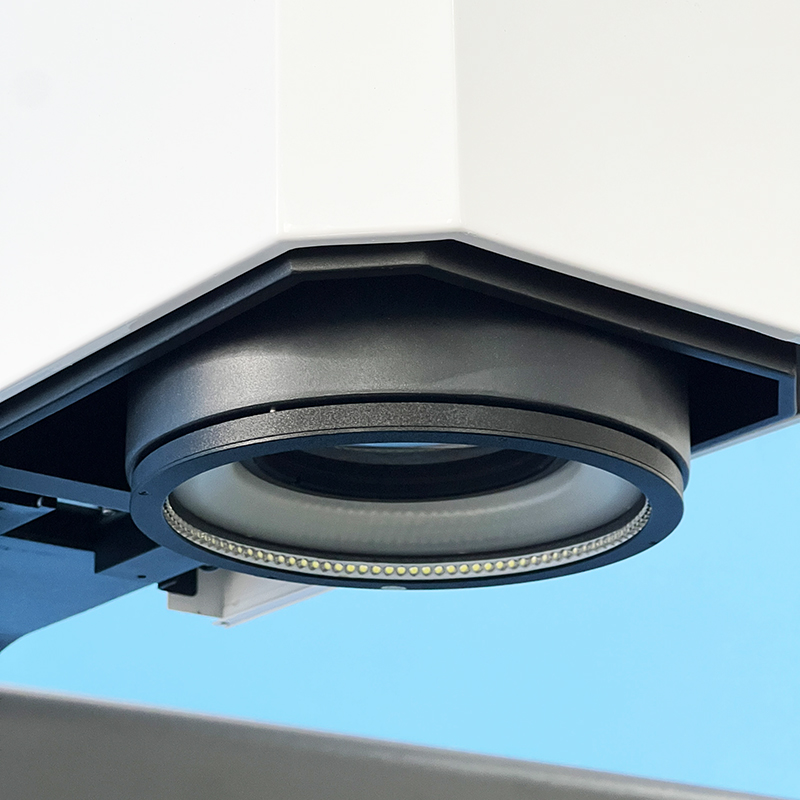

     Equipped with a 20 million pixel camera and a dual telecentric lens with double magnification, the imaging quality is excellent;

     The high telecentricity design below 0.02° ensures measurement accuracy for products with significant height differences;

     The low TV distortion below 0.01% and the uniformity of distortion over the entire image ensure the dynamic repeatability accuracy of the measurement;

     The dual magnification design enables efficient measurement with a large field of view and high-precision measurement with high magnification, satisfying customers' dual needs for efficiency and accuracy;

     The XYZ three-axis CNC fully automatic precision control ensures accurate positioning;

     The use of an Indian marble base and column provides good stability;

     Precision linear guides, ground ball screws, AC servo motors, etc., ensure the accuracy and stability of the motion system;

     The 0.5μm high-precision linear scale ensures the positioning and measurement accuracy of the system;

     Equipped with various light sources and an intelligent lifting function to adapt to various measurement scenarios;

     The powerful and easy-to-use Geomea measurement software enhances quality control;

     Automatic measurement programs can be set up to efficiently and quickly complete batch measurements;

     Optional non-contact white light sensors can be used to measure thickness, flatness, etc.



    Technical Specification


    Commodity

    Cantilever Instant Vision Measuring System

    Model

    IVS-322

    IVS-432

    X/Y Axis Travel(mm)

    (300*200)mm

    (400*300)mm

    Dimension(WxDxH)

    (1237*740*1664)mm

    (1337*840*1664)mm

    Packing Size

    (1500*960*1900)mm

    (1500*1060*1900)mm

    Weight

    380Kg

    600Kg

    Axis Travel(mm)

    200mm

    X/Y/Z-3 axis Linear Scales

    Imported Linear Scale Resolution: 0.5um

    Guidance Mode

    Precision linear guide,double-track double slider guide.

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program

    Load Capacity

    <25Kg

    Working Environment

    Temperature 20℃±2℃,Humidity Range<2℃/hr,

    Humidity 30~80%, Vibration<0.002g, <15Hz

    Power Supply

    220V/50Hz/10A

    Measuring Software

    Geomea

    Camera

     1’” 20Mpixel B/W Camera

    Dual Telecentric Lens

    Double Rate Dual Telecentric Lens

    Magnification

    0.16X

    0.64X

    Image Measuring

    Repeatability

    No Moving

    ±1μm

    ±0.5μm

    Moving

    ±2μm

    ±1.5μm

    Accuracy*

    Without Binding

    ±3.9μm

    ±2μm

    Binding

    ±7μm

    ±4μm

    Working distance

    145±2mm

    145±2mm

    Telecentricity

    <0.02°

    <0.02°

    Depth of Field

    6mm@25 lp/mm

    0.6mm@64 lp/mm

    Field of View(mm)(D*H*V)

    1”

    82*55*100

    21*14*25

    53*44*69

    13*11*17

    2/3”

    Resolution

    20um

    7.8um

    Illumination System

    Contour

    LED parallel contour illumination

    Surface

    0~255 levels continuously adjustable LED illumination
