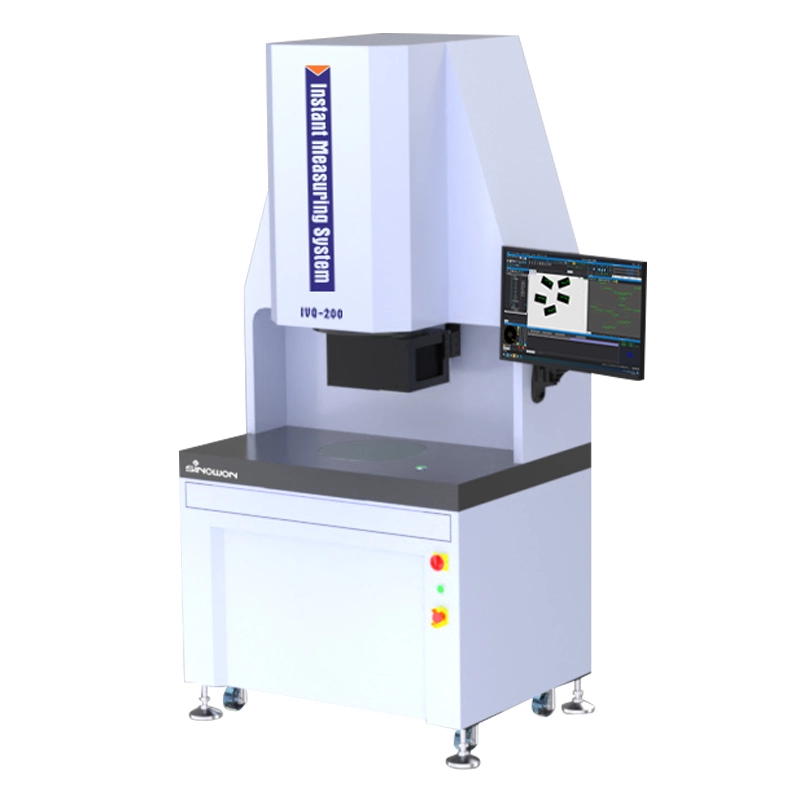

Instant Vision Measuring System IVQ-200 1

Instant Vision Measuring System IVQ-200 2

Instant Vision Measuring System IVQ-200 3

Instant Vision Measuring System IVQ-200

Model:

IVQ-200

Code#:

500-200

Accuracy:

±(3+L/50) μm

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Instant Vision Measuring System IVQ-200 4

Product Characteristics

◆ IVQ-200 is a Sinowon fantastic instant vision measuring system with large FOV size: 190x127x229mm and long working distance 355mm with DOF: 10mm, it can measure the 2D size with one-shot function.

◆ IVQ-200 not only can measure the size of points, lines, circles, arcs, angles, radii, diameters, areas, and perimeters, but also can measure the 2D geometric elements such as straightness, roundness, concentricity, perpendicularity, symmetry, parallelism, and position, etc

Technical Specification

Commodity	Instant Vision Measuring System
Model	IVQ-200
Code#	500-200
Field of View (mm)	L190W127A229mm
Z-axis moving mode	Automatic
Magnification of Bilateral telecentric lens	0.069X
Depth of Field (mm)	10mm
Digital Camera	Monochrome 1”/20MPixel
Machine bearing (Kg)	25~50Kg
Measurement Accuracy	±(3+L/50) μm
Repeatability (μm)	±3.0μm
Light Source	LED parallel contour light source
Software system	Sinowon Geomea IVS Version
Operating System	Support WIN10/11-32/64 bit operating system.
Computer System	Dell 3000MT with 27 LCD monitor
Operating Language	Russian, English, Chinese, etc
Z-axis moving range (mm)	80mm
Z-axis working distance	355mm
Dimension (mm)	10377992057mm
Net Weight	330Kg
Working Environment	The temperature is 20℃ 2℃, and the temperature change is less than 1℃/Hr; Humidity 30%~80%RH; Vibration <<0.02g's, ≤15Hz
Power Supply	220V/50Hz/10A; 110V/60Hz/10A
