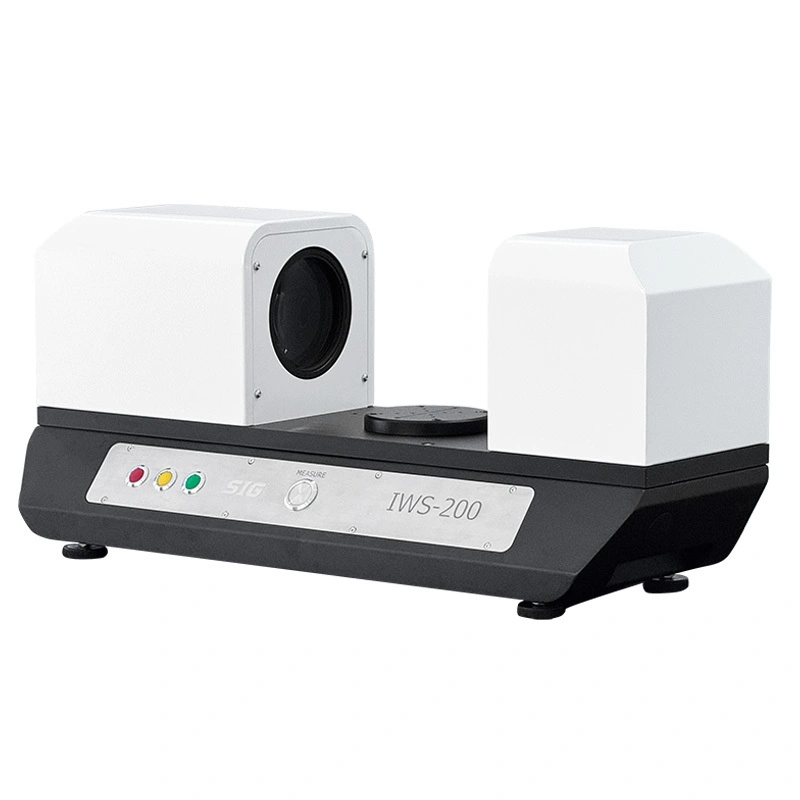

Horizontal Instant Vision Measuring System IWS-200
With the characteristic of large-field vision flash measurement, high accuracy, automation, the telecentric imaging and intelligent image processing software cooperate together to measure, any measuring task is become supremely efficient. Just place the workpiece in the effective measuring range and then press the button, all two-dimensional dimensions of the workpiece will be automatically exported after instantaneous completion of the test data.
Product Characteristics
◆ Image processing algorithms such as sub-pixel edge detection, automatic deburring and abnormal points removal, and least squares regression are used to ensure the test accuracy.
◆ It breaks the convention of dimensional measurement by enabling overall imaging measurement without moving the test platform, featuring fast speed and high accuracy.
◆ The shape and direction of the sample can be automatically memorized without repeated positioning. The workpiece can be measured by pressing only one button after placement.
◆ It is suitable for batch measurement as the equipment will automatically measure after automatically identifying multiple workpieces and test elements.
◆ The measurement values are recorded and output automatically, and then statistics and analysis will be carried out to make the application of the test data more convenient.
◆ High depth of field, low distortion telecentric lenses are used to ensure clear edge images, no distortion, restoring the true product size, eliminating measurement errors, and ensuring measurement accuracy and repeatability.
◆ Efficient batch measurement greatly shortens measuring time, improves measuring efficiency, reduces labor costs, and eliminates human errors.
Technical Specification
|
Commodity |
Horizontal Instant Vision Measuring System |
|
Model |
IWS-200 |
|
Code # |
500-200 |
|
Measuring Range |
φ100mm, Stage Outer Diameter 120mm |
|
Working Distance |
145mm (Fixed, to stage center) |
|
Measurement Accuracy |
±2.0μm |
|
Repetition Accuracy |
±0.5μm |
|
Image Sensor (pixels) |
1-inch USB3.0 Camera, 2000W Pixels |
|
Lighting System |
Parallel bottom light source, surface ring light optional |
|
Lens |
Single Magnification Telecentric Lens |
|
Depth of Field |
12mm |
|
Work Environment |
Temperature：0°~45°C |
|
Humidity：45% ~75%RH |
|
|
Vibration：<0.002g，＜15Hz |
|
|
Measurement Software |
Geomea Dedicated One-Button Flash Measurement Software |
|
Test Time |
<5S (less than 100 test sizes) |
|
Output Data |
Automatic Output Test Data Report |
|
Measurement Function |
2D measurement: point, line, circle, arc, angle, distance, ellipse, O-ring, groove, rectangle, parallelism |
|
Auxiliary Functions |
Intersection, Parallel, Vertical, Tangential, Equivalent |
|
Geometric Tolerance |
Dimensional tolerance, position tolerance, form and position tolerance (position, concentricity, perpendicularity, parallelism, true roundness, true straightness, contour, etc.) |
|
Machine Carrier Capacity |
20Kg |
|
Operating System |
Support for WIN10, 32/64-bit operating system |
|
Operating Language |
English, Simplified Chinese, Traditional Chinese, other languages can be added |
|
Power Supply |
220V/50Hz/10A |
|
Outline Dimensions (DWH) |
(715*263*318) mm (excluding display) |
|
Net Weight |
31Kg |
Industry Applications
It is widely used in the rapid measurement in batches of small-sized products and parts such as machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical devices, clocks, cutting tools, etc.
