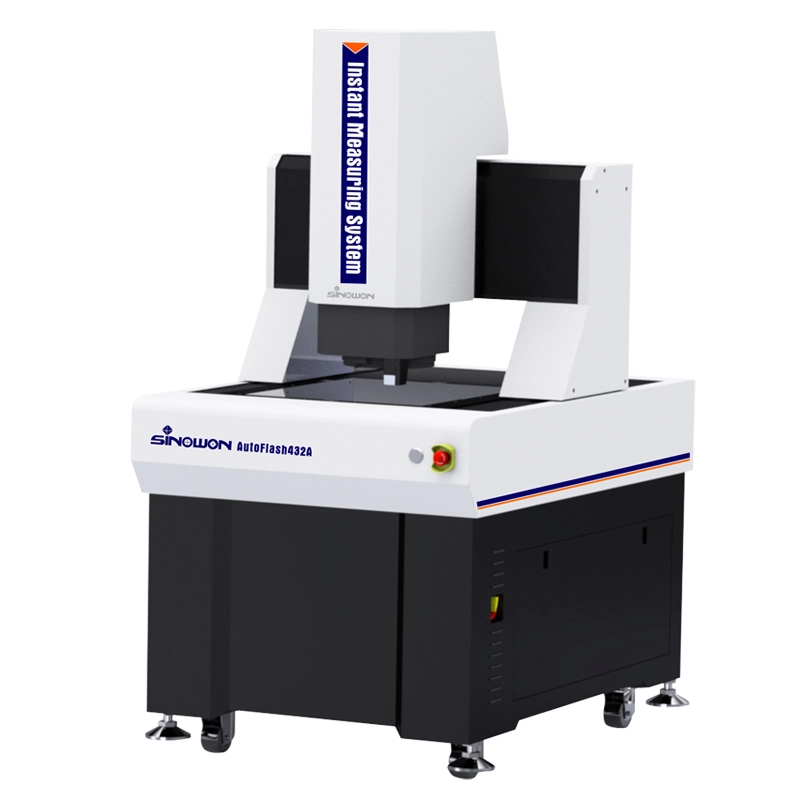

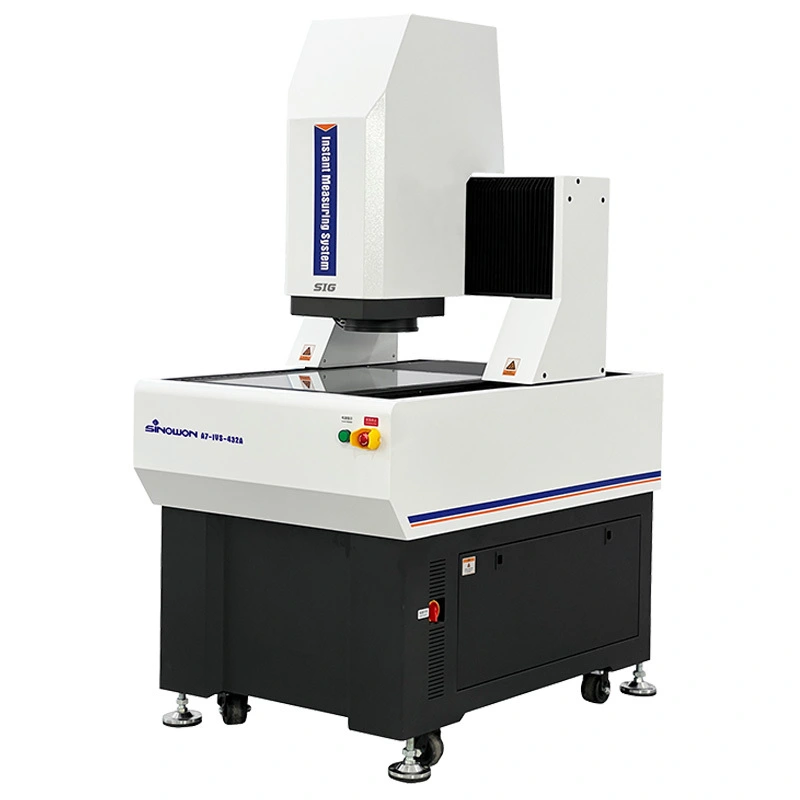

Mobile Bridge Instant Vision Measuring System A7-IVS Series 1

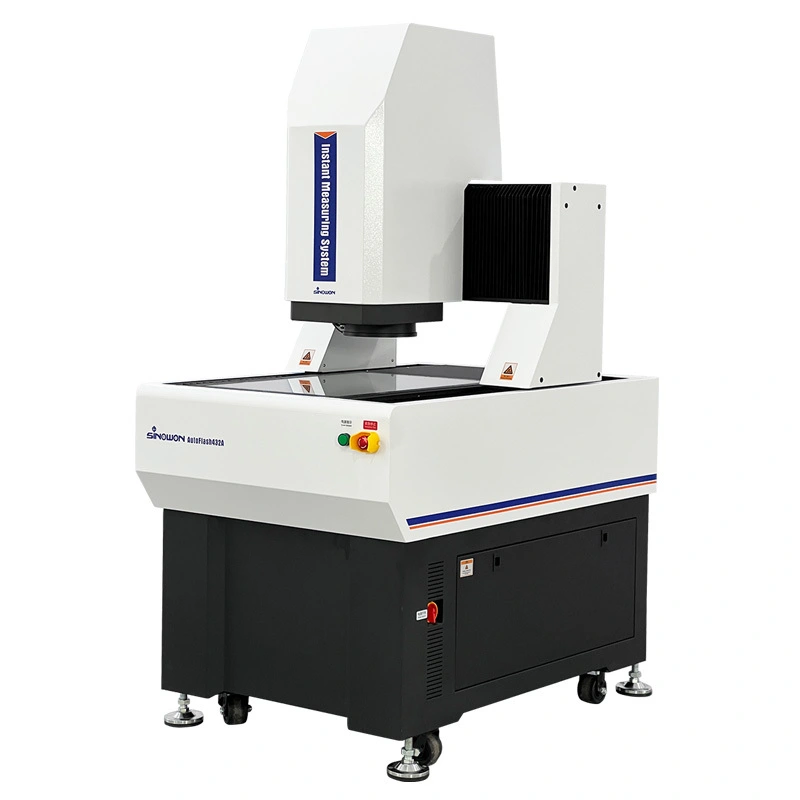

Mobile Bridge Instant Vision Measuring System A7-IVS Series 2

Mobile Bridge Instant Vision Measuring System A7-IVS Series 3

Mobile Bridge Instant Vision Measuring System A7-IVS Series

Model:

A7-IVS-432A

Code#:

503-120H

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GBT 24762' ISO30160

Certificate:

Gost CE

Inquiry

Write a Review

Mobile Bridge Instant Vision Measuring System A7-IVS Series 4

The A7-IVS series is a high-precision, fully automatic Instant Vision Measuring System with a gantry structure, developed specifically for GD&T measurements with three-axis automatic electric control. It is equipped with automatic focusing, automatic lighting control, and automatic movement configuration of both hardware and software, allowing for fast and accurate measurement of linear and geometric dimensions. The mobile bridge structure ensures that the measured workpiece remains stationary, ensuring measurement accuracy and stability, making it suitable for measuring in industries such as electronics, medical equipment, LCD, and aerospace.

Product Characteristics

◆ Equipped with a 20 million pixel camera and a dual telecentric lens with double magnification, the imaging quality is excellent;

◆ The high telecentricity design below 0.02° ensures measurement accuracy for products with significant height differences;

◆ The low TV distortion below 0.01% and the uniformity of distortion over the entire image ensure the dynamic repeatability accuracy of the measurement;

◆ The dual magnification design enables efficient measurement with a large field of view and high-precision measurement with high magnification, satisfying customers' dual needs for efficiency and accuracy;

◆ The XYZ three-axis CNC fully automatic precision control ensures accurate positioning;

◆ The use of an Indian marble base and column provides good stability;

◆ Precision linear guides, ground ball screws, AC servo motors, etc., ensure the accuracy and stability of the motion system;

◆ The 0.1μm high-precision linear scale ensures the positioning and measurement accuracy of the system;

◆ Equipped with various light sources and an intelligent lifting function to adapt to various measurement scenarios;

◆ The powerful and easy-to-use Geomea measurement software enhances quality control;

◆ Automatic measurement programs can be set up to efficiently and quickly complete batch measurements;

◆ Optional non-contact white light sensors can be used to measure thickness, flatness, etc.

Technical Specification

Commodity				Mobile Bridge Instant Vision Measuring System A7-IVS Series
Model				A7-IVS-432	A7-IVS-542
X/Y Axis Travel（mm）				(400*300)mm	(500*400)mm
Dimension(WxDxH)				(11958321579)mm	(14639401591)mm
Packing Size				(138011701910)mm	(169013002000)mm
Weight				650Kg	780Kg
Z Axis Trave（mm）				200mm
X/Y/Z-3 axis Linear Scales				Imported Linear Scale Resolution: 0.1um
Guidance Mode				Precision linear guide, double-track double slider guide.
Operation Mode				Joystick controller, Mouse operation, automatic detection program
Load Capacity				＜25Kg
Working Environment				Temperature 20℃±2℃, Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply				AC220V/50Hz; 110V/60Hz
Measuring Software				Geomea
Camera				1’” 20Mpixel B/W Camera
Dual Telecentric Lens				Double Rate Dual Telecentric Lens
Magnification				0.16X	0.64X
Image Measuring	Repeatability		No Moving	±1μm	±0.5μm
			Moving	±2μm	±1.5μm
	Accuracy*		Without Binding	±3.9μm	±2μm
			Binding	±7μm	±4μm
Working distance				145±2mm	145±2mm
Telecentricity				＜0.02°	＜0.02°
Depth of Field				6mm@25 lp/mm	0.6mm@64 lp/mm
Field of View(mm)（DHV		1”		8255100	211425
				534469	131117
		2/3”
Resolution				20um	7.8um
Illumination System		Contour		LED parallel contour illumination
		Surface		0~255 levels continuously adjustable LED illumination

Product Configuration Model Description（Example with A7-IVS-432）:

Product Category	2.5D	3D	2.5D	3D
Commodity	2.5D Instant Vision Measuring	3D Instant Vision Measuring	2.5D Laser-Scan & Instant Vision Measuring	3D Automatic Multisensory Measuring Machine
Model	A7-IVS-432A	A63-IVS-432B	A7-IVS-432C	A7-IVS-432D
Type	A	B	C	D
Significance	Optical Zoom-lens Sensor	Zoom-lens Sensor and Contact Probe Sensor	Zoom-lens Sensor and Lazer Sensor	Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor
Contact Probe	Without	MCP-Kit1	Without	MCP-Kit1
Lazer Module	Without	Without	Omron Lazer	Omron Lazer

Instant Instant Vision Measuring Models and Specifications：

Model	Code#	Model	Code#	Model	Code#	Model	Code#
A7-IVS-432A	503-120H	A7-IVS-542A	503-120J	A7-IVS-652A	503-120K	A7-IVS-862A	503-120L
A7-IVS-432B	503-220H	A7-IVS-542B	503-220J	A7-IVS-652B	503-220K	A7-IVS-862B	503-220L
A7-IVS-432C	503-320H	A7-IVS-542C	503-320J	A7-IVS-652C	503-320K	A7-IVS-862C	503-320L
A7-IVS-432D	503-320H	A7-IVS-542D	503-320J	A7-IVS-652D	503-320K	A7-IVS-862D	503-320L

Instant Instant Vision Measuring Measurement Space Guide Table：

Travel	Model	Accuracy	X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travel mm	Z Axis Maximum Custom Travel mm
300X400X200	A3-IVS-432	3+L/200	400	300	200	400
	A6-IVS-432	2.5+L/200	400	300	200	400
	A7-IVS-432	2+L/200	400	300	200	400
	A7-ITS--432	2+L/200	400	300	200	400
400X500X200	A3-IVS-542	3+L/200	500	400	200	400
	A6-IVS-542	2.5+L/200	500	400	200	400
	A7-IVS-542	2+L/200	500	400	200	400
	A7-ITS--542	2+L/200	500	400	200	400
500X600X200	A3-IVS-652	3+L/200	600	500	200	400
	A6-IVS-652	2.5+L/200	600	500	200	400
	A7-IVS-652	2+L/200	600	500	200	400
	A7-ITS-652	2+L/200	600	500	200	400
600X800X200	A3-IVS-862	3+L/200	800	600	200	400
	A6-IVS-862	2.5+L/200	800	600	200	400
	A7-IVS-862	2+L/200	800	600	200	400
	A7-ITS-862	2+L/200	800	600	200	400

Other travel specifications can be customized according to customer needs.
