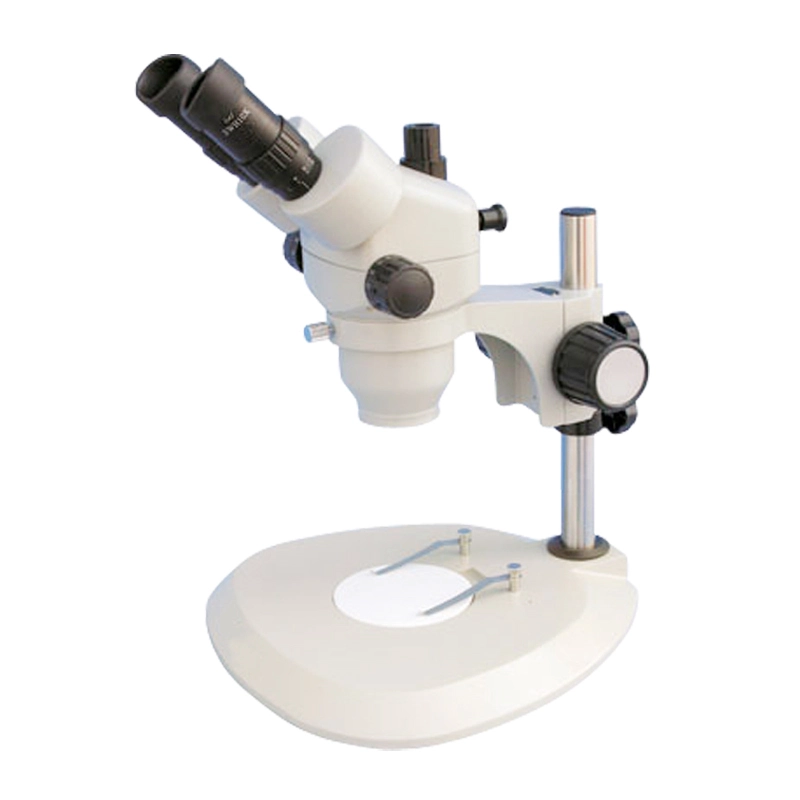

    A5  Zoom Stereo Microscope 2

     With Zoom A5(binocular) and Zoom A5T(trinocular);

     Brand-new optical design, the best reproduction and true color image;

     Kinds of stands and attachments are available;

     Applied to modern biology research, semiconductor and the other science and technology industry field to meet high precision requirement.


    Specification



    ModelBinocular Zoom A5
    Code#411-222
    Objective0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
    Eyepiece

    High eye-point and wide-field eyepiece WF10X/20mm

    Optional WF15X/15mm,WF20X/10mm and object micrometer is available

    Magnification7x~45x,it can extend to 3.5x~180x
    Zoom DriverHorizontal Axial Driver Control Knobs
    Working Distance100mm(effective distance),it can extend to 30mm~165mm
    Microscope Head Binocular Observe Head with 45°incline and 360°rotatable
    Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
    Microscope Holder

    Focus adjustment range 50mm,focusing knobs elasticity adjustable

    Drawtube diameter 76mm

    Microscope StandPillar diameter 32mm and high 240mm
    Black & white working board diameter 95mm
    Auxiliary Objective0.5X/165mm,1.5X/45mm and 2X/30mm optional


    Optical Specification:


    EyepieceMain BodyAuxiliary Objective
    0.5X1X1.5X2X
    0.7x~4.5x(#416-312)(#416-322)(#416-332)(#416-342)
    10XTotal Magnification3.5x~22.5x7x~45x10.5x~67.5x14x~90x
    Field of view57.1~8.9mm28.6~4.4mm19~3mm14.3~2.2mm
    15XTotal Magnification5.25x~33.75x10.5x~67.5x15.75x~101.25x21x~135x
    Field of view43.8~ 6.7mm21.1~3.3mm14.3~2.2mm10.7~1.7mm
    20XTotal Magnification7x~45x14x~90x21x~135x28x~180x
    Field of view28.6~ 4.4mm14.3~2.2mm9.5~1.5mm7.1~1.1mm
    Working Distance(mm)1651004530
