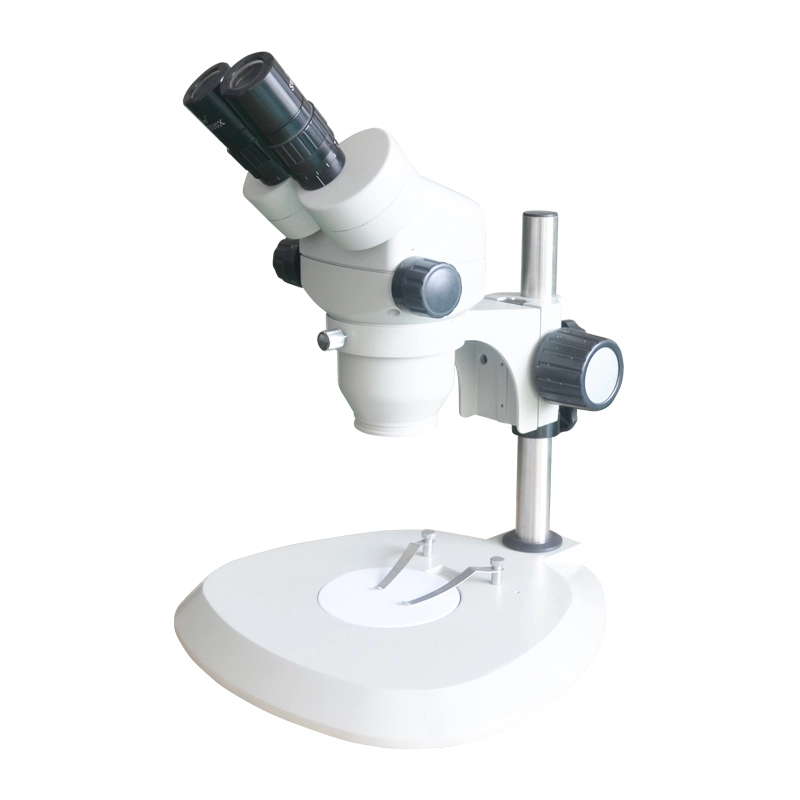

    Turret-type Stereo Microscopes ST-524 2

    Unique optic design;

    With long working distance and field of depth;

    Horizontal zoom knob, easy operation;

    Widely used for medical service, agriculture, geology, electronic precision mechanical industry and department.


    Specification



    ModelST-524
    Code#412x242
    Objective2x/4x
    EyepieceWith high eye point and wide field eyepiece SWH10X
    Zoom DriverHorizontal axial drive control knobs
    Working Distance105mm
    Interpupillary distance adjustment range52mm~76mm
    Diopter Adjustment±6°(left drawtube)
    Focus Range50mm (the square post is 100mm)
    Diameter of the round postΦ25mm
    Distance between from the post center to the main body center140mm
    Measurement to match between the support and the main bodyΦ76mm
    Diameter of the centerworking stageΦ95mm
    IlluminationThe down illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V、10W).
    AccessoriesKinds of stands and holders


    Optical Specification:


    ObjectiveEyepieceWorking Distance
    WF10X/20mmWF15X/15mmWF20X/10mm
    Total MagnificationField of viewTotal MagnificationField of viewTotal MagnificationField of view
    1x10x20mm15x15mm20x10mm100mm
    2x20x10mm30x7.5mm40x5mm100mm
    3x30x7.5mm45x5mm60x3.3mm100mm
    4x40x5mm60x3.3mm80x2.5mm100mm
