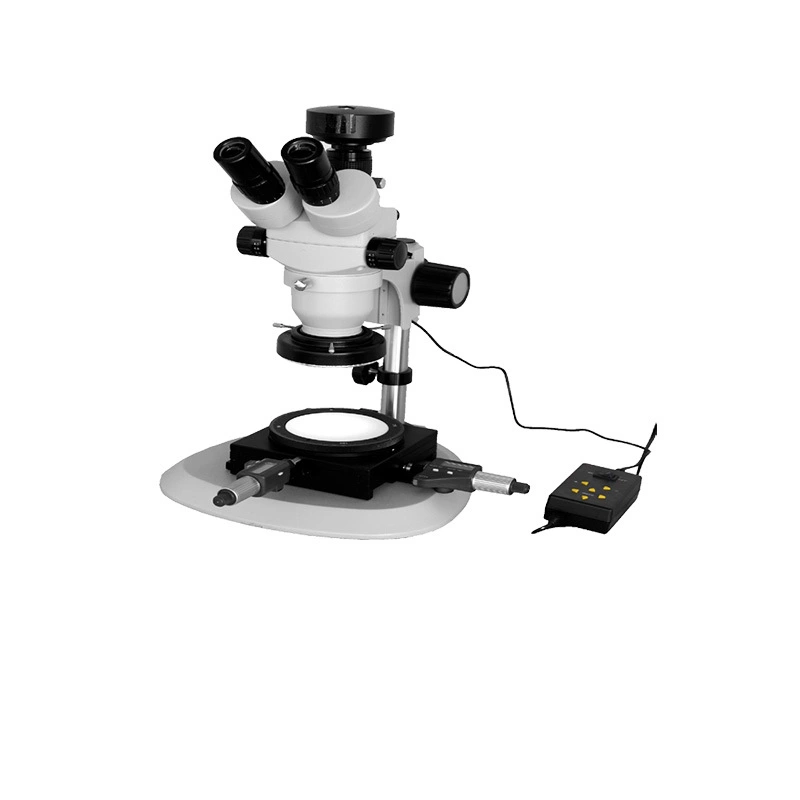

Zoom Stereo Microscope A5T

Model:

Trinocular Zoom A5T

Code#:

411-232

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Zoom Stereo Microscope A5T 2

Application:

◆ Metals

◆ Semiconductors-Glass Zoom Stereo Microscope A5T 3

◆ Minerals

◆ Composites

◆ Soft Metals

◆ Plastics

◆ Pefractory Metals-General metals

◆ Geramics

Product Feature

◆ With excellent optical design for enhancing reproduction and true color imaging of the specimen.

◆ With a zoom magnif cation range of 7X to approximately 45X and is deal for low magnif cation documentation of the metallographic specimens prior to polishing and grinding;

◆ It is also useful for measuring cracks, weld penetration depth and other topographical features.

Specification

Model	Trinocular Zoom A5T
Code#	411-232
Objective	0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
Eyepiece	High eye-point and wide-field eyepiece WF10X/20mm Optional WF15X/15mm,WF20X/10mm and object micrometer is available
Magnification	7x~45x, it can extend to 3.5x~180x
Zoom Driver	Horizontal Axial Driver Control Knobs
Working Distance	100mm(effective distance),it can extend to 30mm~165mm
Microscope Head	Binocular Observe Head with 45°incline and 360°rotatable
Microscope Head	Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
Microscope Holder	Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm
Microscope Stand	Pillar diameter 32mm and high 240mm
Microscope Stand	Black & white working board diameter 95mm
Auxiliary Objective	0.5X/165mm,1.5X/45mm and 2X/30mm optional

Optical Specification

Eyepiece	Main Body	Auxiliary Objective
	Main Body	0.5X	1X	1.5X	2X
	0.7x~4.5x	(#416-312)	(#416-322)	(#416-332)	(#416-342)
10X Std	Total Magnification	3.5x~22.5x	7x~45x	10.5x~67.5x	14x~90x
10X Std	Field of view	57.1~8.9mm	28.6~4.4mm	19~3mm	14.3~2.2mm
15X Opt	Total Magnification	5.25x~33.75x	10.5x~67.5x	15.75x~101.25x	21x~135x
15X Opt	Field of view	43.8~ 6.7mm	21.1~3.3mm	14.3~2.2mm	10.7~1.7mm
20X Opt	Total Magnification	7x~45x	14x~90x	21x~135x	28x~180x
20X Opt	Field of view	28.6~ 4.4mm	14.3~2.2mm	9.5~1.5mm	7.1~1.1mm
Working Distance(mm)		165	100	45	30

Zoom Stereo Microscope A5T 4

Optional Accessories

Description	Specification
Stereo Eyepieces	SWH10X/23mm eyepiece SWH15X/17mm eyepiece SWH20X/14mm eyepiece


Eyepieces with micrometer(with Divisions)	SWH10XD/23mm eyepiece with division
	SWH15XD/17mm eyepiece with divisions
	SWH20XD/14mm eyepiece with divisions
Auxiliary Objective	0.37X magnifying objective
	0.5X magnifying objective
	0.7X magnifying objective
	1.5X magnifying objective
	2X magnifying objective
Camera Adapter	Camera Adapter 0.5X
	Camera Adapter 1X
Digital USB Camera	200MPixel/500MPixel
Light sources	4-Division LED Light source
	Fiber optic light source (150 W)
Mechanical Stage	Mechanical stage with digital X-Y micrometer

Universal Stand	US1, US2, US3, US4
