approved vickers hardness test inquire now for small parts

Company Advantages
1. vickers hardness test are produced by digital hardness tester machine. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
2. Our team has rich experience in manufacturing vickers hardness test , independent research and software & hardware development. The product is well used in many large engineering projects
3. A strict quality check system has been built to ensure its quality. The product is analyzed and tested cautiously before packing
4. The product shows the superiority of great performance compared with other products. Innovation is always made to update the product

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Just aim the dialog line, then it will automatically reading the length and display hardness value

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

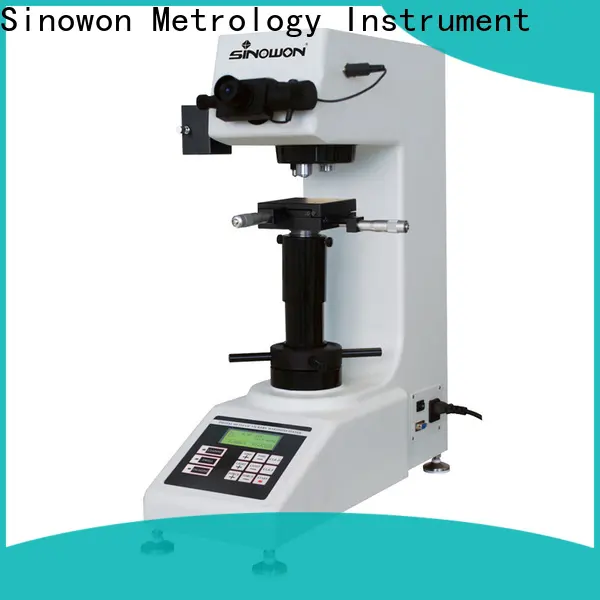

Product Name		Digital Vickers hardness tester
Model		SV-5	SV-10	SV-30	SV-50
Code#		821-101S	821-111S	821-121S	821-131S
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. owns a team of professional R&D group and skilled technicians.
2. We believe that sustainable manufacturing is efficient manufacturing. The computerized production lines we use cut costs and energy usage by ensuring that power is used only when it is needed.
